LD 40cm Signs 6V DC

LD-40F2TX-REH

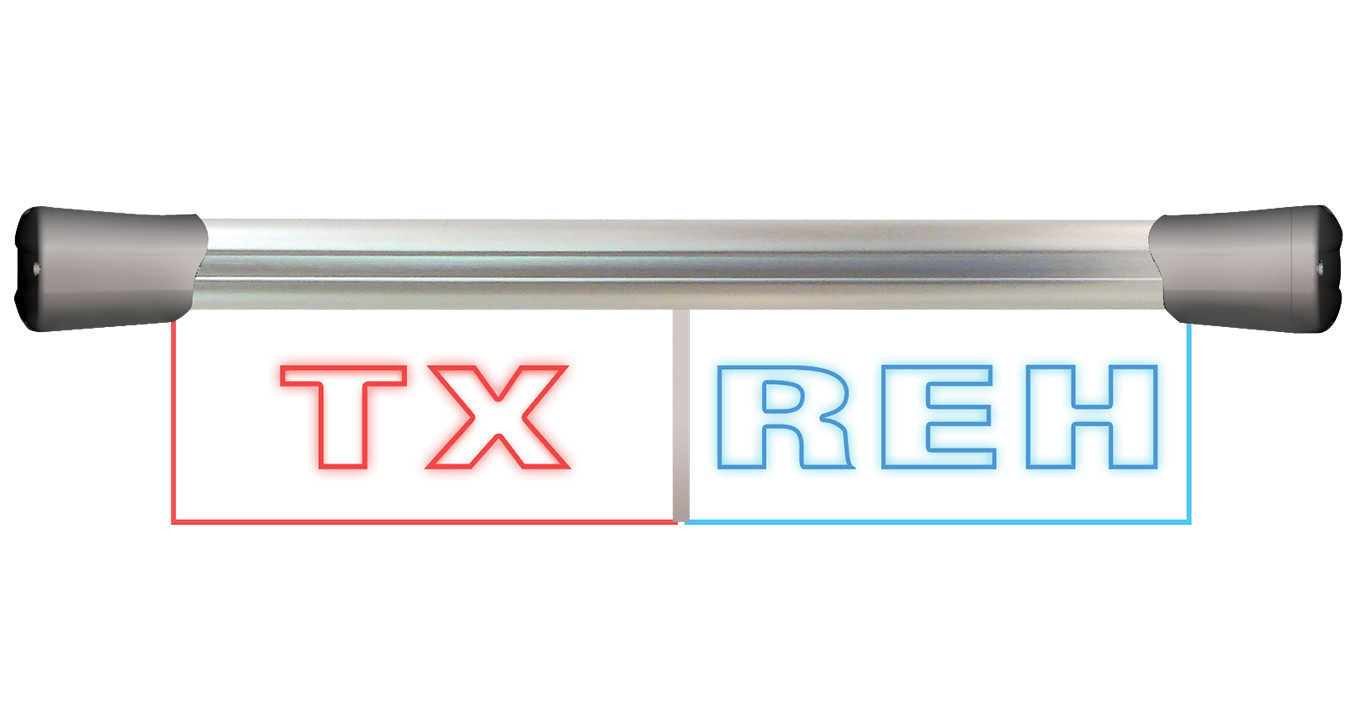

Twin ‘TX’ & ‘ REH’ sign

Twin ‘TX’ & ‘ REH’ sign

Lowenergy_logo-optimized

About LD-40F2TX-REH

The SignalLED range of illuminated RGB LED signs are a new range of signs designed for outside recording, on-air & production studios, meeting rooms, conference rooms and for fixed installations. The sign itself contains the control electronics, and RGB LEDs are used, so the signs can be simply configured onsite for your particular requirements.

Typical Applications

MIC LIVE, ON-AIR, PHONE and RECORD signs for radio/TV studios, TX-REH for production galleries, DOOR, NO ENTRY and EXIT for doorways, MEETING IN PROGRESS and INTERVIEW IN PROGRESS for board rooms, SILENCE PLEASE outside lecture theatres.

Product Data

Technical Specifications

Physical Specification
Power Input:
5-7V DC
40cm Sign:
500mA max
Input Connector:
4 way screw terminal block
Control Inputs:
2 x pull-down to 0V
Perspex Sign Dimensions:
Double: 20cm (W) x 8cm (H)
