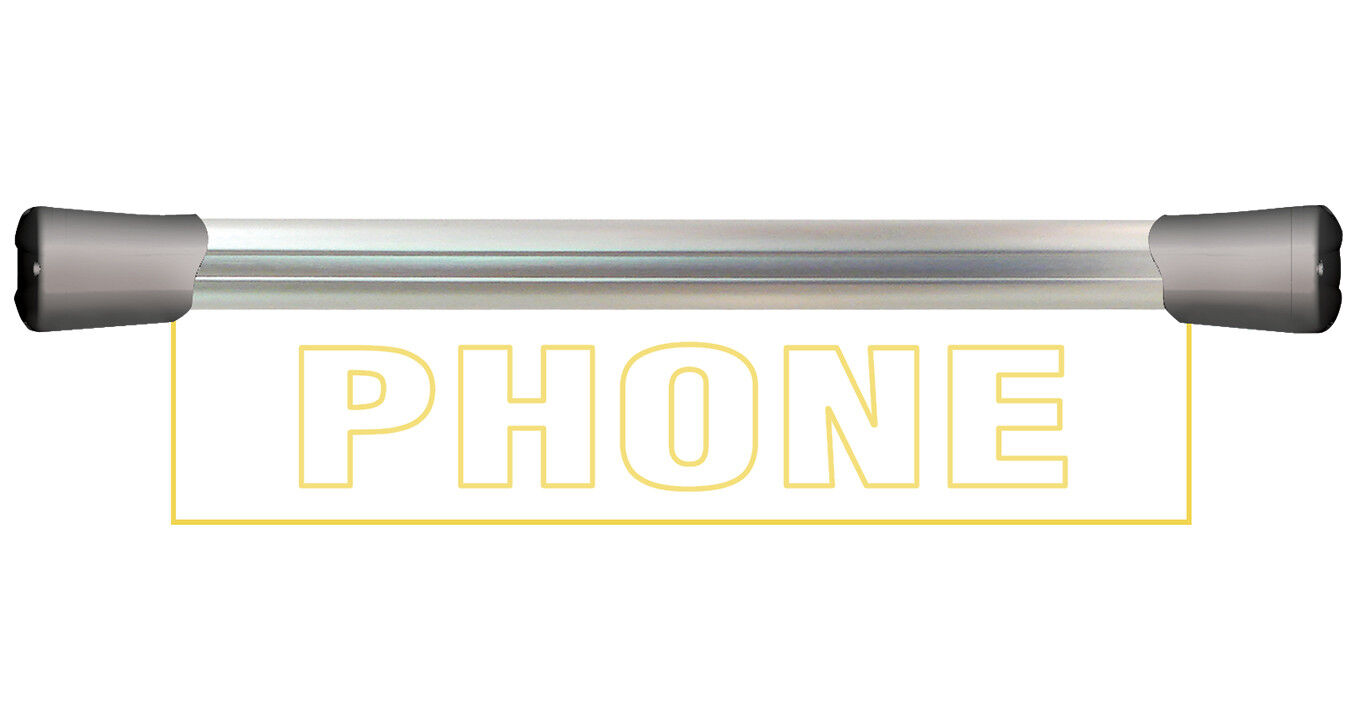

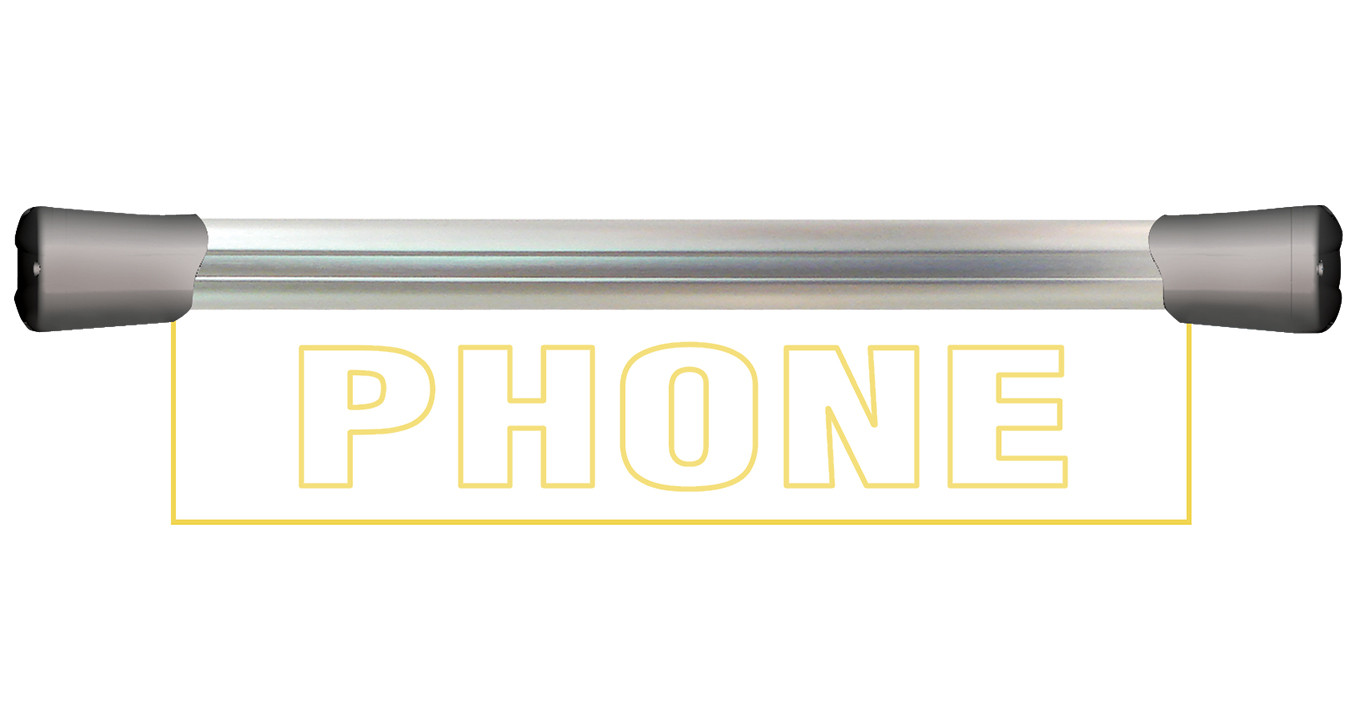

LD-40F1PHN
Single Flush Mounting 40cm ‘PHONE’ Sign
Single Flush Mounting 40cm ‘PHONE’ Sign
LD-40F1PHN
Single Flush Mounting 40cm ‘PHONE’ Sign
The SignalLED range of illuminated RGB LED signs are a new range of signs designed for outside recording, on-air & production studios, meeting rooms, conference rooms and for fixed installations. The sign itself contains the control electronics, and RGB LEDs are used, so the signs can be simply configured onsite for your particular requirements.
Product Features
Low power consumption, only 4W.
Maintenance free, LED lighting.
Multi-coloured RGB LEDs offering 9 different colours.
Sign can be made to flash, pulse, fade and be on or off.
Flush-mounting as standard or end/ceiling-mounting with kits.
20cm (8") or 40cm (16") widths or 2 x 20cm (2 x 8").
Standard wording includes: MIC LIVE, ON AIR, RECORD, PHONE, TX, REH, REHEARSAL, DOOR, NO ENTRY, EXIT, SILENCE PLEASE, MEETING IN PROGRESS, INTERVIEW IN PROGRESS.
Custom signs can be etched with company logos, different wording or graphics.
2 x GPIs for control from a light switch, or fader GPO (pull down to 0V).
Supplied as standard as red/green switching.
Use separate remote control (LD-RPC) to program the colour, switching mode or brightness.
Supplied complete with fixings & DC power supply.
Typical Applications
Product Category
LD 20cm Signs 6V DCTECHNICAL SPECIFICATIONS
Physical Specification | |
|---|---|
| Power Input: | 5-7V DC |
| 40cm Sign: | 500mA max |
| Input Connector: | 4 way screw terminal block |
| Control Inputs: | 2 x pull-down to 0V |
| Perspex Sign Dimensions: | Single: 40cm (W) x 8cm (H) |
