Telephone Hybrids

HY-03T

Twin Automatic Analogue TBU, Rack Mounted

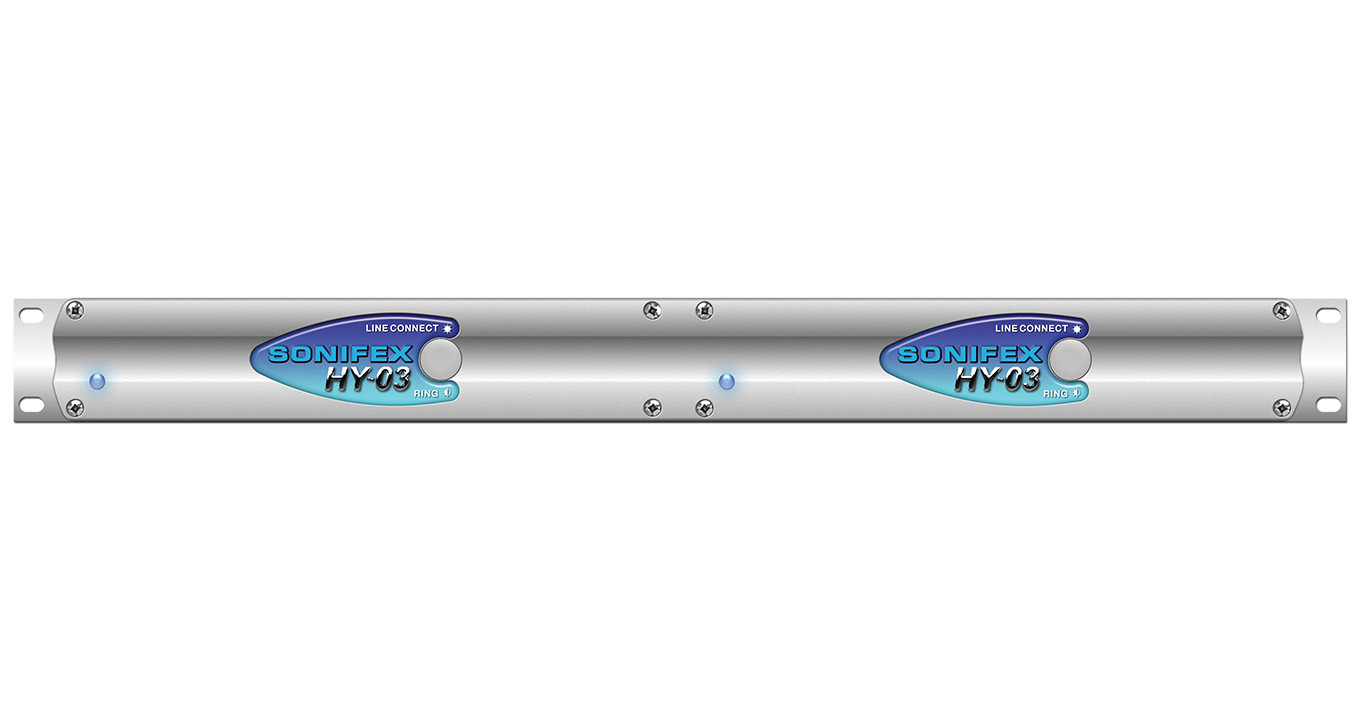

The HY-03T is a twin automatic analogue TBU, 19″ (48.3cm) rack-mount unit.

About HY-03T

The HY-03T is a twin 19″ rack-mount version of the HY-03 unit. The analogue HY-03 telephone hybrid is the replacement for the HY-02, which for many years has set the standard as an excellent value, high quality telephone hybrid. The HY-03 retains many of the features of the HY-02 and adds some additional ones. Some of the features of the HY-03 include :

  • Fully automatic – adapts to varying line conditions and has automatic signal limiting.

  • Local and remote line hold switching – calls can be remotely switched through a mixing console.

  • Momentary or permanent latching remotes can be enabled.

  • Balanced mic/line input – 10k ohm balanced input selectable for 0dBu clean feed line, or microphone level with adjustable gain.

  • Balanced output – 0dBu low impedance balanced output, with output gain adjustment.

  • Mixed output – the output can be a mix of the caller and mic/line input signals for recording both sides of the telephone conversation.

  • Integrated ring detector – automatic call answering after a pre-determined number of rings.

  • Fitted with K-break disconnect detection as standard with an option for dial-tone disconnect using the optional HY-03DTD board. The HY-03DTD board can be configured to disconnect on recognizing the dial tone used in a specific country.

  • Line limiter, bandpass filter and output noise gate with preset threshold providing low distortion crystal clear audio.

  • 28dB typical line balance rejection.

  • Built in power supply with switchable 115V, or 230V, mains input.

  • BABT approval compliant with European PTT specifications.

Typical Applications

Radio & TV station talk shows, telephony interface to the mixer.

Product Data

Technical Specifications

Audio Specification
Input Impedance - Line Mode (Clean Feed):
10kΩ balanced 0dB
Input Impedance - Microphone Mode:
200Ω balanced
Clean Feed Limiting Input:
+4dBu
Microphone Level Range:
From 74dB to 40dB adjusted by preset pot
Bandwidth to Telephone Line:
250Hz - 4kHz, -3dB ref 1kHz
Telephone Line Impedance:
Nominally 600Ω
Telephone Line Impedance Range:
300Ω to 1500Ω
Output Impedance:
50Ω balanced floating 0dBu
Output Level Range:
+8dB to -14dB adjusted by preset pot
Rejection Ratio:
45dB on 1kHz tone, typically 28dB on complex waveforms, reference peak level of 0dB
Ring Detector Sensitivity:
1 ring to 6 rings
Power:
230V 50Hz, or 115V 60Hz. 6W for HY-03.
Connections
Mic/Line Input:
XLR 3 pin female with push button mic/line selection
Line Output:
XLR 3 pin male
Telephone Line:
RJ11 6/4 socket
Telephone Handset/Instrument:
RJ11 6/4 socket
Remotes:
9-way D-type socket
Power:
IEC mains (CEE22)
Each unit is supplied with 1 x RJ11 to RJ11 telephone line lead, 1 x RJ11 to BT plug telephone line lead, 1 x BT handset socket to RJ11 plug adapter, IEC mains lead fitted with moulded mains plug, handbook and warranty card.
Equipment Type
HY-03T
Twin automatic analogue TBU, 19" Rack Mounted
Physical Specification
Dimensions: (Raw)
48.3cm (W) x 17.5cm (D) x 4.5cm (H)
Dimensions: (Raw)
19” (W) x 7.0” (D) x 1.8” (H)
Dimensions (Boxed):
58.8cm (W) x 27cm (D) x 6.8cm (H)
Dimensions (Boxed):
23” (W) x 10.6” (D) x 2.7” (H)
Weight:
Nett: 2.60kg Gross: 4.0kg
Weight:
Nett: 5.7lbs Gross: 8.8lbs
*Depth is measured from the front to the end of the connectors fitted to the back of the unit. Note: If you are ordering the HY-03 for use in the USA, add the word “US” after the product code. If you are using the HY-03 with the Broadcast Bionics PhoneBox system, then add the word ”BB” after the product code. The HY-03 uses different circuitry for these systems.
Accessories
HY-03DTD
Dial tone detect add-on board
