AVN-TB10AR

10 Button Advanced Talkback Intercom, AoIP Portal

The AVN-TB10AR is a 10 ‘station’ intercom using AES67 AoIP for communication. Our range of AVN (Audio/Video/Network) talkback/listening/paging intercoms aid communication between studios, stages, theatres, offices and different areas in a facility or building complex.

WEB_logo-optimized Studiohub_logo-optimized AES67_logo-optimized Ravenna_logo-optimized Ember_logo-optimized

About AVN-TB10AR

The AVN-TB products are IP audio based talkback intercom units with an advanced feature set, allowing them to be used in multiple applications. With both 4-wire analogue inputs and outputs, as well as AoIP network audio connectivity, the AVN-TB units can be used with existing legacy 4-wire systems and with new AES67 AoIP networked audio infrastructure. Additionally, all audio is at 48kHz sample rate, meaning that it’s broadcast quality audio as standard.

RAVENNA (of which AES67 is a subset) allows for the distribution of audio across a network. The AVN range use RAVENNA as the communication method providing compatibility with other AES67 systems.

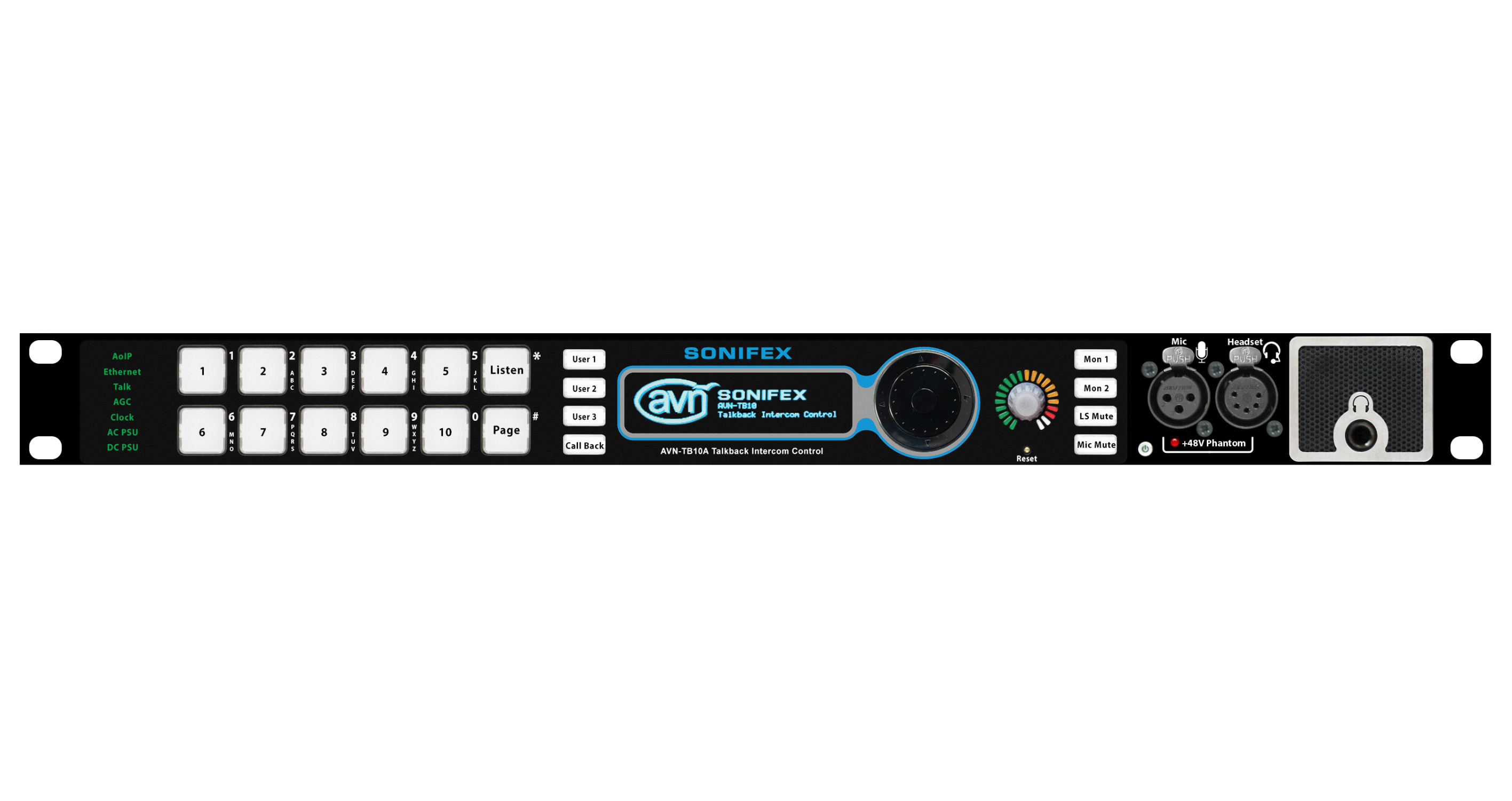

The AVN-TB10AR is a 10 button intercom meaning that 10 other ‘stations’ can be defined, one per button, for communication. Comms can be made as a Talk action, a Listen action or a duplex Talk/Listen action to/from each station. Coloured LEDs in the buttons help to show which action is being used and there is also a Callback button for when you’re unavailable to receive a call.

The stations can be from anywhere on the AoIP network and the use of Bonjour Device Discovery means that other stations can be found quickly and sometimes automatically.

The Page button is used to speak to all stations (or a defined list of stations) and Group Talk functions can be enabled to page particular groups of stations.

Two monitor buttons allow for routing audio directly to the speaker e.g. to take an IFB feed or an off-air transmission signal. Signals can be ducked or mixed when a talkback input is received to the speakers or headphones.

Three user defined buttons can be programmed for different functions, such as for Group Talk.

The speaker mutes automatically when headphones are inserted and the volume level of headphones, speaker and incoming sources can all be controlled with one front panel rotary encoder volume control knob, which shows the level using RGB LEDs around the outside of the knob.

Advanced acoustic echo cancellation & built-in microphone AGC (automatic gain control) ensure that there’s no acoustic feedback between microphone and speaker.

Buttons are available for microphone mute (cough) and speaker mute actions and these can be controlled remotely by GPI or network commands.

Each unit has a built-in webserver which is where the majority of settings and configurations are made. The front panel OLED display can also be used to configure the unit, although more functionality is available by using the webserver. The webserver is a responsive design meaning that it can be used with small screens on smartphones and tablets.

The unit can act as a PTP masterclock or slave clock and supports IEEE1588-2008 PTPv2 media and default profiles.

Front panel LEDs show the AoIP network status, synchronisation status, whether AGC is being used and the status of the AC and DC power supply inputs. The brightness of the OLED display and LED indicators can be adjusted for low or high lighting conditions.

The unit has a front panel power button and dual power connectors – an IEC mains input and a 12V DC input, which allows the AVN-TB10AR to be used for both studio and mobile installations. Also, a secondary power source reduces the effect of power down events. In any case, the unit monitors the status of both power sources and displays this on the front panel.

10 GPIOs (general purpose inputs/outputs) and a programmable relay output can be configured to indicate critical states for the unit, via the 15 way D-type connector, for example, to show loss of DC power, or to show a button press action.

Webserver Software

Each AVN-TB talkback unit has a built-in webserver for setup and configuration. The webserver is responsive, and resizes depending on the size of your screen, meaning that it can be used on large monitors or small handheld devices such as smart-phones. Help information is shown on the right hand side of the screen so it’s a good place to go to find out how the unit operates.

Typical Applications

OB truck comms, theatre comms, inter-studio comms in a TV or radio station.

Product Data

Technical Specifications

Audio-Over-IP Specification
Open Standards:
RAVENNA, AES67
Device Discovery:
Bonjour (mDNS / DNS-SD)
Audio Delivery:
RTP/UDP over IPv4 multicast
QoS:
DiffServ
Stream Management:
RTSP/SDP
Control:
Ember+/webserver
Format:
Linear PCM 24-bit (L24)
Channels Per Stream:
2
Frames Per Packet:
48
Maximum Streams:
RX 6, TX 5 (fixed)
Sample Rate:
48 kHz
Timing Synchronisation
Profile Support:
Default, media & custom profiles
Timing Protocol:
PTPv2, IEEE1588-2008
Technical Specification
Microphone and Headset Input
Input Impedance:
>2.5kΩ balanced
Gain Range:
0dB to +60dB
0dBFS Line-Up:
Adjustable in steps of 3dB from -58dBu to +2dBu
Frequency Response:
20Hz to 20kHz, +0/-0.2dB
Noise:
-127dBu, 20kHz BW, Rs=200Ω ref. 76dB gain
Unbalanced Line Inputs
Input Impedance:
>20kΩ
0dBFS Line-Up:
+12dBu
Frequency Response:
20Hz to 20kHz, +0/-0.2dB
THD+N:
<-97dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise:
-100dBFS, 20kHz BW, Rs=200Ω
Crosstalk:
<-97dB
Balanced Line Inputs
Input Impedance:
>20kΩ balanced
0dBFS Line-Up:
Adjustable +15/+18/+20/+22/ +24dBu
Frequency Response:
20Hz to 20kHz, +0/-0.2dB
THD+N:
<-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise:
-110dBFS, 20kHz BW, Rs=200Ω
Crosstalk:
<-100dB
Common Mode Rejection:
>70dB @ 1kHz
Headphone Output
Output Impedance:
Drives 150mW into 32Ω to 600Ω headphones
0dBFS Line-Up:
+20dBu
Frequency Response:
20Hz to 20kHz, +0/-0.2dB
THD+N:
<-108dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise:
-110dBFS, 20kHz BW
Unbalanced Line Outputs
Output Impedance:
<50Ω
0dBFS Line-Up:
+12dBu
Frequency Response:
20Hz to 20kHz, +0/-0.2dB
THD+N:
<-95dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise:
-100dBFS, 20kHz BW
Balanced Line Outputs
Output Impedance:
<50Ω balanced
0dBFS Line-Up:
Adjustable +15/+18/+20/+22/ +24dBu
Frequency Response:
20Hz to 20kHz, +0/-0.2dB
THD+N:
<-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise:
-110dBFS, 20kHz BW, Rs=200Ω
Loudspeaker
Power Output:
4W
Volume:
Mute to full volume via front panel control

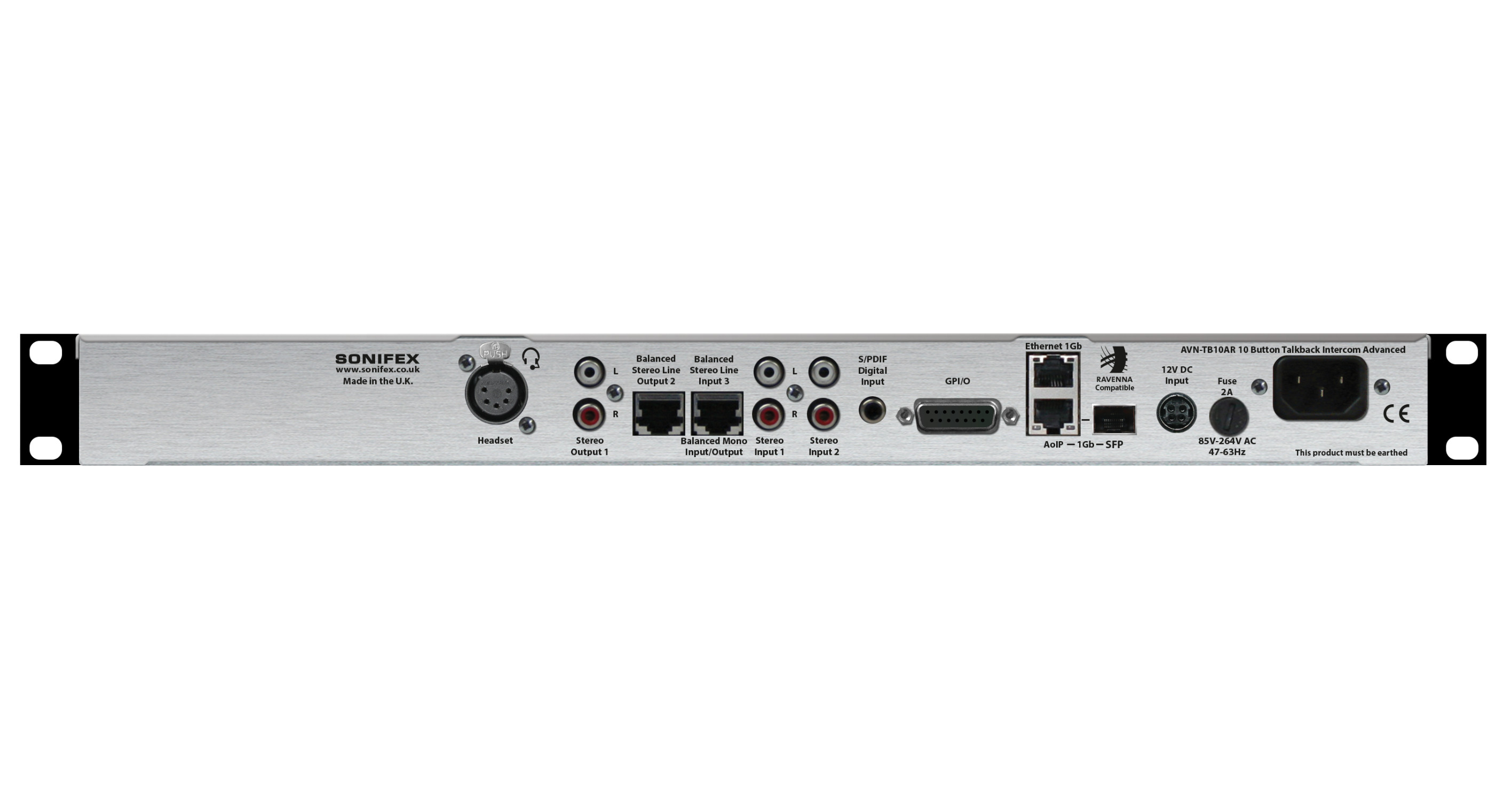

Connections
Microphone:
XLR-3 pin female (electronically balanced)
Headphone:
¼ inch (6.35mm) stereo jack socket
Headset:
2 x XLR-5 pin female (front/rear electronically balanced input)
Audio Inputs:
2 x unbalanced stereo, RCA phono
Audio Inputs:
1 x S/PDIF, RCA phono
Audio Outputs:
1 x balanced stereo, RJ45
Audio Outputs:
1 x unbalanced stereo, 2 x RCA phono
Audio Outputs:
1 x loudspeaker output
Audio Input/Output:
1 x balanced stereo input or mono input/output, RJ45
GPIO:
15-way ‘D’-type socket
Network:
2 x gigabit Ethernet, RJ45
Network:
1 x SFP fibre
Mains AC Input:
Universal filtered IEC, continuously rated 85-264VAC, 47-63Hz, 20W
DC Input:
4 pin 7.5A power jack socket, 9.5-14VDC
Fuse Rating:
Anti-surge fuse 2A 20mm x 5mm
Equipment Type
AVN-TB10AR
10 channel rackmount talkback intercom control unit with RAVENNA AoIP
Physical Specification
Dimensions: (Raw)
48.3cm (W) x 17.5cm (D) x 4.4cm (H)(1U)
Dimensions: (Raw)
19” (W) x 6.9” (D) x 1.8” (H) (1U)
Dimensions (Boxed):
59cm (W) x 28cm (D) x 11cm (H)
Dimensions (Boxed):
23” (W) x 11” (D) x 4.3” (H)
Weight:
Nett: 2.4kg   Gross: 3.1kg
Weight:
Nett: 5.3lbs  Gross: 6.8lbs
Accessories
AVN-DC150
150W DC power supply with KPJX-4S plug
CM-GM2:
Professional Gooseneck Condenser Microphone
