AVN-HD1

Digital Headphone Amp for AVN-PD8/D Portal

The AVN-HD1 headphone amplifier can be combined with AVN-PD8/D to provide a multiple headphone distribution system – the portal output connections can supply analogue power to satellite headphone amplifiers.

Studiohub_logo-optimized

About AVN-HD1

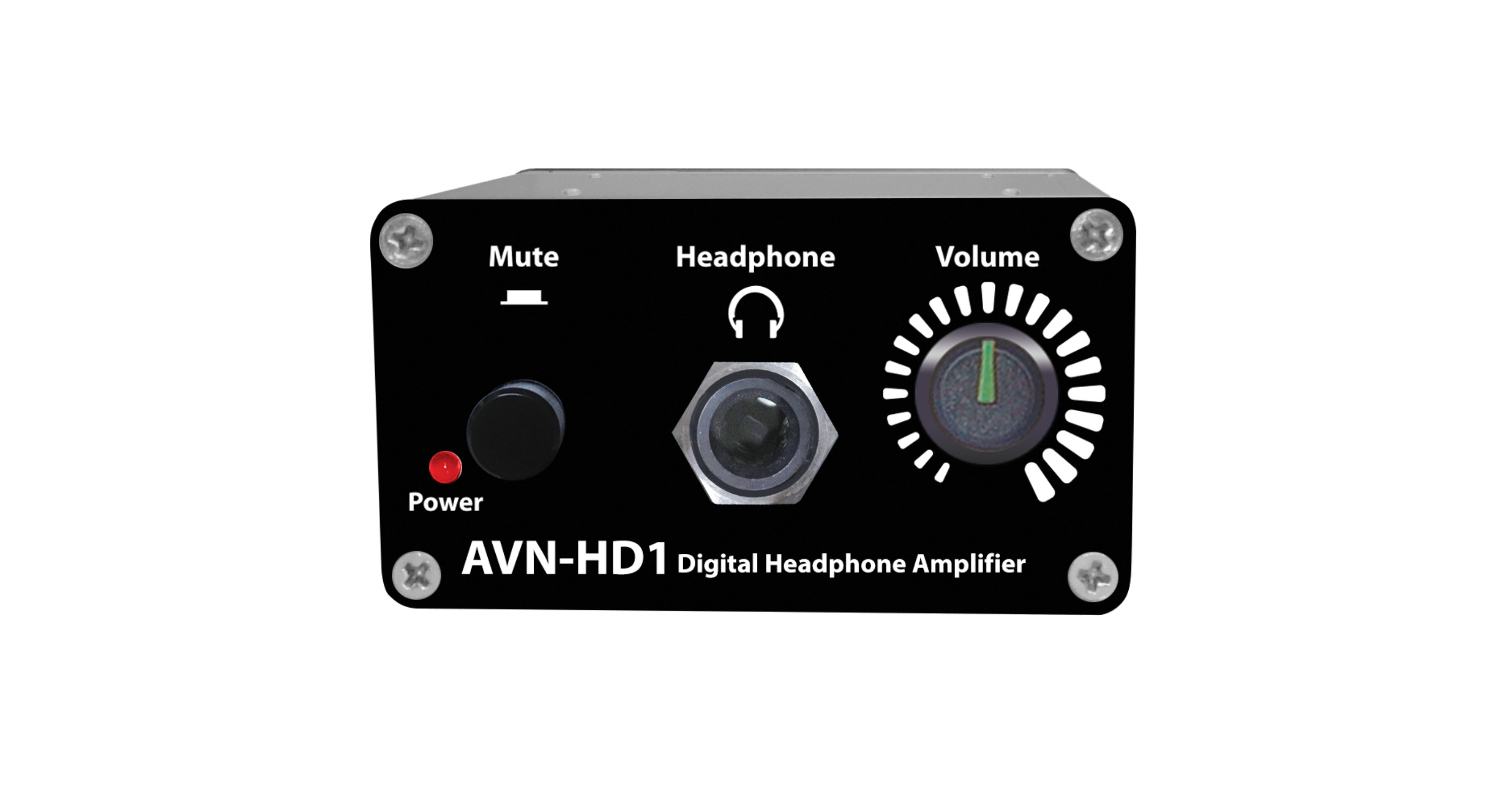

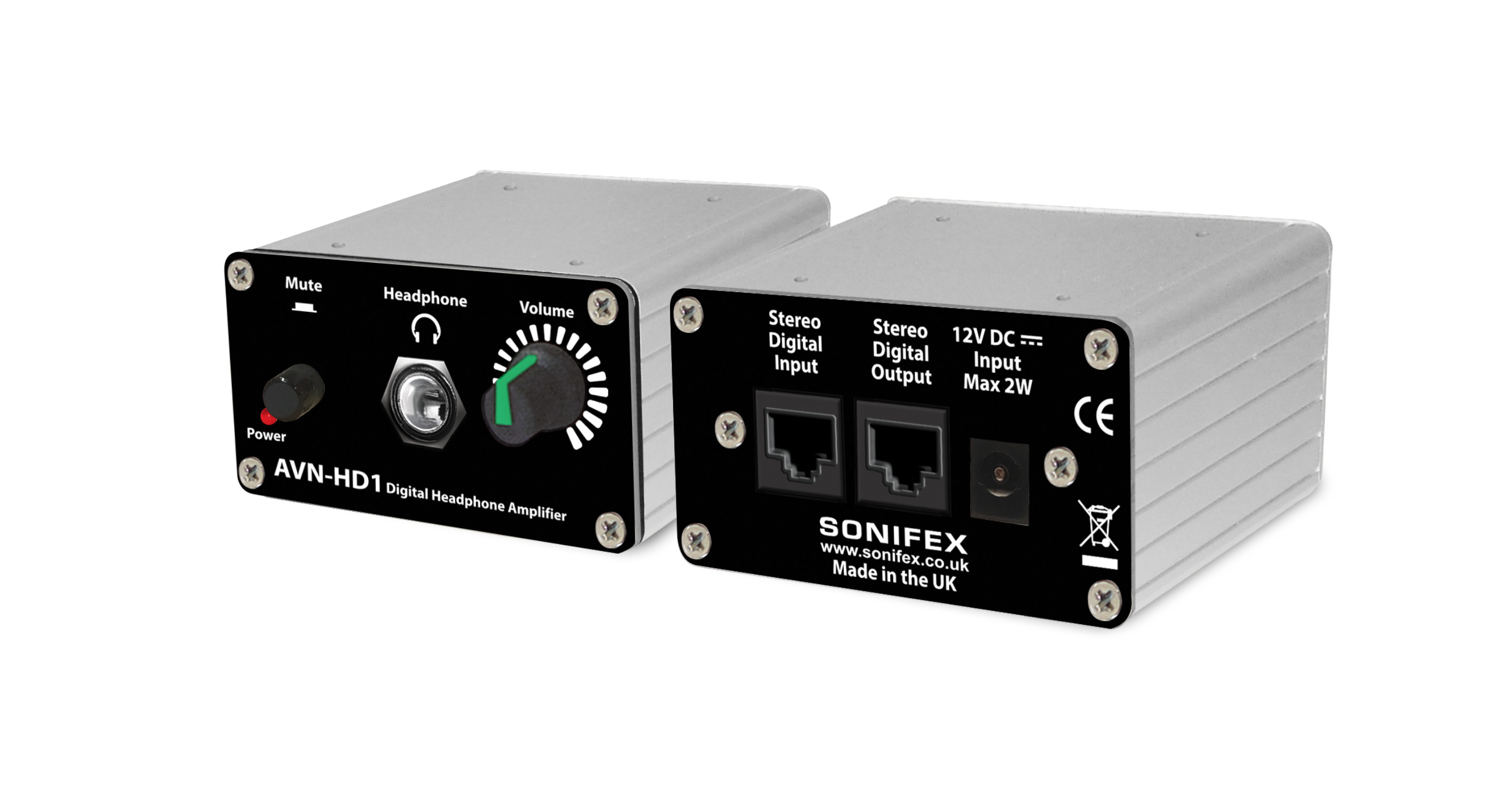

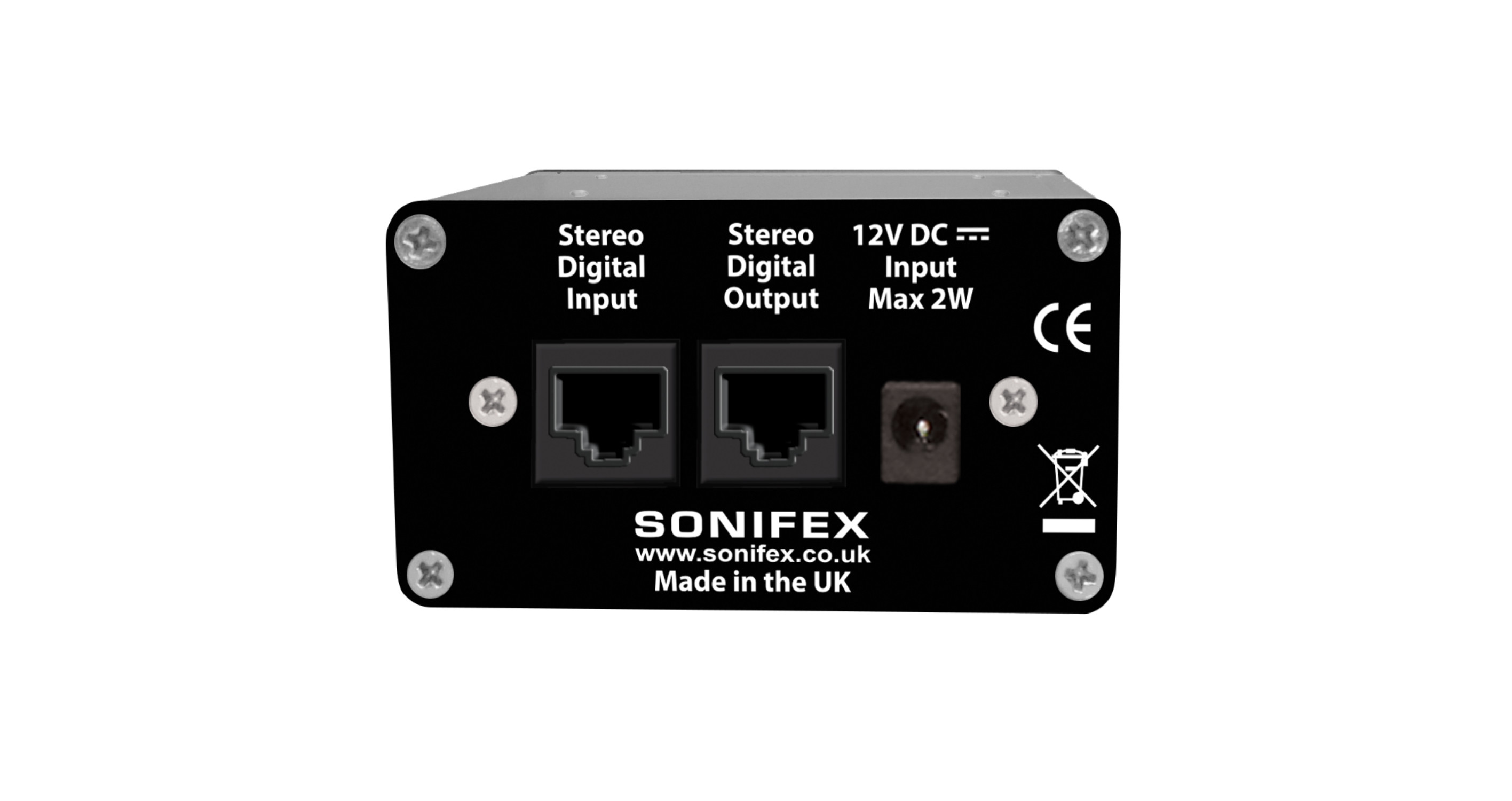

The AVN-HD1 is an AES3 digital headphone amplifier, taking an AES3 audio feed from the AVN-PD8/D portals and providing 8 separate headphone outputs. Each of which can receive a distinct feed mixed from any physical or stream input. It can be used independently of the portals by using the separate DC input for power and a separate AES3 audio input. The unit can be mounted using the CM-MNT1 desk mount panel.

Typical Applications

Headphone distribution system where individual mixes can be created in the AVN-PD8 portal and sent to up to 8 x AVN-HD1 units, each with individual volume controls. Ideal for a radio or talk studio, a voice-over booth, or a news studio in radio or TV.

Product Data

Technical Specifications

Parameter
Output Impedance:
Drives 150mW into 32Ω to 600Ω headphones
D to A Line-up:
-6dBFS = +18dBu
Frequency Response:
20Hz to 20kHz, +0/-0.2dB
THD+N:
<-90dBu, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise:
-92dBu, A weighted
Crosstalk:
-90dB, 1kHz, +14dBFS
Cable:
Cat5/Cat5e/Cat6, Maximum length of 20m between Portal and AVN-HD1 if no external PSU is used
Equipment Type
AVN-HD1:
Digital Headphone Amp for AVN-PD8/D Portal
Physical Specification
Dimensions: (Raw)
7.7cm (W) x 8.3cm (D) x 4.2cm (H)
Dimensions: (Raw)
3.0” (W) x 3.3” (D) x 1.7” (H)
Dimensions (Boxed):
12.7cm (W) x 22.9cm (D) x 7.6cm (H)
Dimensions (Boxed):
5” (W) x 9” (D) x 3” (H)
Weight:
Nett: 0.22kg Gross: 0.33kg
Weight:
Nett: 0.49lbs Gross: 0.73lbs
