AVN-HA1
Analogue Headphone Amp for AVN-PA8/D & AVN-PM8/D Portals
The AVN-HA1 headphone amplifier can be combined with AVN-PA8/D and the AVN-PM8/D Portals to provide a multiple headphone distribution system – the portal output connections can supply analogue power to satellite headphone amplifiers.
AVN-HA1
Analogue Headphone Amp for AVN-PA8/D & AVN-PM8/D Portals
The AVN-HA1 headphone amplifiers can be combined with the Sonifex AVN-PA8/D and AVN-PM8/D to provide 8 separate headphone signals. Each of which can receive a distinct feed mixed from any physical or stream input.
It can be used independently of the portals by using the separate DC input for power and a separate analogue input. The unit can be mounted using the CM-MNT1 desk mount panel.
Product Features

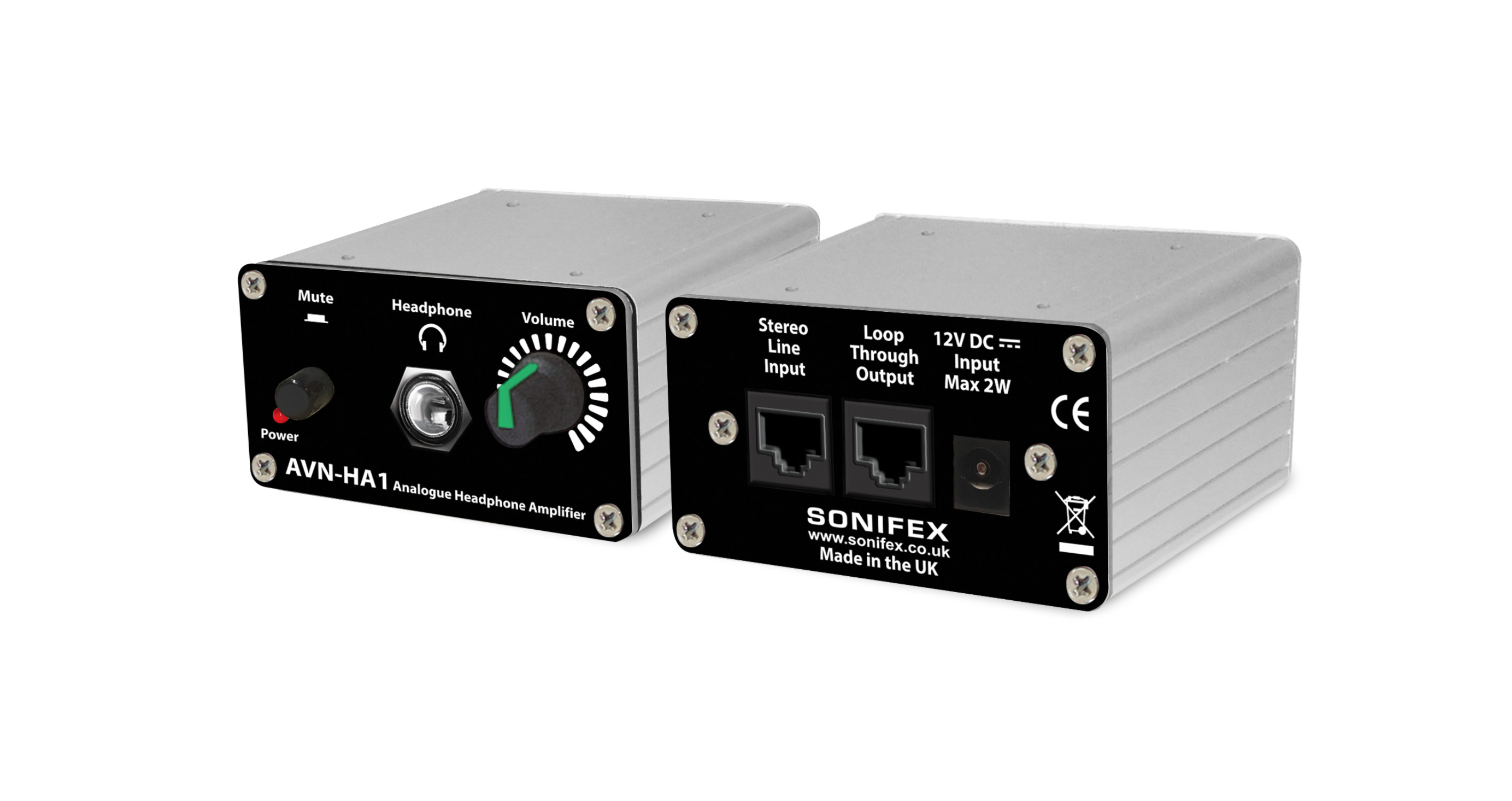

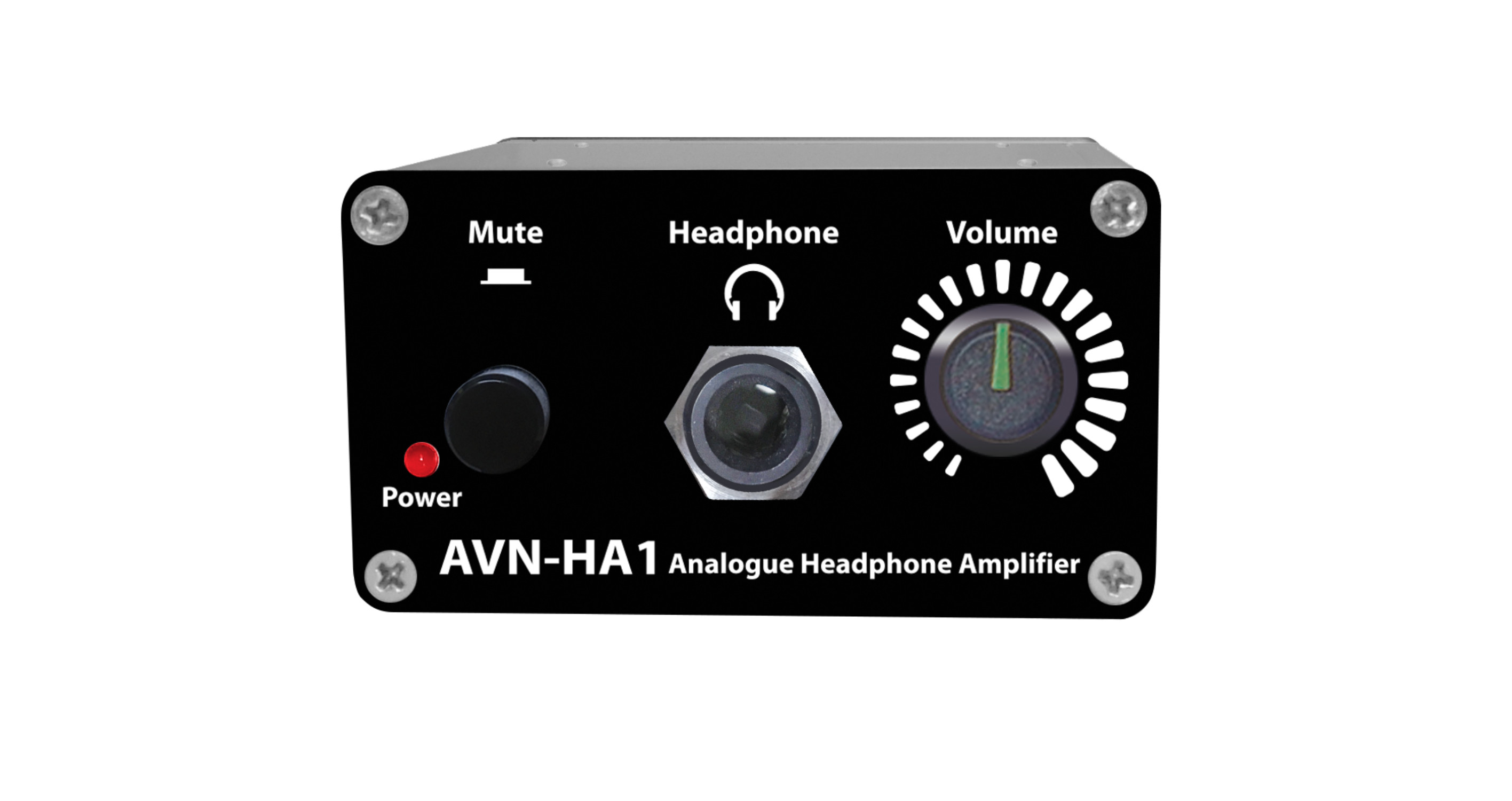

Front panel 6.35mm (1/4”) headphone socket and volume control knob, with mute/GPO push button.
Locking DC power connector if a portal is not being used to supply the unit with power.

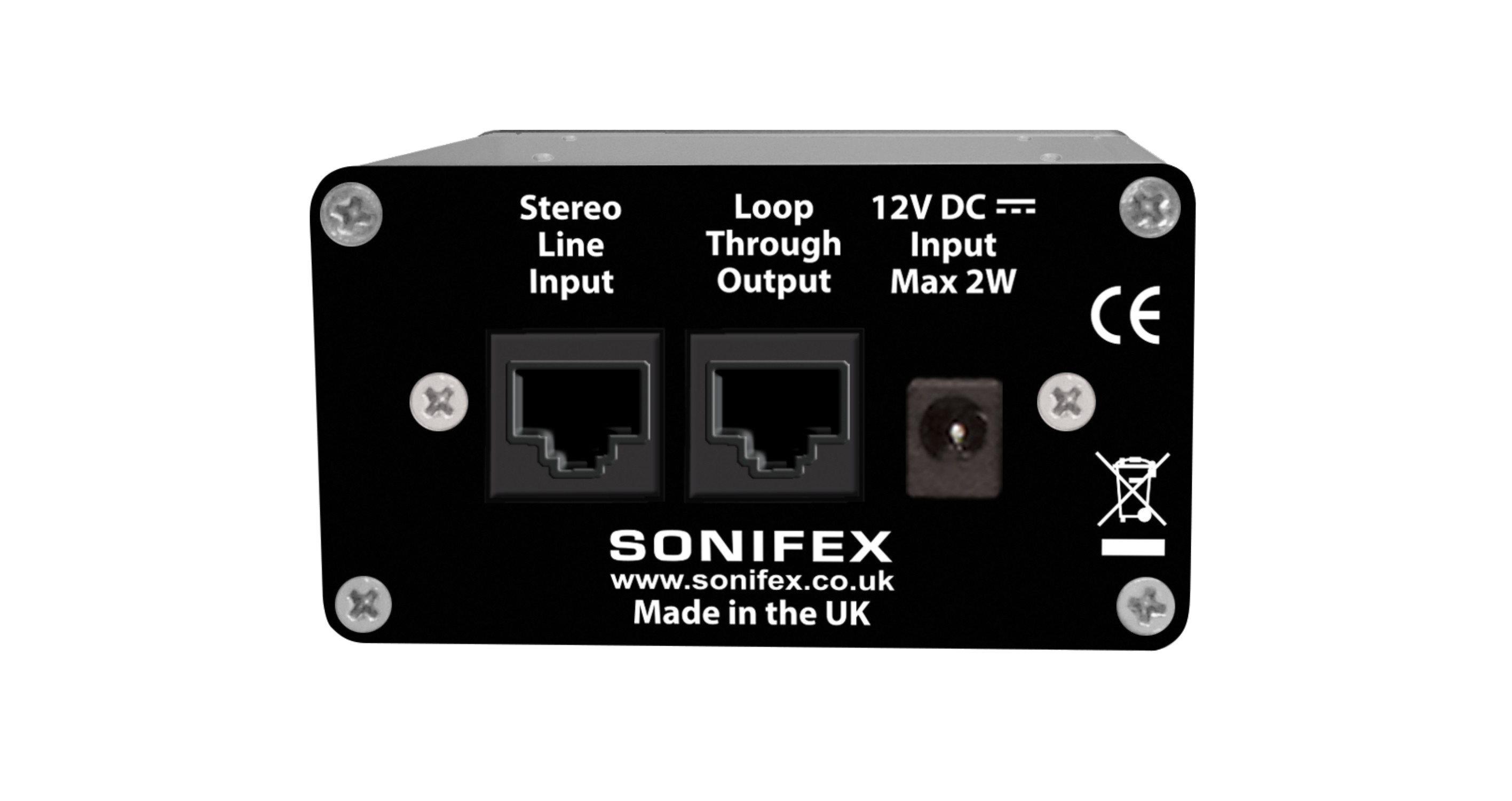

Analogue audio input on RJ45 (the connector provides power to the unit and a GPO back to the portal).
Loop through audio output on RJ45 (power and GPO signal are not connected).
Typical Applications
Product Category
Headphone AmplifiersTECHNICAL SPECIFICATIONS
Parameter | |
|---|---|
| Output Impedance: | Drives 150mW into 32Ω to 600Ω headphones. |
| Max Input Level: | +24dBu |
| Max Output Level: | +18dBu |
| Frequency Response: | 20Hz to 20kHz, +0/-0.2dB |
| THD+N: | <-90dBu, -12dBu, 20Hz to 20kHz, unity gain, 20kHz BW |
| Noise: | -92dBu, A weighted |
| Crosstalk: | -90dB, 1kHz, +4dBu |
| Common Mode: | -40dB, 1kHz |
| Cable: | Cat5/Cat5e/Cat6, Maximum length of 20m between Portal and AVN-HA1 if no external PSU is used |
Equipment Type | |
| AVN-HA1: | Analogue Headphone Amp for AVN-PA8/D & AVN-PM8/D Portals |
Physical Specification | |
| Dimensions: (Raw) | 7.7cm (W) x 8.3cm (D) x 4.2cm (H) |
| Dimensions: (Raw) | 3.0” (W) x 3.3” (D) x 1.7” (H) |
| Dimensions (Boxed): | 12.7cm (W) x 22.9cm (D) x 7.6cm (H) |
| Dimensions (Boxed): | 5” (W) x 9” (D) x 3” (H) |
| Weight: | Nett: 0.22kg Gross: 0.33kg |
| Weight: | Nett: 0.49lbs Gross: 0.73lbs |
Accessories | |
| CM-MNTI | Desk Mount Panel |
SUPPORT
| AVN-HA1 Handbook | [Download] | |
| The AVN Guide | [Download] |
