Dante Embedding & De-Embedding

AVN-DIO10-12G

Dante® to 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder

The AVN-DIO10-12G can be used for simultaneous embedding and de-embedding. This simple plug and play audio/video interface provides a convenient and elegant method of connecting legacy 12G/6G/3G/HD/SD-SDI equipment to the Dante® AoIP audio network.

Dante_Logotype_Black-optimized DDMready_logo-optimized AES67_logo-optimized

About AVN-DIO10-12G

An upgrade to the popular AVN-DIO10, the AVN-DIO10-12G adds support for the full SDI range, from SD-SDI up to 12G-SDI. It performs simultaneous embedding and de-embedding of up to 64 audio channels, providing a simple plug-and-play audio/video interface for connecting 12G/6G/3G/HD/SD-SDI equipment to a Dante® AoIP audio network.

The unit de-embeds up to 64 audio channels from an SDI feed and places them on Dante channels 1–64 (configured via Dante Controller). At the same time, it takes the 64 Dante input channels mapped to the device and re-embeds them onto the SDI output.

Two operating modes are available: Loop-through mode, where the SDI input is passed directly to the output, and Generator mode, where input and output are independent and the SDI output is supplied by an internal SDI video generator. Generator mode allows the unit to act as an embedder without an SDI feed, or as separate de-embedder and embedder with different input/output formats. All settings are configurable through the web UI.

The unit supports embedded audio at 48 kHz and 96 kHz, allowing different sample rates on the de-embed and embed paths. At 96 kHz, SDI channel capacity is halved, with each audio group carrying two channels rather than four at 48 kHz.

The web UI allows Dante channels to be embedded onto the SDI output on a per-channel-pair basis and offers two options: Insert Mode enabled, where embedding selectively overwrites existing SDI audio per channel pair, and Insert Mode disabled, where incoming SDI audio channels are cleared before selective embedding is applied.

Test Tone mode outputs 1 kHz, 2 kHz, 3 kHz and 4 kHz tones on channels 1–4 respectively for any group with embedding enabled. A separate de-embedder test mode places a 1 kHz tone on the transmitting Dante® channels, enabling downstream SDI audio I/O testing without Dante® or SDI sources.

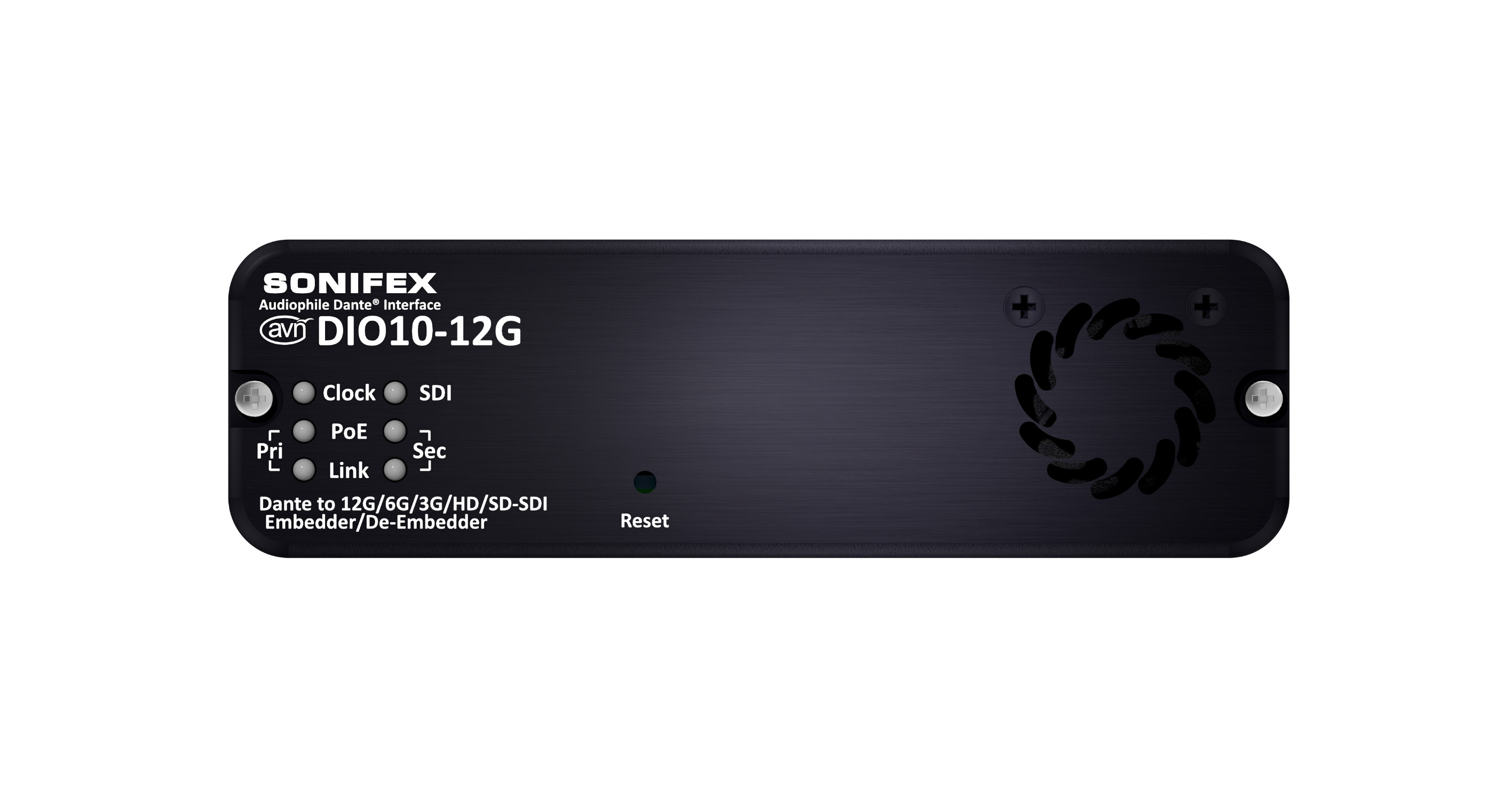

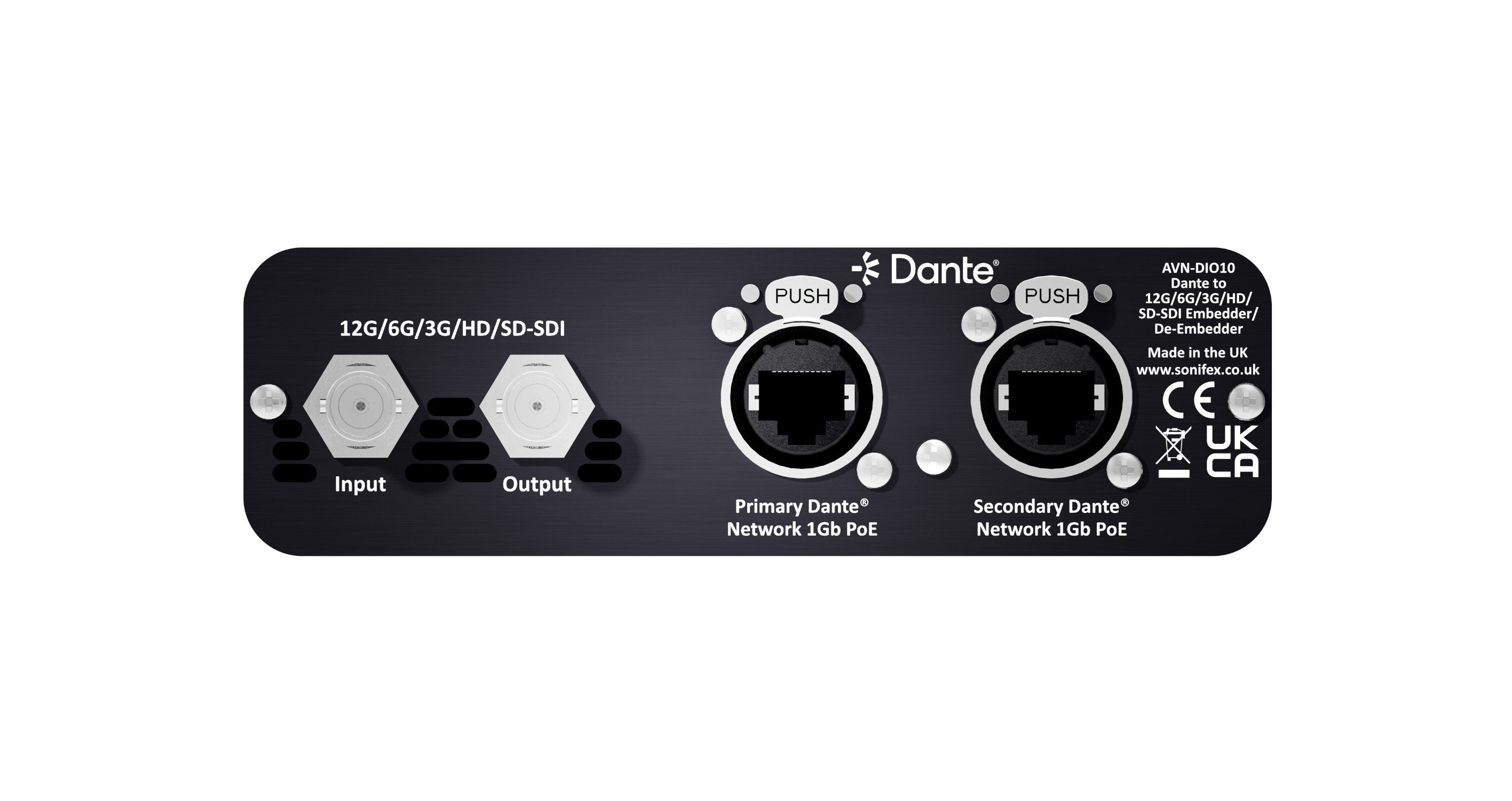

Power is provided via Power over Ethernet (PoE) using Neutrik® EtherCON connectors, with primary and secondary ports for power and data redundancy. Front panel LEDs indicate network clock status, AoIP link activity, and PoE power presence for clear operational monitoring. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager.

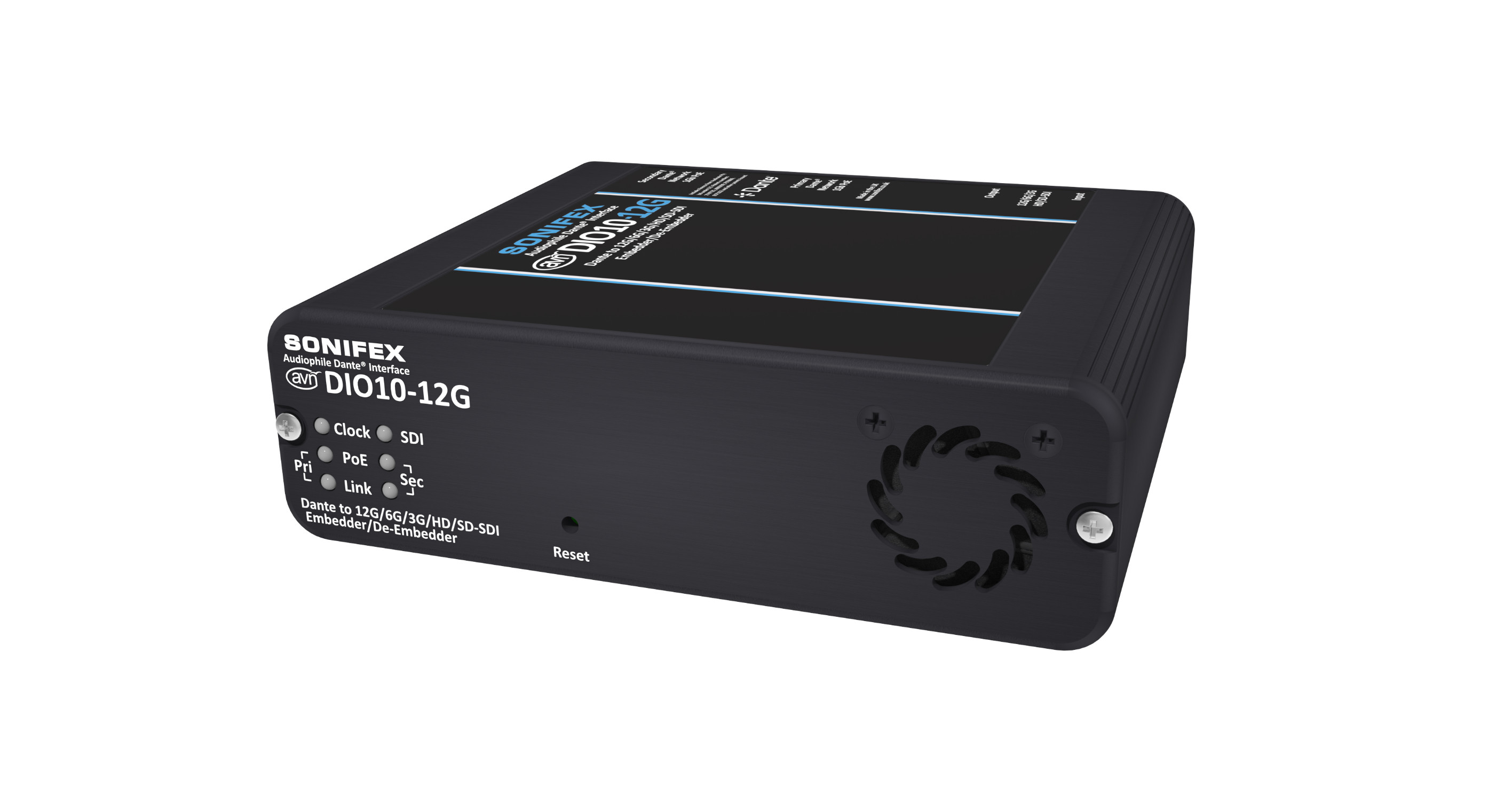

Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.

Typical Applications

Taking audio embedded on an SDI camera feed, or any legacy SDI feed, and de-embedding it to the Dante network, adding Dante audio feeds to an SDI signal for distribution around a facility. Houses of worship - embed multi-language services for distribution. De-embed audio from live HD football feeds to provide multi-language radio commentaries, de-embed audio to pass to a Dante based speaker system. Embed remixed 5.1 + stereo music onto HD concert footage.

Product Data

Technical Specifications

Parameter SDI Input
Input Impedance:
75Ω Unbalanced
SDI Supported Standards:
270Mbps SMPTE-259M-C (SD) 1.485 or 1.4835Gbps SMPTE-292M (HD) 2.97 or 2.967Gbps SMPTE-424M (3G) 5.94 or 5.934Gbps SMPTE-2081 (6G) 11.88 or 11.868Gbps SMPTE-2082 (12G)
Supported Video Formats:
525/59.94 (SMPTE-125M) 625/50 (ITU-R BT.656) 720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-296M) 1035i/59.94, 60 (SMPTE-260M) 1080i/50, 59.94, 60 (SMPTE-274M) 1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M) 1080pSF/23.98, 24, 25, 29.97, 30 (RP-211) 1080i/50 (SMPTE-295M) 1080p/50 (SMPTE-295M) 2160p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-2036)
Embedded Audio:
48kHz, synchronous SMPTE-272M-ABC SMPTE-299M SMPTE-299-2 (De-embedding only)
Supported Image Mapping:
SMPTE-425M-AB
Parameter SDI Output
Output Impedance:
75Ω Unbalanced
Alignment Jitter:
<0.2UI
Output Level:
800mV ±10%
Return Loss:
TBC
SDI Supported Standards:
Loop-through - Output follows input Generator – See above standards
Supported Video Formats:
Loop-through - Output follows input Generator – See above formats
Embedded Audio:
48kHz, synchronous SMPTE-272M-C SMPTE-299M
Network and AoIP
AoIP Standard
Dante
Channels
44.1/48kHz - 64 receive, 64 transmit 88.2/96kHz – 32 receive, 32 transmit 176.4/192kHz – 16 receive, 16 transmit
Flows:
32 receive, 32 transmit
Sample Rates:
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Encoding:
PCM 16, PCM 24, PCM 32
AES67 Support
Yes
Connectivity:
2 x etherCON (RJ45 compatible)
Speed:
1Gbps or 100Mbps
Network Modes:
Switched or redundant
Dante Domain Manager Ready:
Yes
Clock Source:
Internal (PTP Leader), Network PTP Leader or from SDI input (Sync to External)
PoE Power
Standard
802.3af
Redundancy
Yes
Class
0
PD Power Range
0.44 W to 12.94 W
Typical PSE Power Usage
6 W
Max PSE Usage
15.4 W
Equipment Type
AVN-DIO10-12G:
Dante to 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder
Physical Specification
Dimensions (Raw):
14.0cm (W) x 13.6cm (D) x 4.2cm (H) 5.5” (W) x 5.4” (D) x 1.7” (H)
Dimensions (Boxed):
17.8cm (W) x 17cm (D) x 5.6cm (H) 7.0" (W) x 6.7" (D) x 2.2" (H)
Weight:
Nett: 0.36kg Gross: 0.55kg Nett: 0.79lbs Gross: 1.21lbs
Accessories
AVN-DIORK
AVN-DIO 1U 19" Rack Kit (5 x Small DIO or 3 x Large DIO)
