RB-VHDMA8

3G/HD/SD-SDI De-Embedder, 8 Channel Analogue Outputs

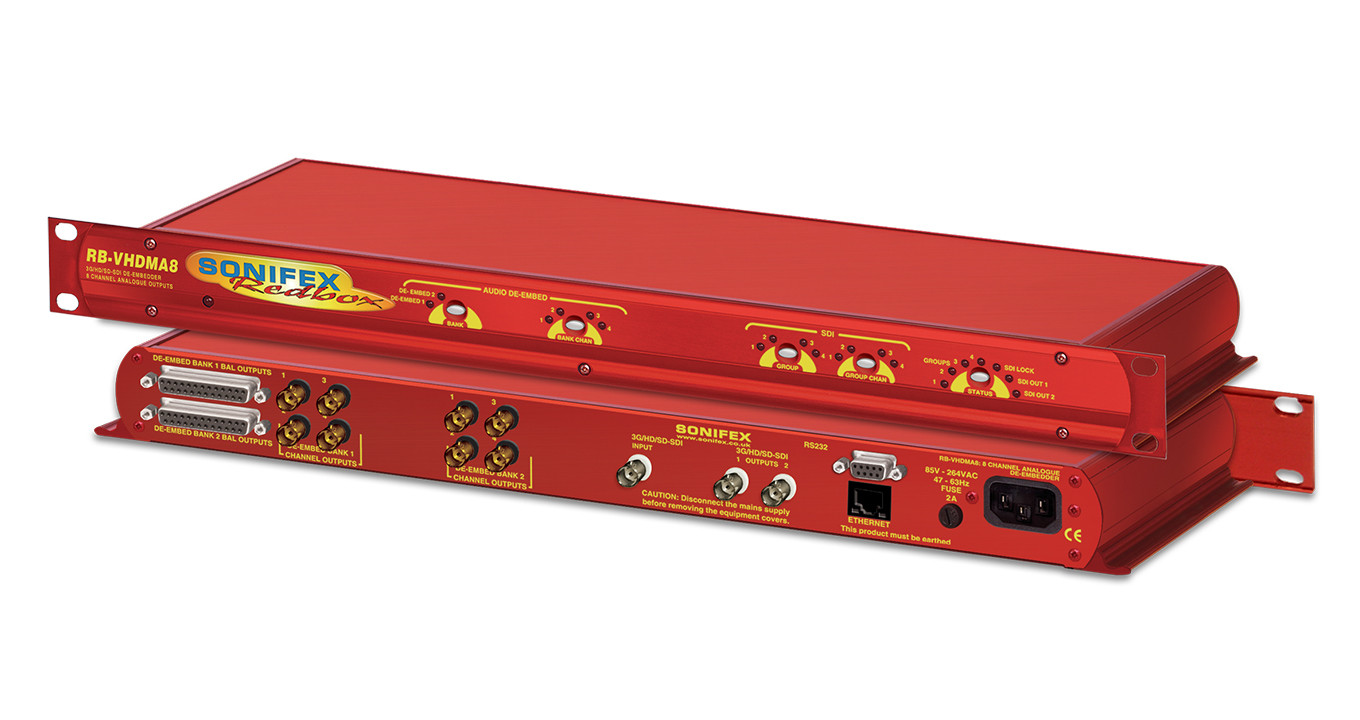

The RB-VHDMA8 is an 8 channel analogue de-embedder contained in a single 19-inch rack unit.

RK3_logo-optimized

About RB-VHDMA8

The RB-VHDMA8 is an 8 channel analogue de-embedder contained in a single 19-inch rack unit. The unit can selectively de-embed up to 8 channels within any audio group of an SDI video signal, to any of the analogue outputs. After which, the video becomes two independent paths, where the audio groups can be selectively deleted or passed through and then sent to the re-clocked SDI outputs.

The de-embedding channel routing is controlled via the front panel buttons and indicators. There is also LED indication for SDI input status and audio group presence. The unit can be remote controlled via Ethernet or serial port connections using the Sonifex SCi software. It has a triple rate SDI receiver with automatic input rate detection and equalisation along with two re-clocked and individually buffered SDI outputs. It supports the full range of single link 3G, HD and SD standards from NTSC and PAL up to 1080p 60Hz. There is independent level control for each analogue output channel, which can be adjusted from -24dB through to +24dB in 0.5dB steps. The analogue outputs have three full-scale gain settings which can be set via jumpers inside the unit. Allowable settings are +12dBu, +18dBu and +24dBu reference FSD. The balanced and unbalanced output connections are paralleled, allowing one type to be used per output. This product has settings that can be adjusted using the Sonifex SCi (Serial Control Interface) software.

Typical Applications

De-embed audio from live HD football feed to provide multi-language radio commentaries, de-embed audio to pass to analogue speaker system.

Product Data

Technical Specifications

Front Panel Controls & Indicators
De-embed Bank Select:
Bank 1 or 2
Bank Channel Select:
Channels 1, 2, 3 or 4
Group Select:
Groups 1, 2, 3 or 4
Group Channel Select:
Group channels 1,2,3 or 4
Status:
1 x SDI input status LED
Status:
2 x SDI output LEDs
Status:
4 x Audio group status LEDs
Audio Specifications
Max Output Level:
+24dBu (balanced)
Output Impedance:
<50Ω (balanced)
Gain Range:
12dBu, 18dBu or 24dBu ref FSD (jumper selectable)
Signal to Noise:
Better than -106dB (RMS A-weighted at 24-bit, balanced)
Distortion and Noise:
Better than -85dB THD+N at 1kHz (balanced)
De-embed Delay:
3G/HD/SD: 1.1 ms

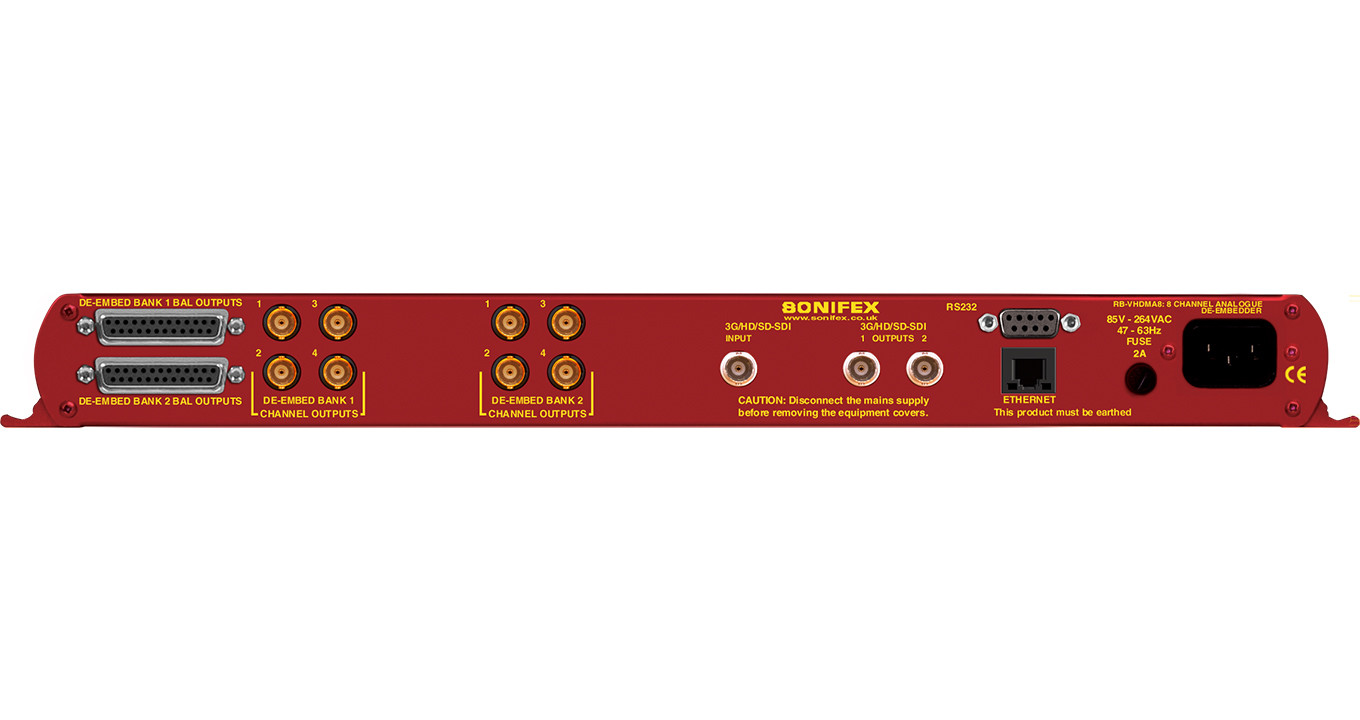

Connections
Analogue Audio Outputs:
8 output channels via BNC (unbalanced) or D-type socket (balanced)
Analogue Audio Connectors:
8 x BNC
Analogue Audio Connectors:
2 x 25-way D-type
Power Supply:
Universal filtered IEC, continuously rated 85-264VAC @47-63Hz, fused, max 14W
Equipment Type
RB-VHDMA8
3G/HD/SD-SDI De-embedder, 8 channel analogue outputs
Common Specifications For RB-VHEMA8, RB-VHDMA8, RB-VHCMA4 & RB-VHCMD16
SDI Specification
SDI Input:
1 x BNC, 3G/HD/SD-SDI
SDI Outputs:
2 x BNC, 3G/HD/SD-SDI, Re-clocked
Impedance:
75Ω
Output Alignment Jitter:
<0.2UI (3G <0.3UI)
Output Level:
800mV +/- 10%
Return Loss:
<15dB at 1500MHz
SDI Supported Standards:
270Mbps, SMPTE-259M-C (SD) 1.485 or 1.4835Gbps, SMPTE-292M (HD) 2.97 or 2.967Gbps, SMPTE-424M (3G), SMPTE 425M-A
Supported Video Formats:
525/59.94 (SMPTE-125M 625/50 (ITU-R BT.656) 720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-296M) 1035i/59.94, 60 (SMPTE-260M) 1080i/50, 59.94, 60 (SMPTE-274M) 1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M) 1080pSF/23.98, 24, 25, 29.97, 30 (RP-211) 1080i/50 (SMPTE-295M)1080p/50 (SMPTE-295M)
Video Delay:
SD: 290 pixels / 22 us
Video Delay:
HD: 570 pixels / 8 us
Video Delay:
3G: 570 pixels / 4 us
Embedded Audio:
48kHz, synchronous
Embedded Audio:
SMPTE-272M-ABC
Embedded Audio:
SMPTE-299M
Serial Port:
RS232, 9 way D-type
Ethernet Port:
10/100Mbps
Fuse Rating:
Anti-surge fuse 2A 20 x 5mm
Physical Specifications
Dimensions (Raw):
48cm (W) x 15.8cm (D*) x 4.2cm (H) (1U)
Dimensions (Raw):
19” (W) x 6.2” (D*) x 1.7” (H) (1U)
Dimensions (Boxed):
59cm (W) x 27.5cm (D) x 11cm (H)
Dimensions (Boxed):
23.2” (W) x 10.8” (D) x 4.3” (H)
Weight:
Nett: 1.8kg Gross: 2.3kg
Weight:
Nett: 4.0lb Gross: 5.1lb
* Note that this product is deeper than standard Redboxes
