AVN-AESIO8R 8 AES3 Input, 8 AES3 Output Dual Dante® Interface, PoE
 |
 |
 |
||
 |
 |
 |

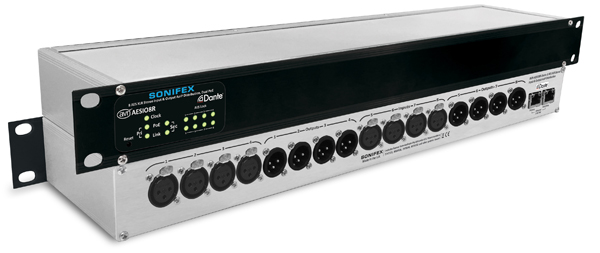

Iso View |

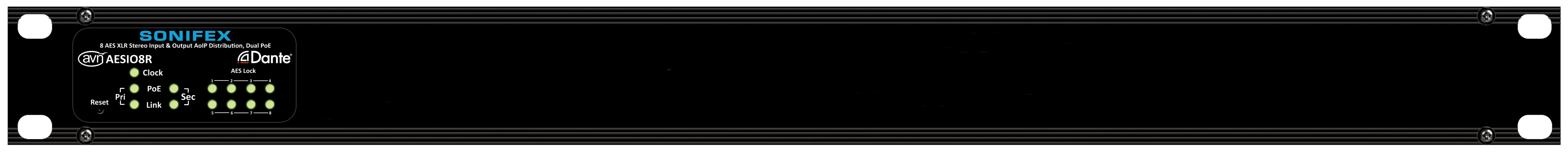

Front View |
Rear View |
AVN-AESIO8R 8 AES3 Input, 8 AES3 Output Dual Dante® Interface, PoE
The AVN-AESIO8R audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante system sample rate. A valid input signal is confirmed by front panel AES3 lock LEDs for each input. All outputs follow the Dante system sample rate.
Dual Ethernet ports allow the unit to operate in redundant mode, ensuring audio routing is maintained in the event of loss of link on either of the network connections. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up done via the standard Dante Controller software and power via PoE (Power Over Ethernet).
All digital AES3 inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link and Clock.
- 8 x balanced digital stereo AES3 inputs on XLR, supporting input rates of 32kHz – 192kHz.
- Sample rate conversion on physical inputs to Dante system sample rate.
- 8 x balanced digital stereo AES3 outputs on XLR, output rate matches Dante system sample rate.
- 2 x RJ45 Dante connectors (1Gb/s Ethernet Port) allowing the unit to operate in redundant or switched modes.
- PoE and Link LED status indicators for each Ethernet port.
- Clock LED status indicator.
- AES3 Lock LED status indicators for each input.
- Configuration using Dante Controller.
- AES67 operation & Dante Domain Manager compliant.
- Powered by PoE on either (or both) Ethernet ports, offering power supply redundancy.
- 1U 19” rack-mount form factor.
(The AVN-AESIO8 is available with a single Ethernet port).
Technical Specification For AVN-AESIO8R |
|
Network and AoIP |
|
| AoIP Standard: | Dante |
| Number of Channels: | 16 receive, 16 transmit |
| Number of Streams: | 16 receive, 16 transmit |
| Sample Rate: | 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz |
| Format: | Linear PCM, 16, 24 or 32 bit |
| AES67 Support: | Yes |
| Connectivity: | 2 x RJ45 |
| Speed: | 1Gbps or 100Mbps |
| Network Modes: | Switched or redundant |
| Dante Domain Manager Ready: | Yes |
AES3 Input Specifications |
|
| Input Impedance: | 110Ω balanced |
| Support Input Rates: | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (sample rate converted to Dante system sample rate). |
| Signal Level: | AES3-2009 compliant |
| Bit Depth: | Up to 24bits |
AES3 Output Specifications |
|
| Output Impedance: | 110Ω balanced |
| Support Output Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (set as per Dante system sample rate). |
| Signal Level: | AES3-2009 compliant |
| Bit Depth: | 24 bits |
Balanced Line Input XLR Pinout |
|
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Input Positive |
| 3 | Input Negative |
Balanced Line Output XLR Pinout |
|
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Output Positive |
| 3 | Output Negative |
PoE Power |
|
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 7W |
| Max PSE Power Usage | 15.4 W |
Equipment Type |
|
| AVN-AESIO8R: | 8 AES3 Input, 8 AES3 Output Dual Dante® Interface, PoE |
Physical Specification |
|
| Dimensions (Raw): | 48cm (W) x 11cm (D) x 4.3cm (H)(1U) 19” (W) x 4.3” (D) x 1.7” (H) |
| Weight: | Nett: 1.0kg Gross: 1.5kg Nett: 2.2lbs Gross: 3.3lbs |
