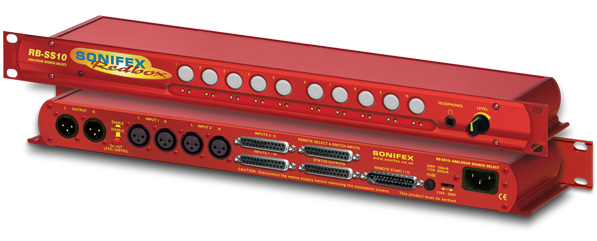

The RB-SS10 10 Way Stereo Analogue Source Selector/Mixer.
What The Press Said:
Radio World, April 2013 >
RB-SS10 10 Way Stereo Analogue Source Selector/Mixer
The RB-SS10 10 way stereo analogue source selector/mixer is a 1U rack-mount unit that produces a stereo analogue audio output from 10 selectable stereo analogue sources. There are 10 illuminated front panel push-buttons, which select and indicate the current channel selection. The selection
and indication is also available through
a remote connector on the rear panel.
To stop accidental front panel selection there is a remote input to inhibit the front panel buttons.
Two of the stereo inputs are on XLR so that you can hot-plug audio sources, e.g. portable recorders. As well as being able to act as a source select module, the RB-SS10 can act as a mixer, by enabling the mix mode (using the remote input).
The gain for left and right inputs can be individually adjusted by using the pre-set potentiometers on the front panel. As well as routing the selected audio signal, the unit will also route a remote signal input through the remote connector to the selected input source, for starting external audio equipment such as a CD player.
The front panel headphone output has its own volume control, which is independent of the level adjustment for the main outputs, and has a maximum output level of +12dBu. The volume control can be made to also alter the output level of the main XLR outputs by using a switch on the rear panel to enable/disable this feature.
There is a designation strip on the front panel, useful for giving the buttons a meaningful description. The strip covers the input gain controls so that once configured, they can’t easily be altered - ideal for installation work. The LED on the front panel is used to indicate that power is present on the unit.

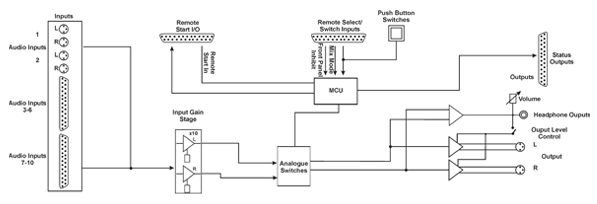

RB-SS10 Block Diagram.
Technical Specification For RB-SS10 |
|
Audio Specification |
|
| Input Impedance: | 20kΩ bridging |
| Output Impedance: | <50Ω |
| Max Input Level: | +28dBu |
| Max Output Level: | +28dBu |
| Frequency Response: | 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz) |
| Input Gain Range: | Adjustable 8dB loss to 20dB gain (L & R adjust) via front panel adjustable preset potentiometers |
| Common Mode Rejection: | >66dB typically |
| Noise: | -96dB unity gain ref +8dBu |
| Max Headphone Output Level: | +12dBu |
Connections |
|
| Inputs: | 4 x XLR 3 pin female (2 x stereo) (balanced, can be unbalanced) 2 x 25 way D-type socket (female) (4 stereo balanced channels on each) |
| Outputs: | 2 x XLR 3 pin male (stereo balanced, can be unbalanced) |
| Remote Start I/O: | 25 way D-type plug (male) |
| Remote Select/Switch Inputs: | 25 way D-type socket (female) |
| Status Outputs: | 25 way D-type socket (female) |
| Mains Input: | Filtered IEC, 110V-120V, or 220-240V switchable, fused, 6W maximum |
| Fuse Rating: | Anti-surge fuse 160mA 20 x 5mm (230VAC) Anti-surge fuse 315mA 20 x 5mm (115VAC) |
Equipment Type |
|
| RB-SS10: | 10 way stereo analogue source selector/mixer |
Physical Specification |
|
| Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H) |
| Weight: | Nett: 1.5kg Gross: 2.0kg Nett: 3.3lbs Gross: 4.4lbs |
