S2-ODP Digital PGM Output Channel

This channel is common to every mixer and provides a digital and analogue output from the PGM mix bus.

About S2-ODP

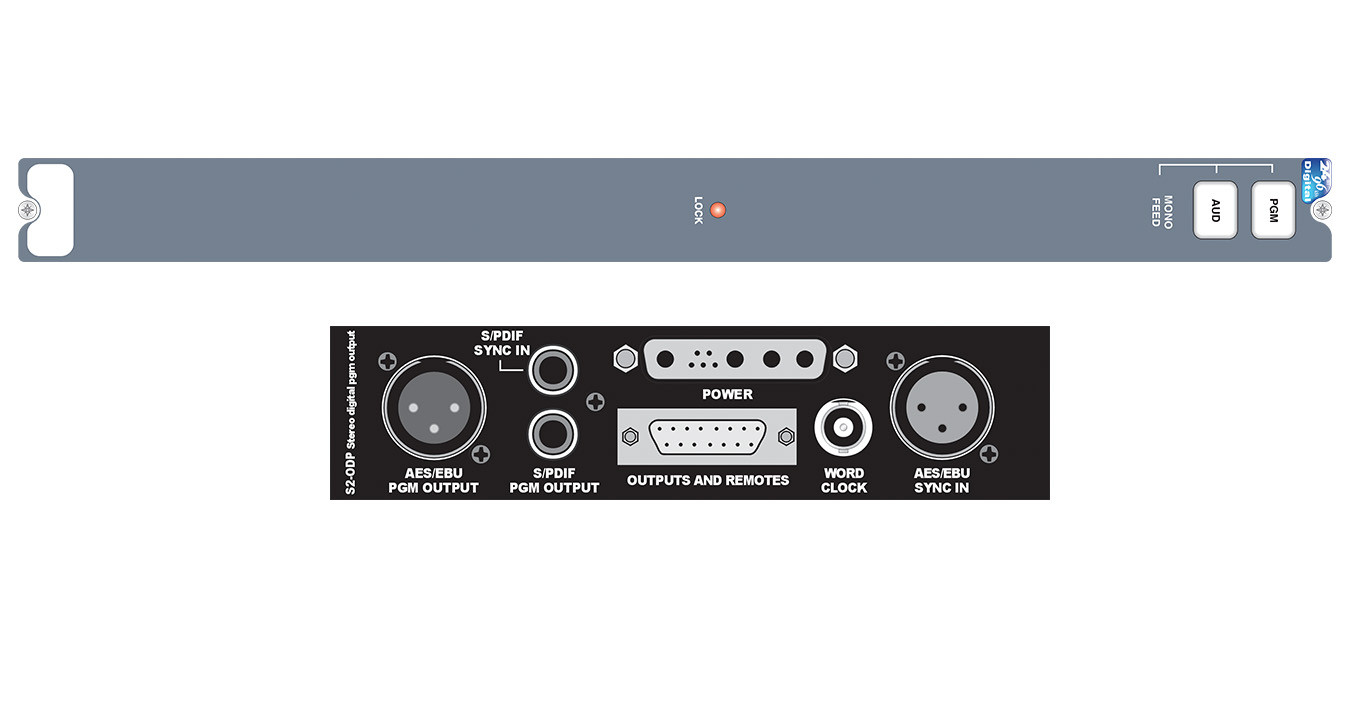

This channel is common to every mixer and provides a digital and analogue output from the PGM mix bus. The digital output is available as a balanced AES/EBU signal via a standard XLR or as S/PDIF on phono sockets. The balanced analogue PGM output and mono output is on a 15 way D-type connector. This also carries the two sets of latching relay contacts for the control room mutes.

The main power input from the S2-PSU is on this channel. Button switches at the top of the channel select the mono output source from either PGM or AUD. The Mono compatible output could be used to feed a mono transmitter or any station output monitoring system that requires a mono signal, such as a background music system.

The digital output status bits (consumer or professional), output sample size (16, 20 or 24 bits) and sample rate (automatically or by internal jumpers from 32 kHz to 96 kHz) can be set. The digital output can be synchronised from an external input, or from an on-board master clock. There are 4 different sync modes : Master, Auto, Auto Lock and Slave.

The illuminated LOCK LED shows that the digital output is locked to the onboard master clock, incoming word clock or AES/EBU or S/PDIF sync signal. The channel automatically locks to a valid sync clock, flashing if sync is lost. Synchronisation can be jumper disabled.

Typical Applications

Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.

Product Data

Technical Specifications

Input/Output Impedances
Mic Input:
> 1k5Ω electronically balanced
Mono Line Input:
> 20kΩ electronically balanced
Stereo Line Input:
> 20kΩ electronically balanced
PGM & AUD Output:
< 75Ω electronically balanced
Mono Output:
< 75Ω electronically balanced
Monitor Outputs:
< 75Ω unbalanced
AES Input/Output:
110Ω
S/PDIF Input/Output:
75Ω
BNC Wordclock input:
50Ω
Input/Output Gain Range
Mic Input:
Preset pot +13dB to +66dB ref -50dBu, TRIM pot ±12dB
Mono Line Input:
Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB
Stereo Line Input:
Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB
Telco Input:
Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB
Telco Output:
Preset pot -6dB to +4dB ref 0dBu
Mix Minus Input:
Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB
Mix Minus Output:
Preset pot -3dB to +3dB ref 0dBu
Digital Input:
0dBFS = +12dBu on input; TRIM pot ±12dB allowing 0dBu to +24dBu
Digital Output:
0dBFS = +18dBu
Frequency Response
Mic Input:
40Hz to 20kHz, -1dB,+0dB (-3dB at 130Hz with HPF in)
Line Inputs:
20Hz to 20kHz, - 0.5dB,+0dB
RIAA Input:
30Hz to 16kHz ±1.5dB RIAA equalised
Noise (20Hz to 20kHz)
Mic Input E.I.N.:
-129dB with 150Ω source
Stereo Inputs (fader down, no routing):
-89dB ref 0dB
Stereo Inputs (fader down, one channel routed):
-89dB
Stereo Inputs (unity gain, no routing):
-89dB
Stereo Inputs (unity gain, one channel routed):
-86dB
Stereo Inputs (unity gain, two channels routed):
-83dB
Distortion
Total Harmonic Distortion:
0.015% at 1kHz, 0dB
Total Harmonic Distortion:
0.025% at 10kHz, 0dB
Crosstalk
Inter-channel:
< -90dBu
Stereo:
-90dBu at 1kHz
Equalisation
LF Shelving at 100Hz:
±7dB
HF Shelving at 6.5kHz:
±7dB
Range
Pan Range:
off/-3dB centre/off
Balance Range:
±6dB
Common Mode Rejection Ratio
Mic Input:
> 100dB at 70dB gain
Digital I/O
Sync Input Sample Rate:
30kHz - 100kHz
Output Sample Rates (Using Onboard Clock):
32kHz, 44.1kHz, 48kHz, & 96kHz
Output Sample Width:
16, 20, 24 bit (24 bit on V2 ODA/ODP)
Output
Headphone Output Load:
>45Ω, 400Ω recommended
Maximum Output (Analogue):
+26dBu balanced into 2kΩ or greater
Power
Power (S2-PSU):
Filtered IEC, switchable 115V, 230V, fused, 210W max.
Dimensions (S2-PSU):
48cm (W) x 24.3cm (D) x 8.8cm (H)
(Raw):
19” (W) x 10” (D) x 3.5” (H)
Dimensions (S2-PSU):
51cm (W) x 41.5cm (D) x 17cm (H)
(Boxed):
20” (W) x 16.3” (D) x 6.7” (H)
Weight (S2-PSU):
Nett: 6kg       Gross: 7.8kg
Weight (S2-PSU):
Nett: 13.2lbs Gross: 17lbs
Dimensions (S2-PSUS):
48cm (W) x 23cm (D) x 4.4cm (H)
(Raw):
19” (W) x 9” (D) x 1.7” (H)
Dimensions (S2-PSUS):
55cm (W) x 39.3cm (D) x 8.5cm (H)
(Boxed):
21.6” (W) x 15.5” (D) x 3.4” (H)
Weight (S2-PSUS):
Nett: 1.58kg Gross: 2kg
Weight (S2-PSUS):
Nett: 3.5lbs  Gross: 4.4lbs
