S2-7SS
Script Space
The script space occupies an area of 7 channel widths, and is designed to hold documents or scripts for the mixer operator when desk space is at a premium.
S2-7SS
Script Space

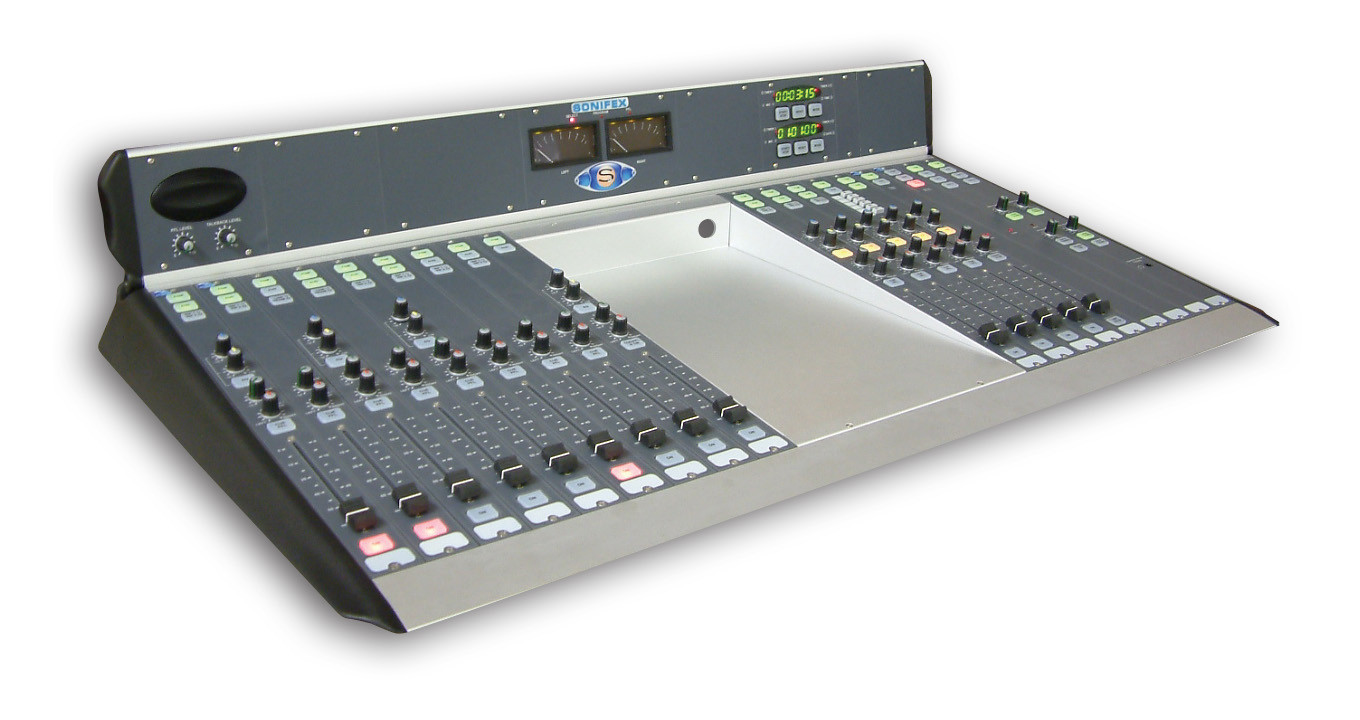

S2 Script Space (S2-7SS) The script space occupies an area of 7 channel widths, and is designed to hold documents or scripts for the mixer operator when desk space is at a premium. The S2-7SS Script Space is 266mm wide x 390mm deep.
Product Features
Document / script holder
266mm wide x 390mm deep.
Typical Applications
Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.
Product Category
Mixer AccessoriesTECHNICAL SPECIFICATIONS
Input/Output Impedances | |
|---|---|
| Mic Input: | > 1k5Ω electronically balanced |
| Mono Line Input: | > 20kΩ electronically balanced |
| Stereo Line Input: | > 20kΩ electronically balanced |
| PGM & AUD Output: | < 75Ω electronically balanced |
| Mono Output: | < 75Ω electronically balanced |
| Monitor Outputs: | < 75Ω unbalanced |
| AES Input/Output: | 110Ω |
| S/PDIF Input/Output: | 75Ω |
| BNC Wordclock input: | 50Ω |
Input/Output Gain Range | |
| Mic Input: | Preset pot +13dB to +66dB ref -50dBu, TRIM pot ±12dB |
| Mono Line Input: | Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB |
| Stereo Line Input: | Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB |
| Telco Input: | Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB |
| Telco Output: | Preset pot -6dB to +4dB ref 0dBu |
| Mix Minus Input: | Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB |
| Mix Minus Output: | Preset pot -3dB to +3dB ref 0dBu |
| Digital Input: | 0dBFS = +12dBu on input; TRIM pot ±12dB allowing 0dBu to +24dBu |
| Digital Output: | 0dBFS = +18dBu |
Frequency Response | |
| Mic Input: | 40Hz to 20kHz, -1dB,+0dB (-3dB at 130Hz with HPF in) |
| Line Inputs: | 20Hz to 20kHz, - 0.5dB,+0dB |
| RIAA Input: | 30Hz to 16kHz ±1.5dB RIAA equalised |
Noise (20Hz to 20kHz) | |
| Mic Input E.I.N.: | -129dB with 150Ω source |
| Stereo Inputs (fader down, no routing): | -89dB ref 0dB |
| Stereo Inputs (fader down, one channel routed): | -89dB |
| Stereo Inputs (unity gain, no routing): | -89dB |
| Stereo Inputs (unity gain, one channel routed): | -86dB |
| Stereo Inputs (unity gain, two channels routed): | -83dB |
Distortion | |
| Total Harmonic Distortion: | 0.015% at 1kHz, 0dB |
| Total Harmonic Distortion: | 0.025% at 10kHz, 0dB |
Crosstalk | |
| Inter-channel: | < -90dBu |
| Stereo: | -90dBu at 1kHz |
Equalisation | |
| LF Shelving at 100Hz: | ±7dB |
| HF Shelving at 6.5kHz: | ±7dB |
Range | |
| Pan Range: | off/-3dB centre/off |
| Balance Range: | ±6dB |
Common Mode Rejection Ratio | |
| Mic Input: | > 100dB at 70dB gain |
Digital I/O | |
| Sync Input Sample Rate: | 30kHz - 100kHz |
| Output Sample Rates (Using Onboard Clock): | 32kHz, 44.1kHz, 48kHz, & 96kHz |
| Output Sample Width: | 16, 20, 24 bit (24 bit on V2 ODA/ODP) |
Output | |
| Headphone Output Load: | >45Ω, 400Ω recommended |
| Maximum Output (Analogue): | +26dBu balanced into 2kΩ or greater |
Power | |
| Power (S2-PSU): | Filtered IEC, switchable 115V, 230V, fused, 210W max. |
| Dimensions (S2-PSU): | 48cm (W) x 24.3cm (D) x 8.8cm (H) |
| (Raw): | 19” (W) x 10” (D) x 3.5” (H) |
| Dimensions (S2-PSU): | 51cm (W) x 41.5cm (D) x 17cm (H) |
| (Boxed): | 20” (W) x 16.3” (D) x 6.7” (H) |
| Weight (S2-PSU): | Nett: 6kg Gross: 7.8kg |
| Weight (S2-PSU): | Nett: 13.2lbs Gross: 17lbs |
| Dimensions (S2-PSUS): | 48cm (W) x 23cm (D) x 4.4cm (H) |
| (Raw): | 19” (W) x 9” (D) x 1.7” (H) |
| Dimensions (S2-PSUS): | 55cm (W) x 39.3cm (D) x 8.5cm (H) |
| (Boxed): | 21.6” (W) x 15.5” (D) x 3.4” (H) |
| Weight (S2-PSUS): | Nett: 1.58kg Gross: 2kg |
| Weight (S2-PSUS): | Nett: 3.5lbs Gross: 4.4lbs |
