Signal Isolation

RB-PLI6

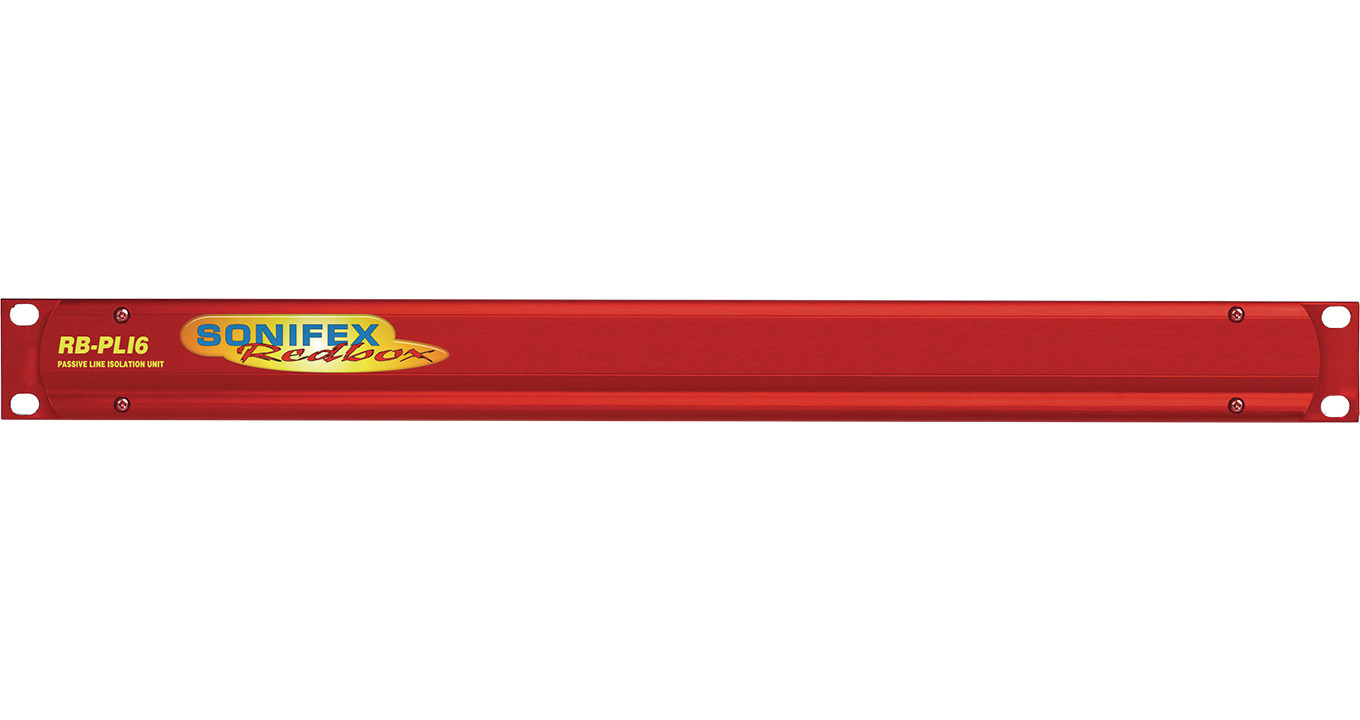

6 Way Mono Passive Line Isolation Unit

The RB-PLI6 passive line isolation unit is used to isolate audio signals from inter-area ground hum loops.

RK3_logo-optimized

About RB-PLI6

The RB-PLI6 passive line isolation unit is used to isolate audio signals from inter-area ground hum loops, which could be caused by equipment being powered by different mains power supplies or phases on the same supply. The input and output are connected together through a transformer, and the unit has internal jumpers allowing the inputs and/or outputs to be balanced about ground. The unit requires no mains power for operation.

This unit is useful where audio is required to be driven over a relatively long length of cable. By isolating the signal using transformers, ground loop currents which can be present in non-isolated signals, are eradicated completely.

Typical Applications

To reduce earth hum problems, especially when the equipment at each end of your cable run is powered for either different mains power supplies or different phases of the same supply. OB trucks where multiple isolated audio feeds are required to different locations on the broadcast.

Product Data

Technical Specifications

Audio Specification
Output Impedance:
<150Ξ©
Distortion:
0.5% THD @ 40Hz, ref +17dBu output
Common Mode Rejection:
>64dB typically
Frequency Response:
10Hz to 36kHz Β±0.5dB

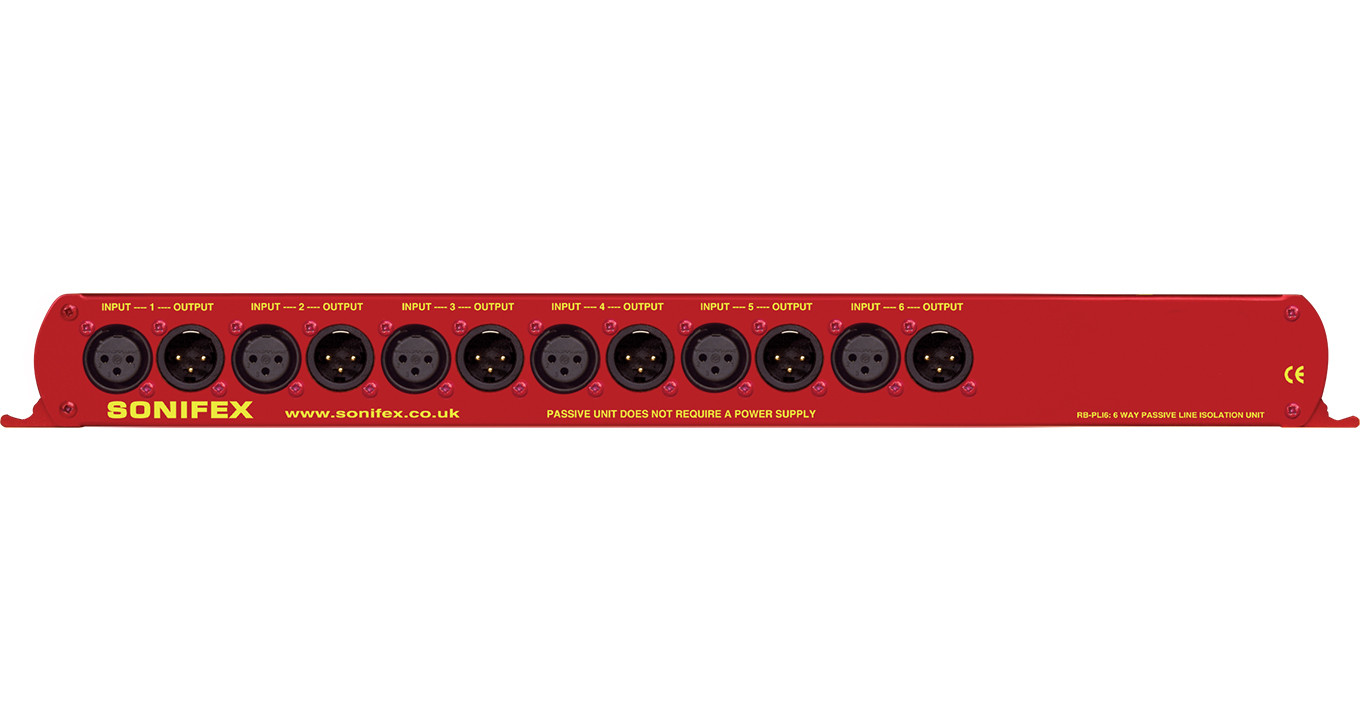

Connections
Inputs:
6 x XLR 3 pin female (Balanced)
Outputs:
6 x XLR 3 pin male (Balanced)
Equipment Type
RB-PLI6:
6 way mono passive line isolation unit
Physical Specification
Dimensions (Raw):
48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw):
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed):
58.5cm (W) x 22.5cm (D) x 7cm (H)
Dimensions (Boxed):
23” (W) x 8.9” (D) x 2.8” (H)
Weight:
Nett: 1.5kg Β Gross: 1.9kg
Weight:
Nett: 3.3lbs Gross: 4.2lbs
