Phono Amplifiers
RB-PA2
Dual stereo RIAA phono amplifier

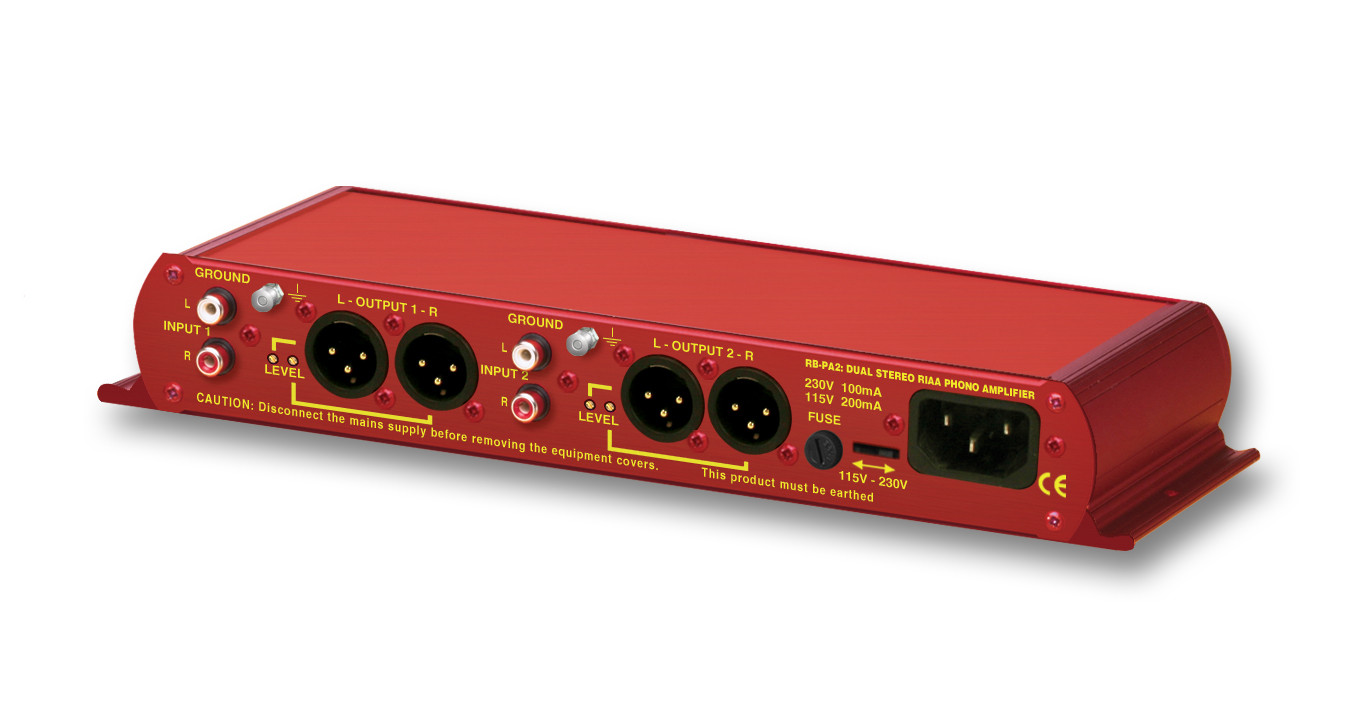

The RB-PA2 is a dual stereo RIAA phono amplifier for interfacing turntables with professional audio systems.
About RB-PA2
The RB-PA2 is a dual stereo RIAA equalised phono amplifier. This turntable preamp amplifies the small signal from your pickup cartridge (either moving magnet or high output moving coil) and provides the necessary RIAA equalisation required for vinyl records, to match it to a line input of your mixer or amplifier. It uses a clean RIAA response, making it ideal for use with broadcast turntables and DJ decks, and applications where vinyl records are being archived for high quality transfers or for converting albums to mp3. It operates with phono cartridges with a nominal output of 1mV to 25mV and has been specifically tested to work with the Technics SL turntables. Quality high specification components have been used together with low noise, fast acting operational amplifiers to produce a superbly transparent signal path.

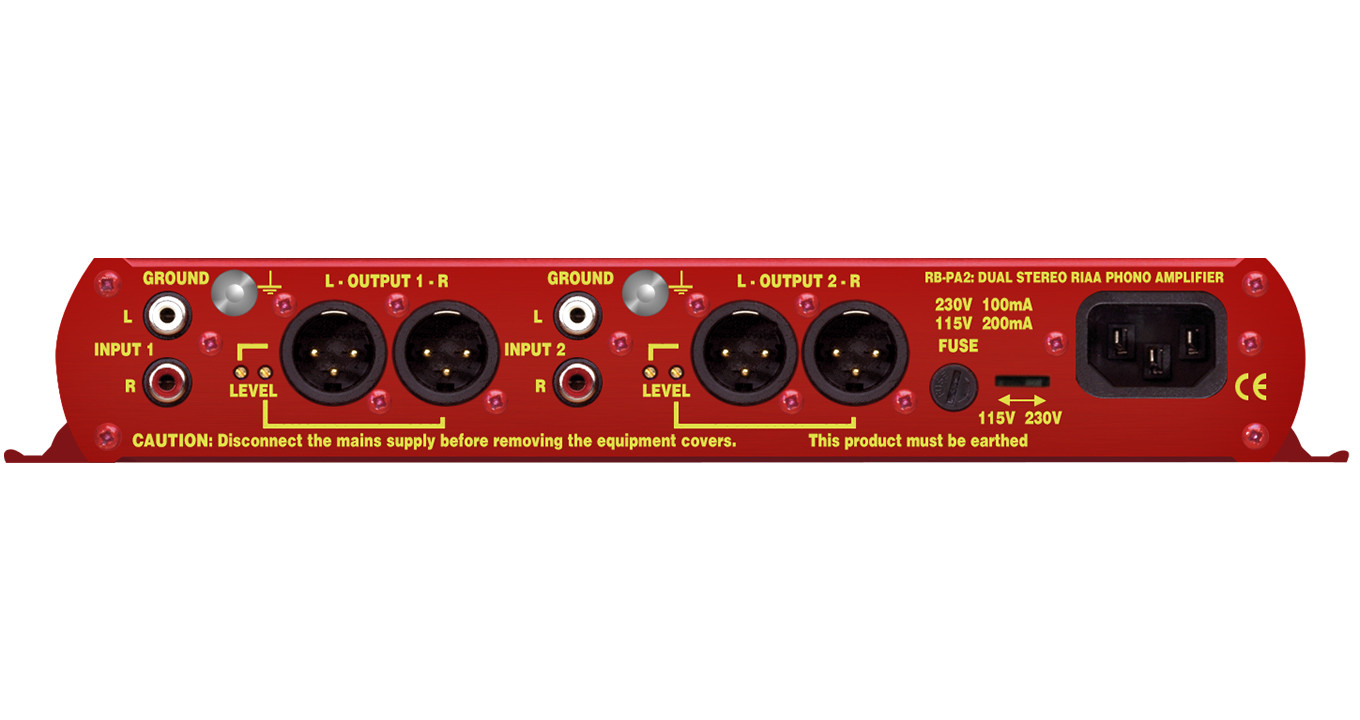

RB-PA2 runs without a rumble filter to produce a powerful bass response. The RB-PA2 is a dual stereo unit to interface up to two turntables. The inputs are phono connectors with Neutrik XLR connectors for the balanced outputs, which may be wired unbalanced if required. Output gain is individually adjustable for left and right channels in the range 35 dB to 65 dB by using pre-set potentiometers. Units are supplied factory adjusted to provide a nominal +4 dBu output level from a typical 5 mV moving magnet cartridge, allowing immediate connection to professional line-level equipment. The gain may be re-adjusted to suit cartridges with outputs from 1 mV to 25 mV. Frequency response is held within 0.5dB of the RIAA curve, and noise is typically better than -84dB RMS A-weighted at 40dB gain.
Typical Applications
Ideal for integrating turntables into professional audio systems for broadcast, recording, or archiving.Product Data
Technical Specifications
Audio Specification
Connections
Equipment Type
Physical Specification
