RB-OA3R
Remote Switcher Panel for RB-OA3

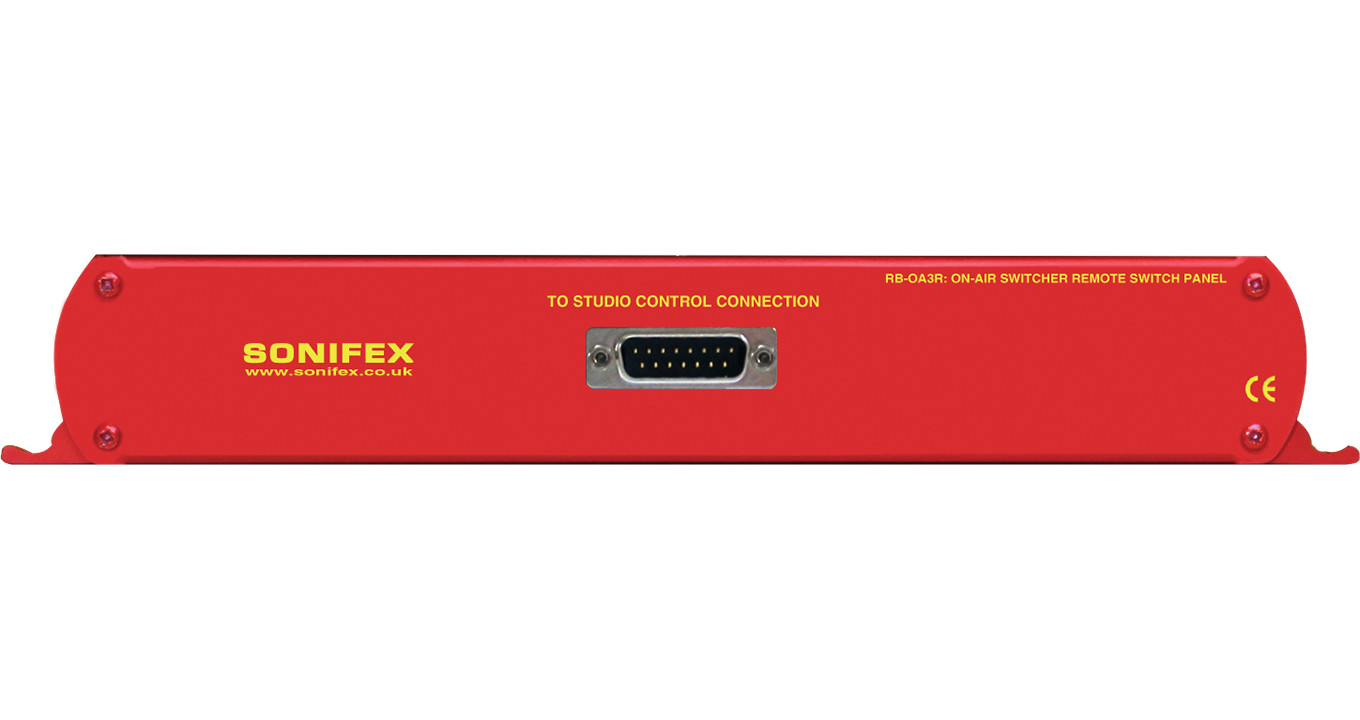

The RB-OA3R is a 1U rack mount switch unit for use in each studio that needs to be connected to the STUDIO 1-3 CONTROL connectors on an RB-OA3.
RB-OA3R
Remote Switcher Panel for RB-OA3
The RB-OA3 has been designed for installation in a central technical area with cabling to custom panels, or selection switches, in each studio. If you don’t have any custom switch panels available, you can use an RB-OA3R in each studio. The RB-OA3R is a 1U rack mount switch unit for use in each studio that needs to be connected to the STUDIO 1-3 CONTROL connectors on an RB-OA3. It takes it’s power from the RB-OA3 unit so needs no power supply itself.

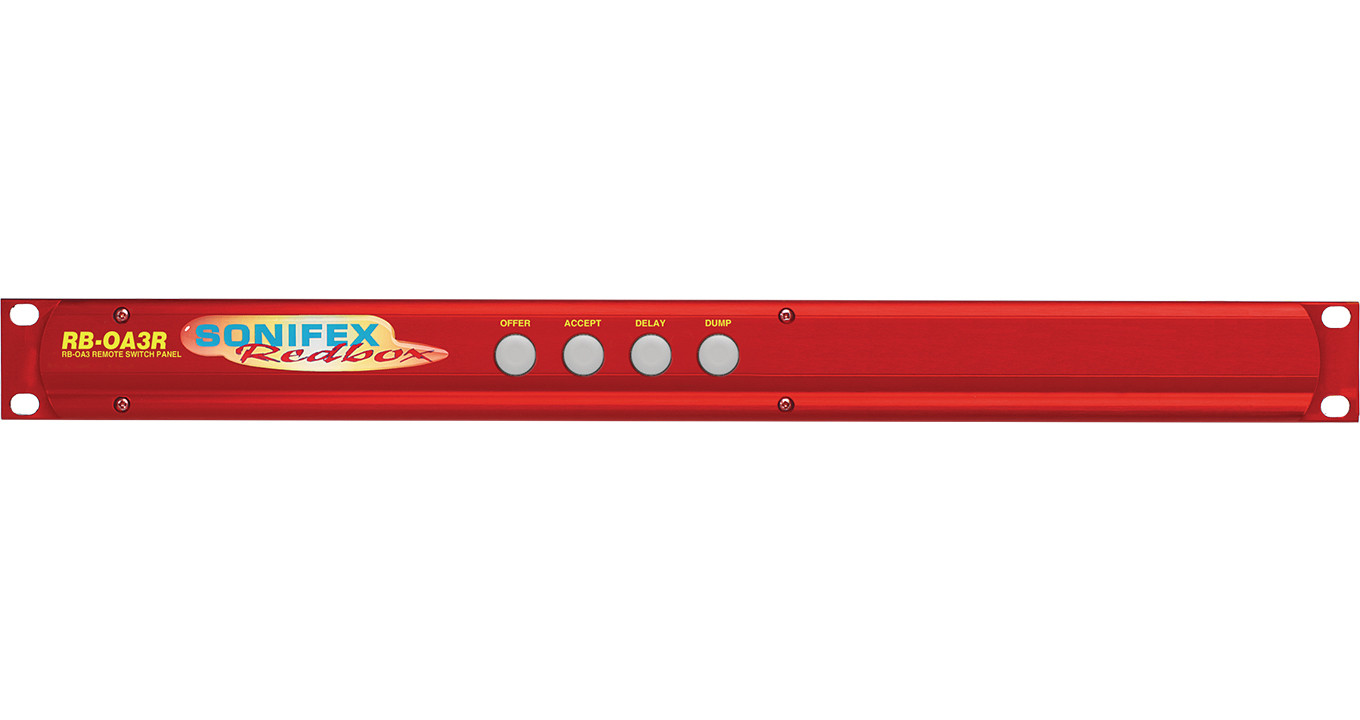

It contains four buttons which are used to control the functions of the RB-OA3. Each front panel push button is illuminated by coloured LEDs and controls the OFFER, ACCEPT, DELAY and DUMP functions.
Product Features
Studio-based remote control for RB-OA3 on-air switcher.
Powered from the RB-OA3 unit.
Allows the RB-OA3 unit to be situated in the main control room.
Illumination of selected button showing status.
Typical Applications
Product Category
Source SelectorsTECHNICAL SPECIFICATIONS
Connections | |
|---|---|
| Studio Control: | 1 x 15 way D type plug (male) |
Equipment Type | |
| RB-OA3R | 1 Studio on-air switcher |
Physical Specification | |
| Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) |
| Dimensions (Raw): | 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 53cm (W) x 20.5cm (D) x 6cm (H) |
| Dimensions (Boxed): | 21” (W) x 8” (D) x 2.4” (H) |
| Weight: | Nett: 1.2kg Gross: 1.8kg |
| Weight: | Nett: 2.6lbs Gross: 4lbs |
SUPPORT
| RB-OA3R Handbook | [Download] |
