RB-DS2R

Remote Switch Panel For RB-DS2

The RB-DS2R is a remote panel for controlling up to 4 separate RB-DS2 units from a single 1U 19” rack-mount panel.

RK3_logo-optimized

About RB-DS2R

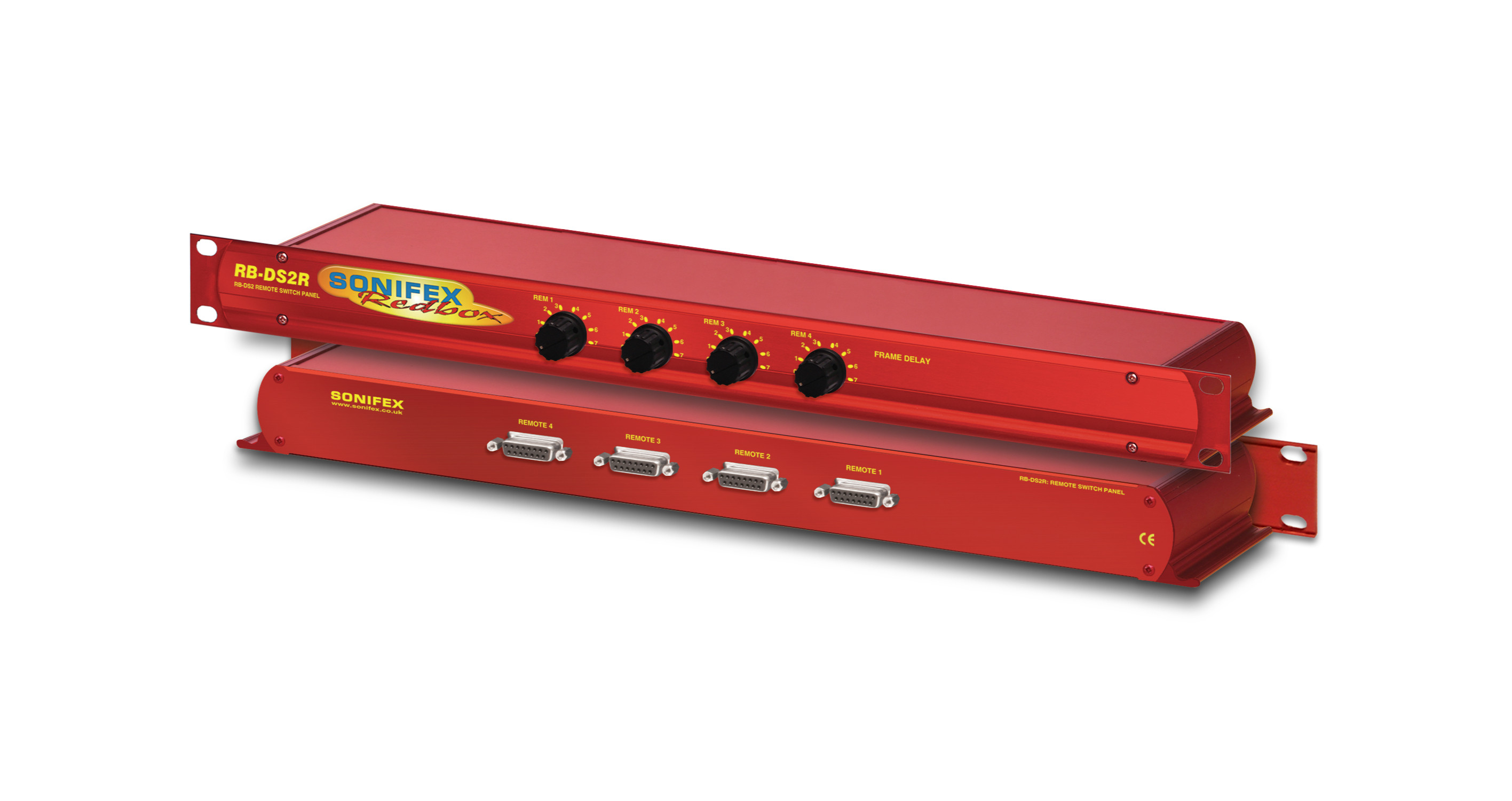

The RB-DS2R is a remote panel for controlling up to 4 separate RB-DS2 units from a single 1U 19” rack-mount panel. The unit has 4 rotary switches, each with 8 available selections numbered 0 to 7, used for selecting the delay time in frames. On the rear of the unit are 4 x 15-way D-type connectors used for connecting directly to the remote input of 4 x RB-DS2 units. The RB-DS2R is a passive unit (no power supply required).

Typical Applications

Remote control of multiple RB-DS2 units from another location, where quick delay time changes are needed.

Product Data

Technical Specifications

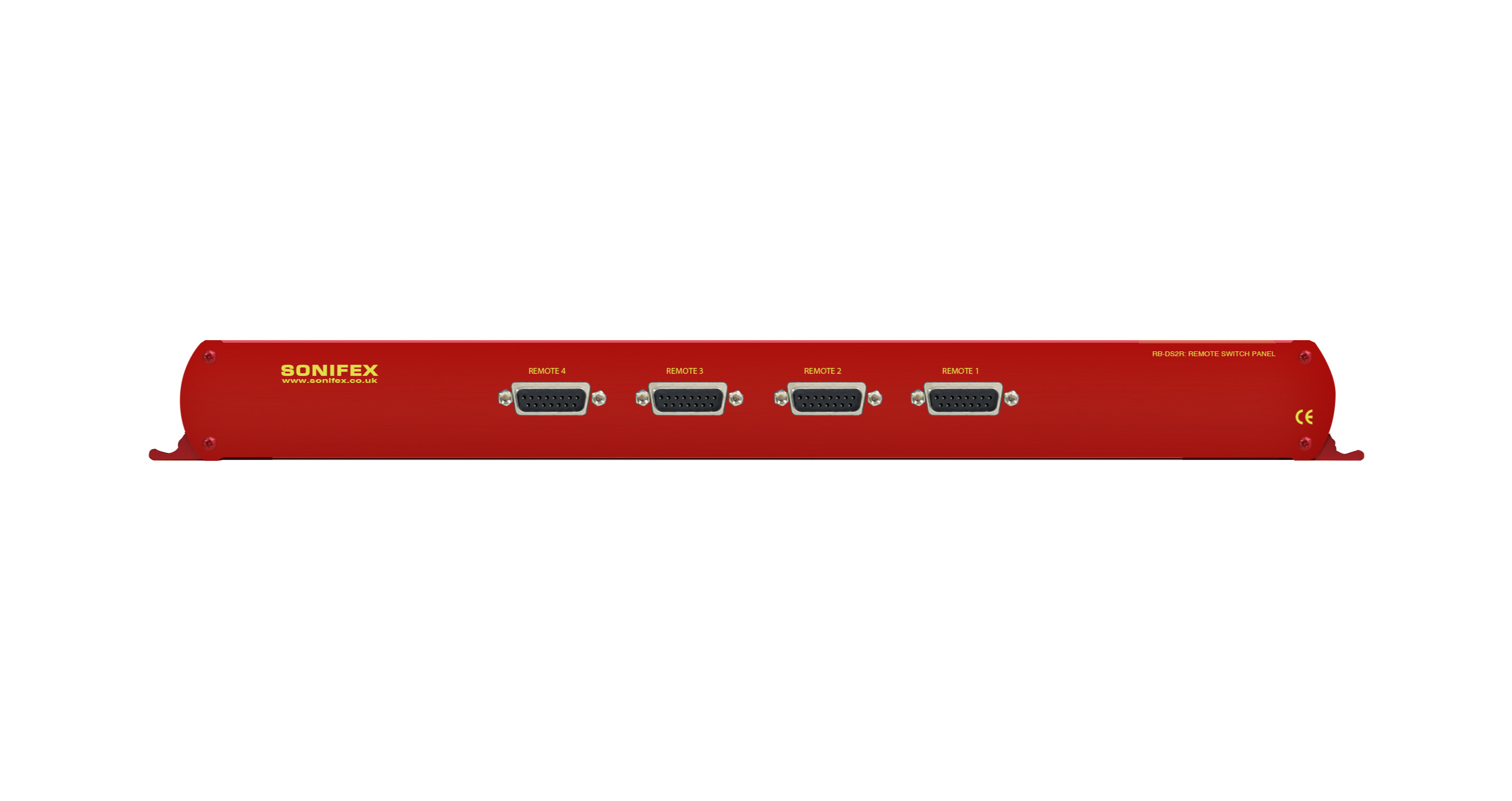

Rear Panel Connections
Remote I/O Port:
4 x 15-way ‘D’-type socket, 8 GPI outputs

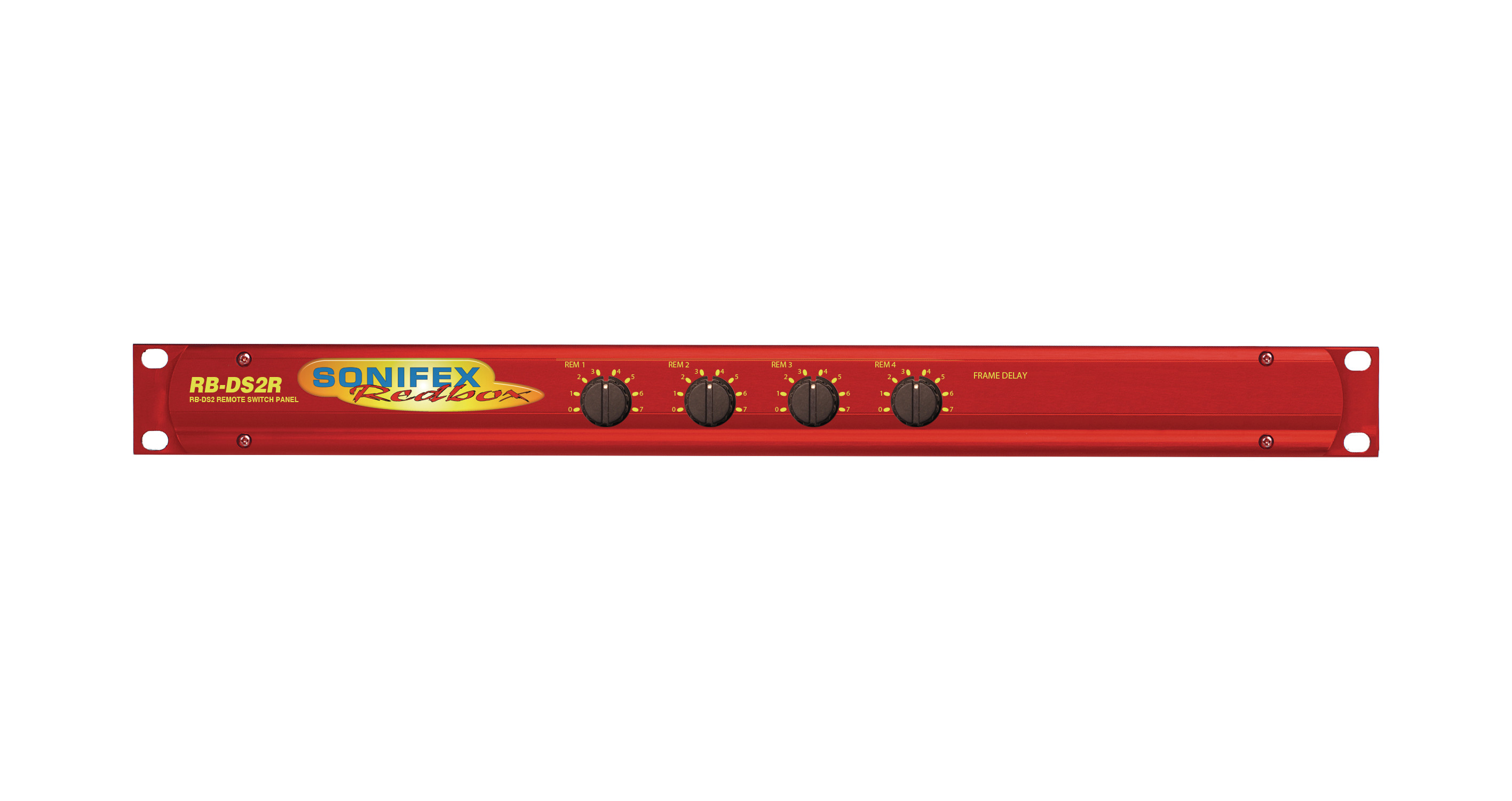

Front Panel Controls
Selector Switches:
4 x 8 way rotary selectors
Equipment Type
RB-DS2R:
Remote switch panel for 4 x RB-DS2
Physical Specification
Dimensions (Raw):
48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw):
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed):
58.5cm (W) x 22.5cm (D) x 7cm (H) (1U)
Dimensions (Boxed):
23” (W) x 8.9” (D) x 2.8” (H) (1U)
Weight
Nett: 1.2kg Gross: 1.6kg
Weight
Nett: 2.6lbs Gross: 3.5lbs
