PC-DIG4BC
DigiTorc 4 Breakout Cable, 4 Inputs, 4 Outputs
The PC-DIG4BC is a DigiTorc 4 Breakout Cable, 4 Inputs, 4 Outputs.
PC-DIG4BC
DigiTorc 4 Breakout Cable, 4 Inputs, 4 Outputs

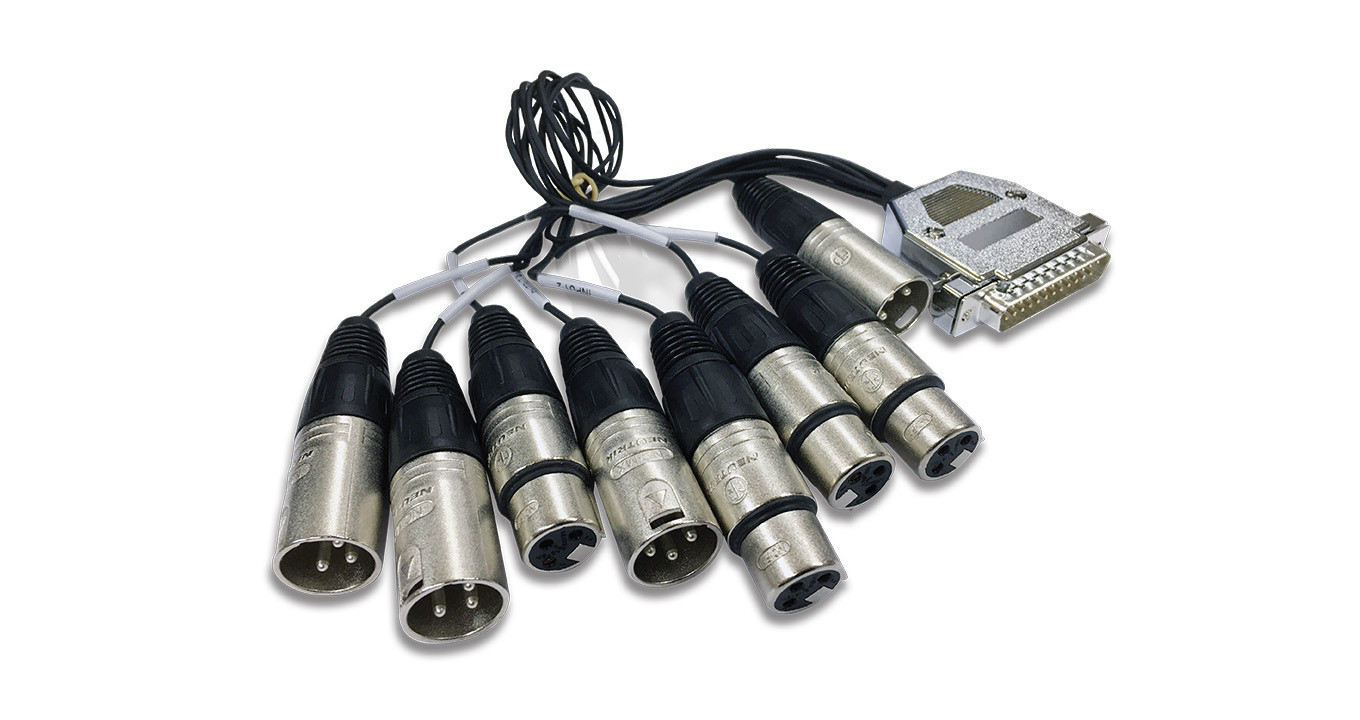

The PC-DIG4BC is a DigiTorc 4 breakout cable, 30cm in length, with 4 AES3 inputs and 4 AES3 outputs, using a 25-pin D-type connector to 8 x XLR connectors, with the following connections:
25 pin D-type plug (male) to:
4 x stereo digital audio line inputs on 4 x XLR sockets (female).
4 x stereo digital audio output on 4 x XLR plugs (male).
Product Features
25 pin D-type plug (male) to:
4 x stereo digital audio line inputs on 4 x XLR sockets (female).
4 x stereo digital audio output on 4 x XLR plugs (male).
Typical Applications
Audio workstations, automation systems, audio logging, multi-channel playout.
Product Category
Radio Capture and Sound Cards AccessoriesTECHNICAL SPECIFICATIONS
Physical Specification | |
|---|---|
| Dimensions (Raw): | 31cm Cable (L) |
| Dimensions (Raw): | 12.2" Cable (L) |
| Weight: | Nett: 0.3kg |
| Weight: | Nett: 0.66lb |
