EXP-AI8

8 Analogue Input Expansion Card

Adds 8 balanced analogue audio inputs via AES-59 25-pin D-type connectors, with loop-through outputs for easy distribution. Fully integrated into the internal routing grid. Available factory-fitted or as a retrofit to the RM-X-64-DNT or the RM-X-64-RAV.

About EXP-AI8

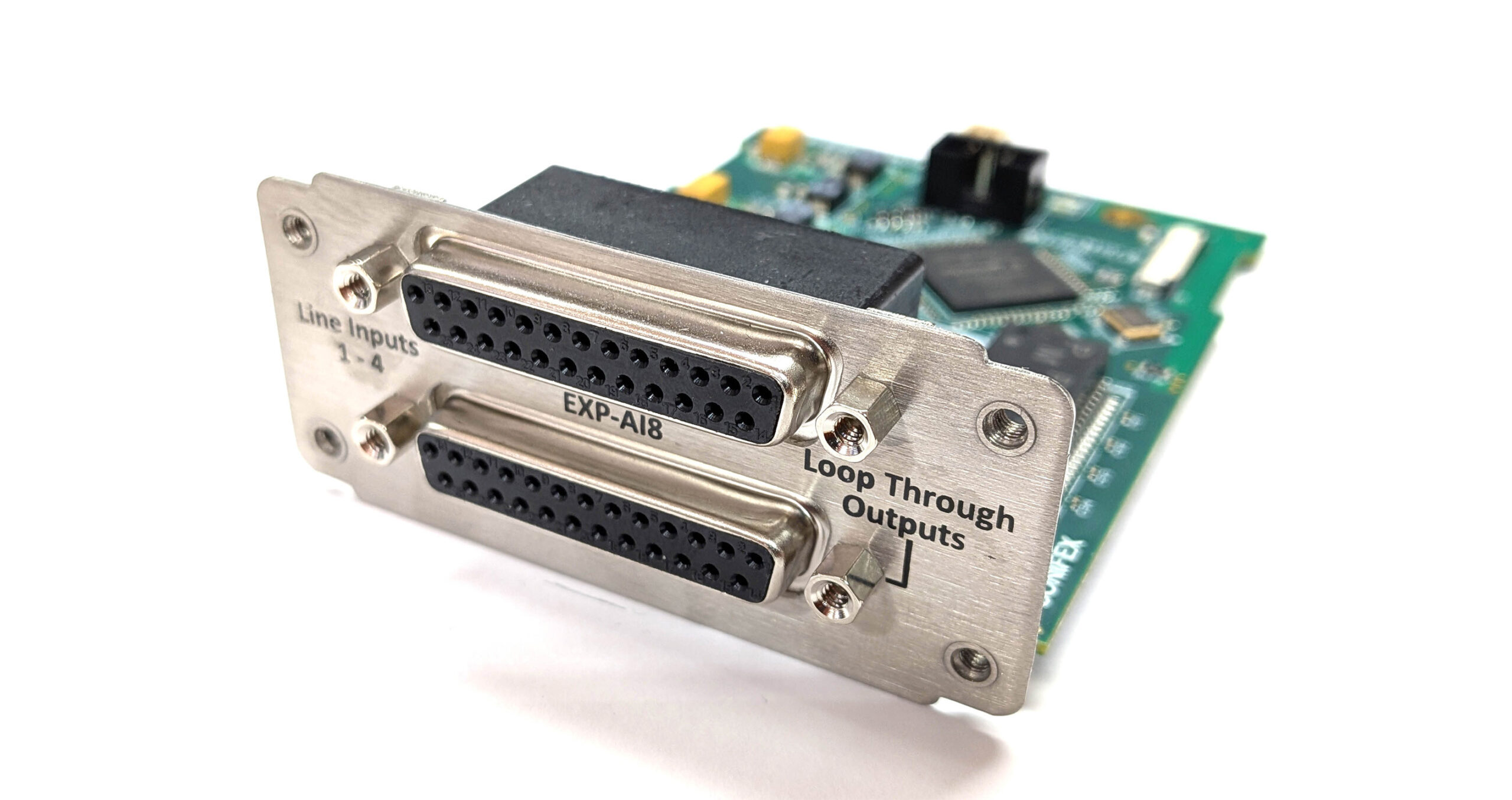

This expansion module provides eight channels of high-quality analogue audio input via a single 25-pin D-type connector, using the AES-59 standard pinout for straightforward integration with professional audio systems. A second 25-pin D-type socket offers loop-through outputs for all channels, allowing the incoming signals to be passed on to additional equipment without the need for external distribution hardware.

Once installed, all eight analogue inputs are automatically made available within the unit’s internal routing grid, accessible via the integrated web server. This enables flexible assignment and control of audio sources, making it easy to incorporate external analogue signals into your monitoring or processing workflow.

The module can be supplied factory-fitted or retrofitted in the field, with a disassembly and reassembly process. It connects directly to the main board using the supplied 4-pin power cable and 30-pin FFC audio/control cable, ensuring a secure and reliable connection. This card offers a simple way to extend system capability while maintaining clean signal paths and professional connectivity standards.

Typical Applications

Ideal for use in outside broadcast (OB) vehicles, where space is at a premium, this module enhances a compact, high-density, mission-critical monitoring hub with additional analogue audio inputs. Its integration allows external analogue sources to be easily brought into a single control point, supporting the audio supervisor in managing multiple signals efficiently. It is equally suited to Master Control Room (MCR) environments, where reliable handling of diverse audio sources is essential. In this context, the module enables seamless incorporation of analogue feeds into workflows for signal quality control, playout coordination, and compliance monitoring, all within a centralised monitoring system.

Product Data

Technical Specifications

Line Input
Connector(s)
25 pin D-type socket (AES59)
Input Impedance
>20kΩ balanced
0dBFS line-up
+15dBu to +24dBu balanced (+18, +22 and +24dBu are handled in hardware, other values achieved in DSP)
Frequency Response
20Hz to 20kHz, +0/-0.2dB
THD+N
<-110dBFS, -30dBFS, 20Hz to 20kHz All input gain settings, 20kHz BW
Noise (Mic=EIN)
-110dBFS, 20kHz BW, Rs=200Ω
Crosstalk
<-100dB @ 1kHz
Common Mode Rejection
>70dB @ 1kHz, all input gain settings
Analogue Line Input/ Loop Through Output Pinouts: D-type
Pin 1
I/O 8+
Pin 2
I/O 8 GND
Pin 3
I/O 7-
Pin 4
I/O 6+
Pin 5
I/O 6 GND
Pin 6
I/O 5-
Pin 7
I/O 4+
Pin 8
I/O 4 GND
Pin 9
I/O 3-
Pin 10
I/O 2+
Pin 11
I/O 2 GND
Pin 12
I/O 1-
Pin 13
N/A
Pin 14
I/O 8-
Pin 15
I/O 7+
Pin 16
I/O 7 GND
Pin 17
I/O 6-
Pin 18
I/O 5+
Pin 19
I/O 5 GND
Pin 20
I/O 4-
Pin 21
I/O 3+
Pin 22
I/O 3 GND
Pin 23
I/O 2-
Pin 24
I/O 1+
Pin 25
I/O 1 GND
