Telephone Talkback

CM-TLL

Line Powered Telephone Line Listen Unit

The CM-TLL provides a low-loss interface to receive audio from a telephone line.

About CM-TLL

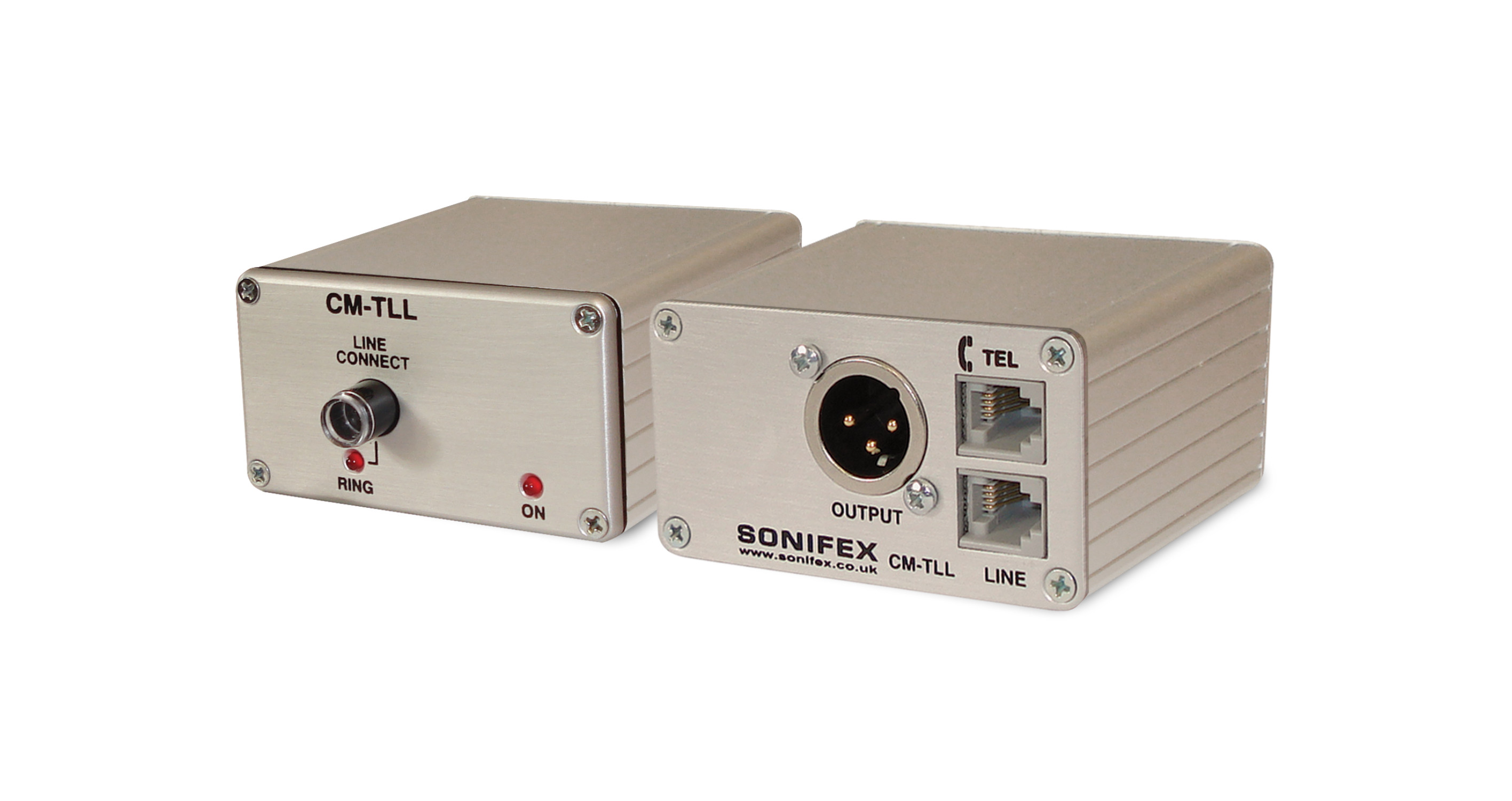

The CM-TLL provides a low-loss interface to receive audio from a telephone line. The line-powered unit is compatible with all analogue direct exchange lines and includes an LED indication of incoming calls. The unit is intended to be used with an earpiece amplifier to receive an audio feed by telephone from a studio. The line and telephone set are connected to the unit via the RJ11 connectors in order to make an outgoing call. A telephone may not be required if calls are only incoming, because telephone line ringing is indicated by a flashing LED built into the unit. In either case, the ‘LINE CONNECT’ switch is pressed to make the line connection. The ‘ON’ LED indicates that the unit is powered and that audio is routed from the line to the XLR plug.

Typical Applications

Remote caller feed into seminars, remote cue & feedback source.

Product Data

Technical Specifications

4-Wire Output
Output Impedance:
150Ω, transformer coupled
Output Connector:
3 pin XLR male connector
Output Level:
Typically 0dBU for average line level
2-Wire
Off Hook Voltage:
6V minimum

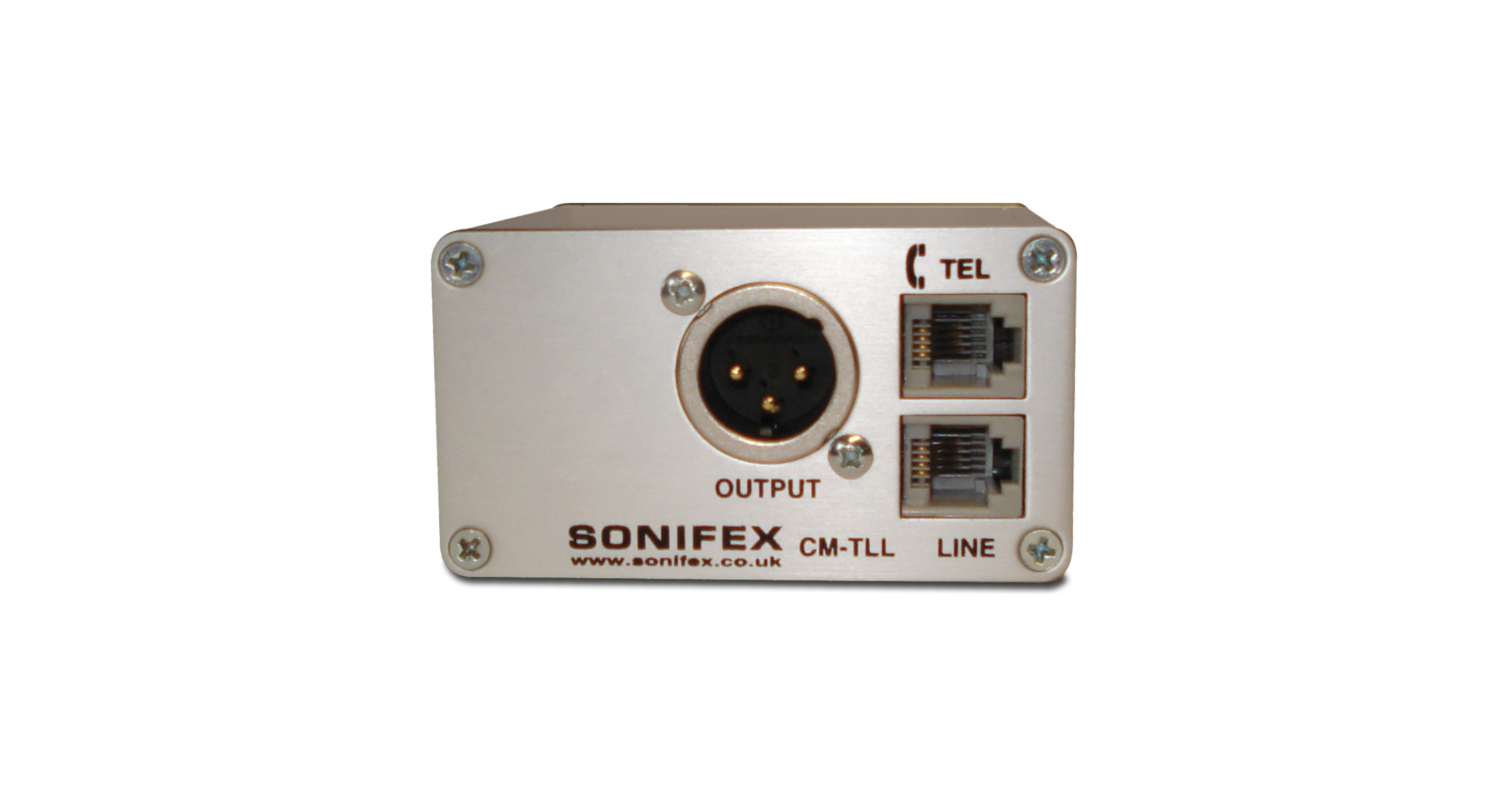

2 Wire Connectors:
RJ11 socket - line
2 Wire Connectors:
RJ11 socket - handset

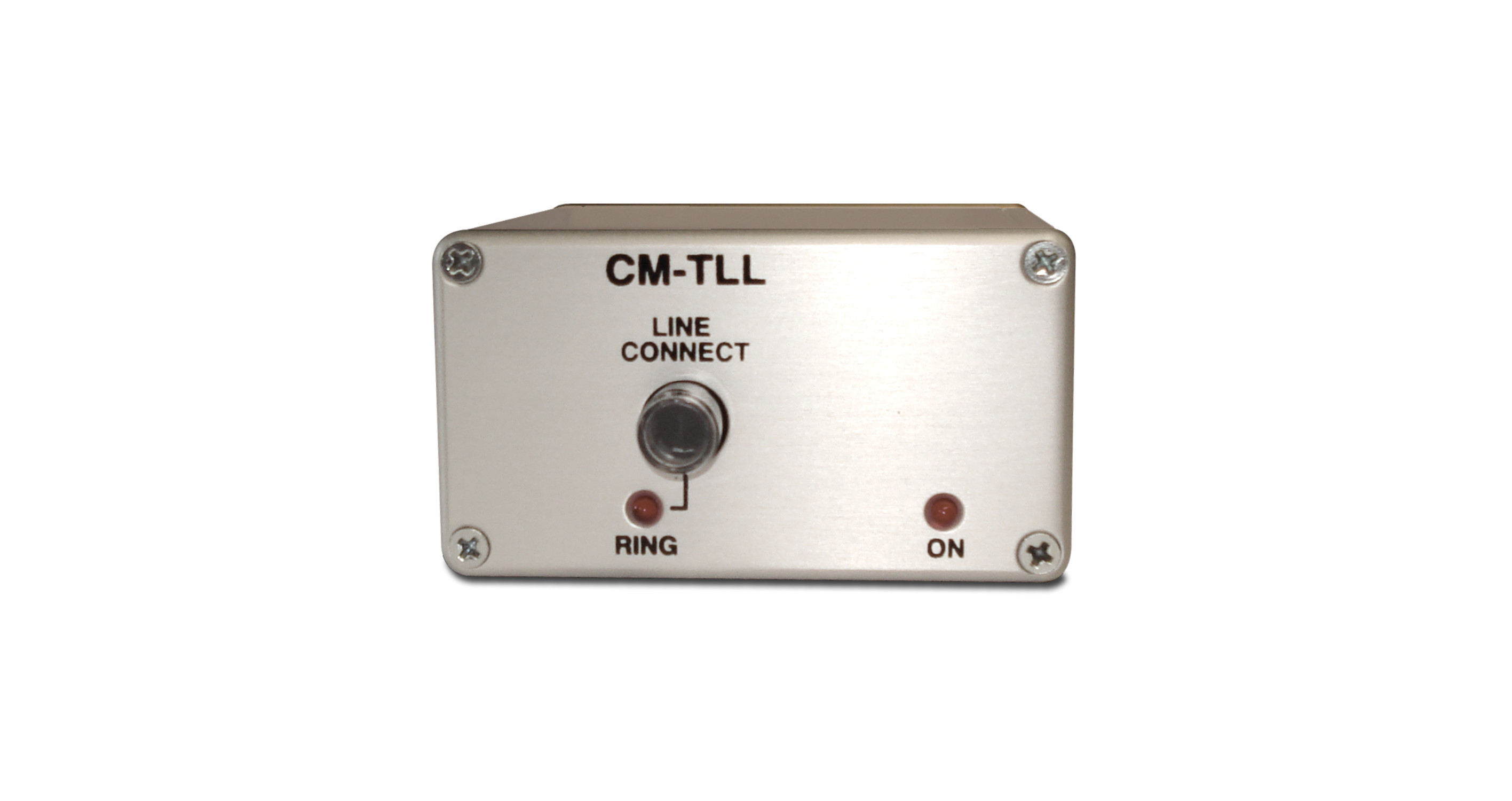

Front Panel Operational Controls
Line Connect:
Push button with indicator
Ring LED:
Indicates incoming ringing
On LED:
Indicates connection to the telephone line
Equipment Type
CM-TLL
Line powered telephone line listen unit
Physical Specification
Dimensions:
77mm (W) x 83mm (D) x 42mm (H)
Dimensions:
3.0” (W) x 3.3” (D) x 1.7” (H)
Weight:
Nett: 0.20kg Gross: 0.70kg
Weight:
Nett: 0.50lbs Gross: 1.6lbs
