Passive Converters

CM-LUR1

Balanced to Unbalanced Audio Converter

This product allows the connection of a stereo balanced line input via RJ45 with StudioHub+™ pinout to a stereo unbalanced output on stereo phono connectors.

Studiohub_logo-optimized

About CM-LUR1

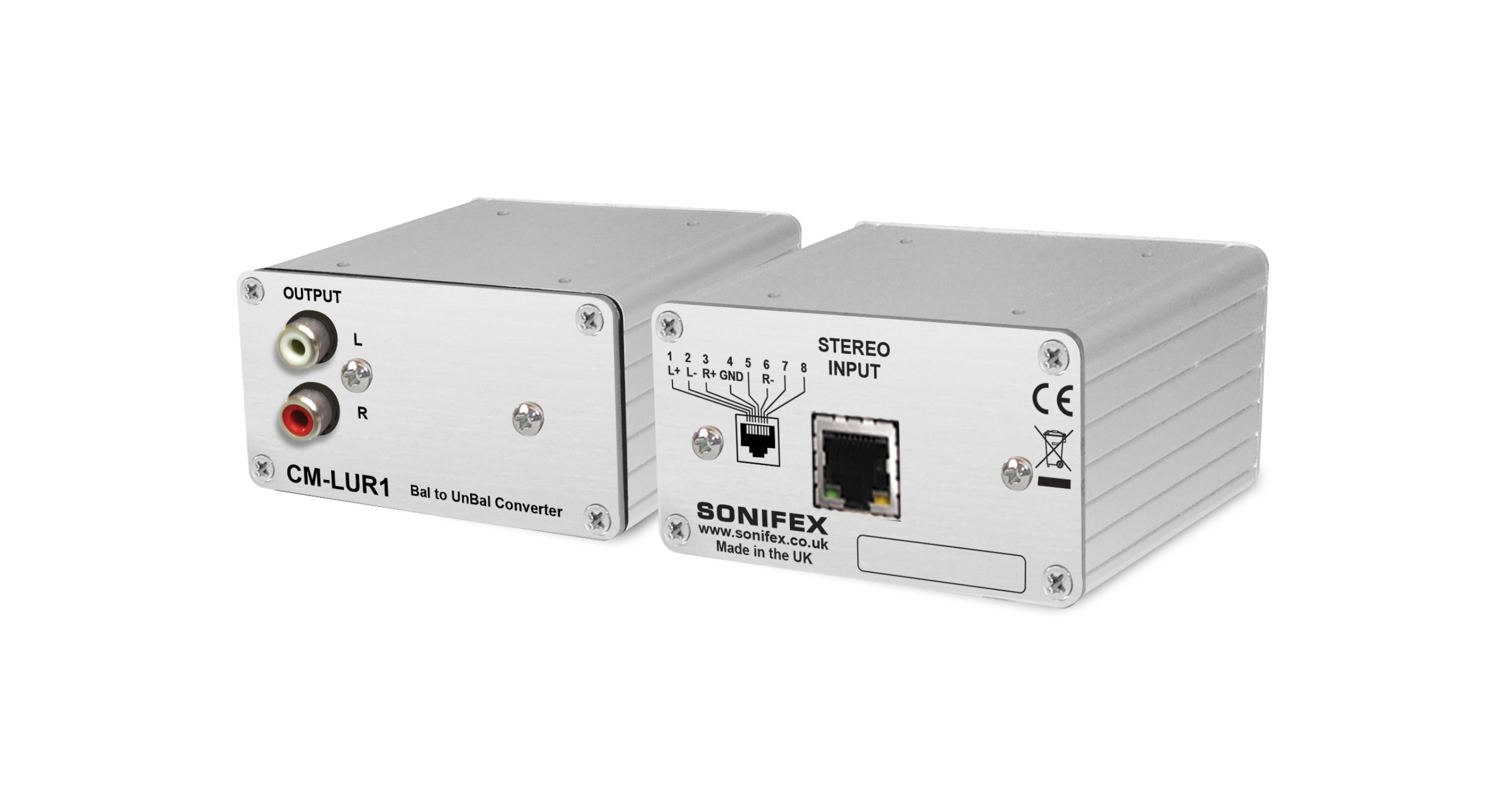

This product allows the connection of a stereo balanced line input via RJ45 with StudioHub+™ pinout to a stereo unbalanced output on stereo phono connectors. It is transformer balanced, with a 2:1 ratio, so 6dB of attenuation is added to the input to help interface with the lower signal levels associated with consumer outputs. This unit is a passive version of the RB-LU4 (though only 1 x stereo channel), and provides you with an alternative to having to interface a balanced output to an unbalanced input via specialist cables (either by shorting the non-phase to ground or disconnecting it). It is particularly useful where a shared balanced audio feed needs interfacing to an unbalanced input on one or more pieces of equipment. Using a CM-LUR1 or CM-LUX1 galvanically isolates the audio, allowing you to connect via phono cables to an unbalanced input without compromising the distributed feed.

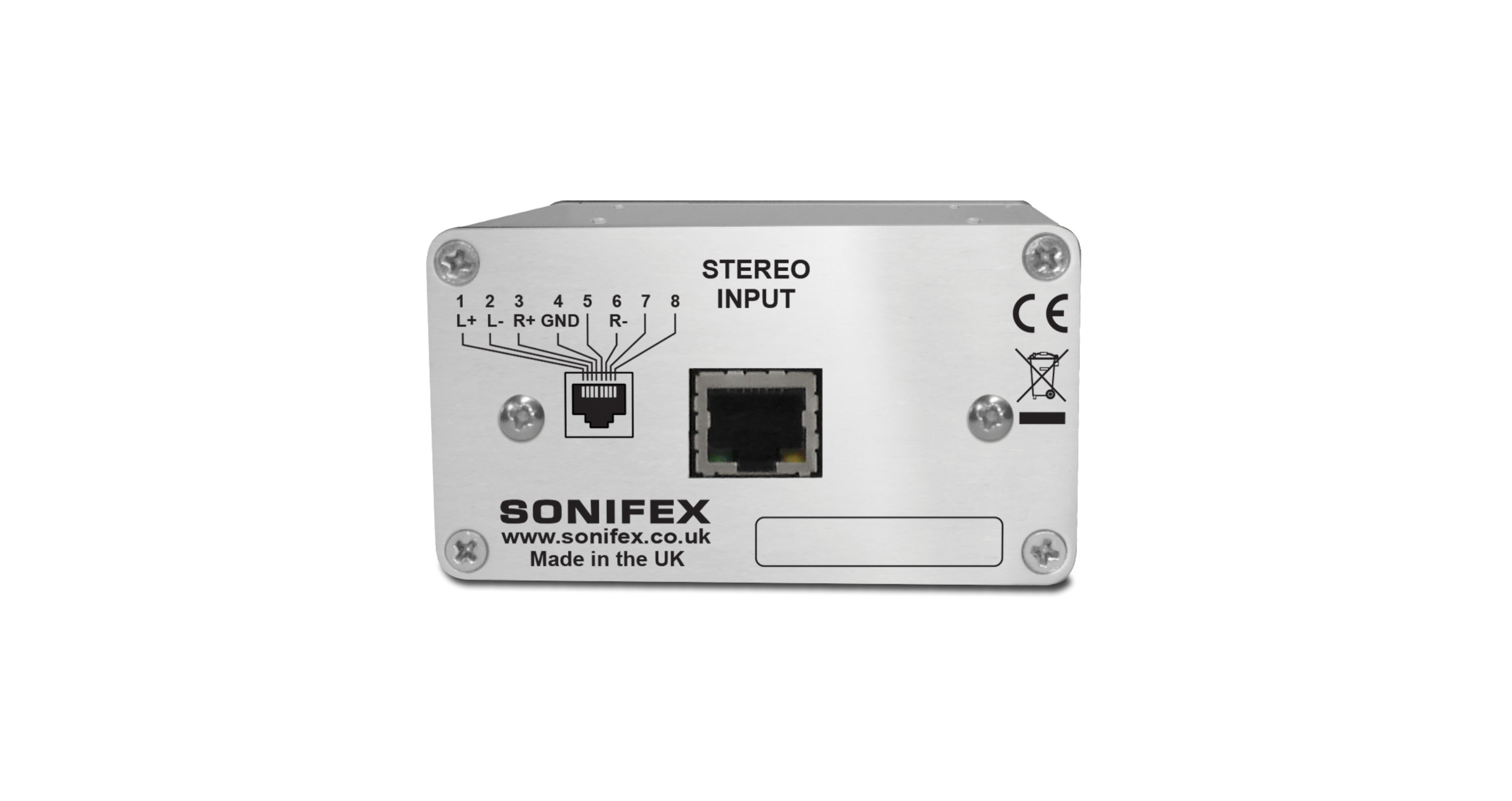

The stereo analogue input is on a female RJ45 connector with the following standard StudioHub+™ pin assignments:

Connection:
1 Left Phase.
2 Left Non-Phase.
3 Right Phase.
4 Ground.
5 N/C.
6 Right Non-Phase.
7 N/C.
8 N/C.

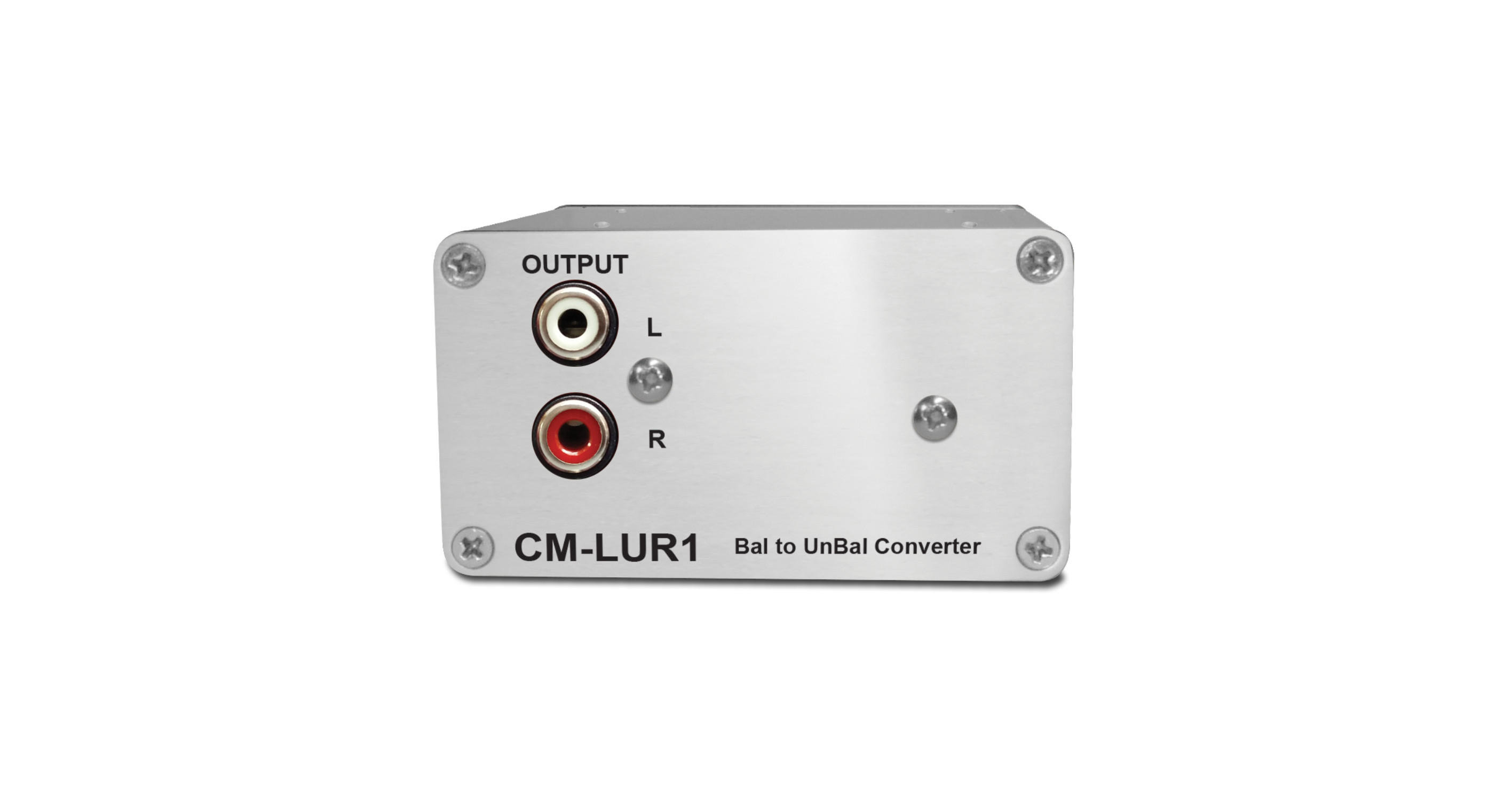

This unit uses a stereo unbalanced line output on a RCA phono connector with the following connections:

Pin Type – Connection:
White Tip: Left.
White Screen: Ground.
Red Tip: Right.
Red Screen: Ground.

Typical Applications

Creates a connection of a stereo balanced line input via RJ45 with StudioHub+™ pinout to a stereo unbalanced output on stereo phono connectors.

Product Data

Technical Specifications

Audio Specification
Input/Output Level Ratio:
02:01
Input/Output Impedance Ratio:
04:01
Max Input Level:
+28dBu
Max Output Level:
+22dBu
Frequency Response:
20Hz to 20kHz, +0/-0.5dB
Noise:
<-115dBu A-wgtd
Distortion Ref +8dBu (Output):
<0.01%
Common Mode Rejection:
>80dB
Connections
Balanced Line Input::
1 x RJ45 female StudioHub+™ pinout
Unbalanced Line Output:
2 x RCA phono connectors
Equipment Type
CM-LUR1:
Balanced to unbalanced audio converter, RJ45 input
Physical Specification
Dimensions (Raw):
7.7cm (W) x 8.3cm (D) x 4.2cm (H)
Dimensions (Raw):
3.0” (W) x 3.3” (D) x 1.7” (H)
Weight:
Nett: 0.22kg Gross: 0.33kg
Weight:
Nett: 0.49lbs Gross: 0.73lbs
