AVN-PX8X4C (Discontinued)

8 x 4 Channel Mix Engine, 24 Inputs, 16 Outputs, AoIP AES67

The AVN-PX8X4C is the heart of the presenter in-ear monitoring system, taking the AES67 streams and mixing them to the presenter and technician remote controllers.

WEB_logo-optimized AES67_logo-optimized Ravenna_logo-optimized Ember_logo-optimized

About AVN-PX8X4C

The presenter mixer system allows on-air presenters to adjust the audio levels fed to their radio or wired IEM systems, whilst also allowing Sound Control Room operators to adjust the levels remotely. The system consists of 3 types of unit all connected on a common Ravenna Audio over IP (AoIP) network with added audio sources derived from Ravenna based AoIP mixers or input portals. Setup and control can be provided via webpages and/or 3rd party applications. The system uses mono audio throughout. The 3 units are:

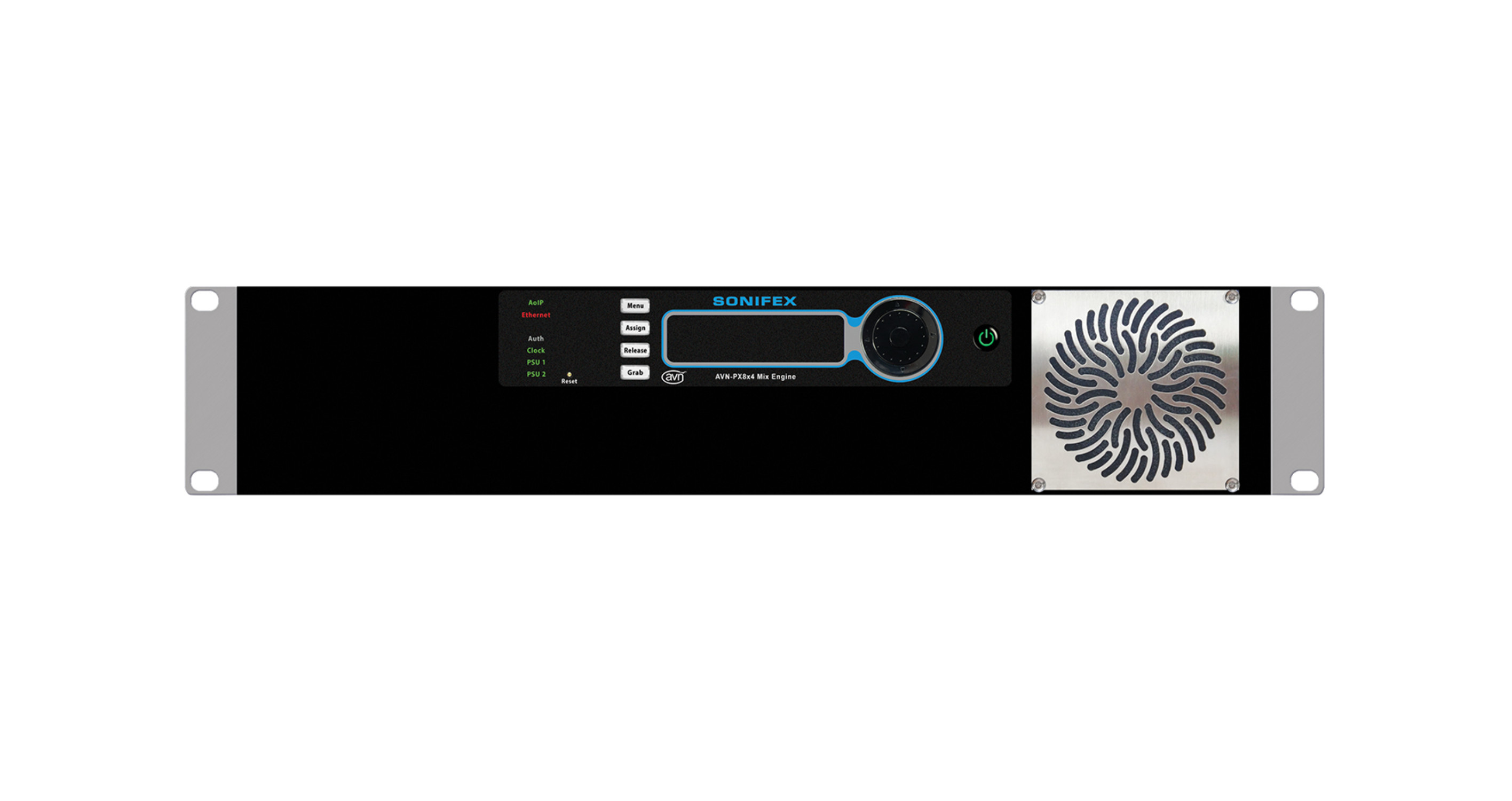

AVN-PX8x4C – a 2U rack mounted Mix Engine Rack.
AVN-MPPR – a small desk, or microphone stand, mounted Presenters’ Remote Unit.

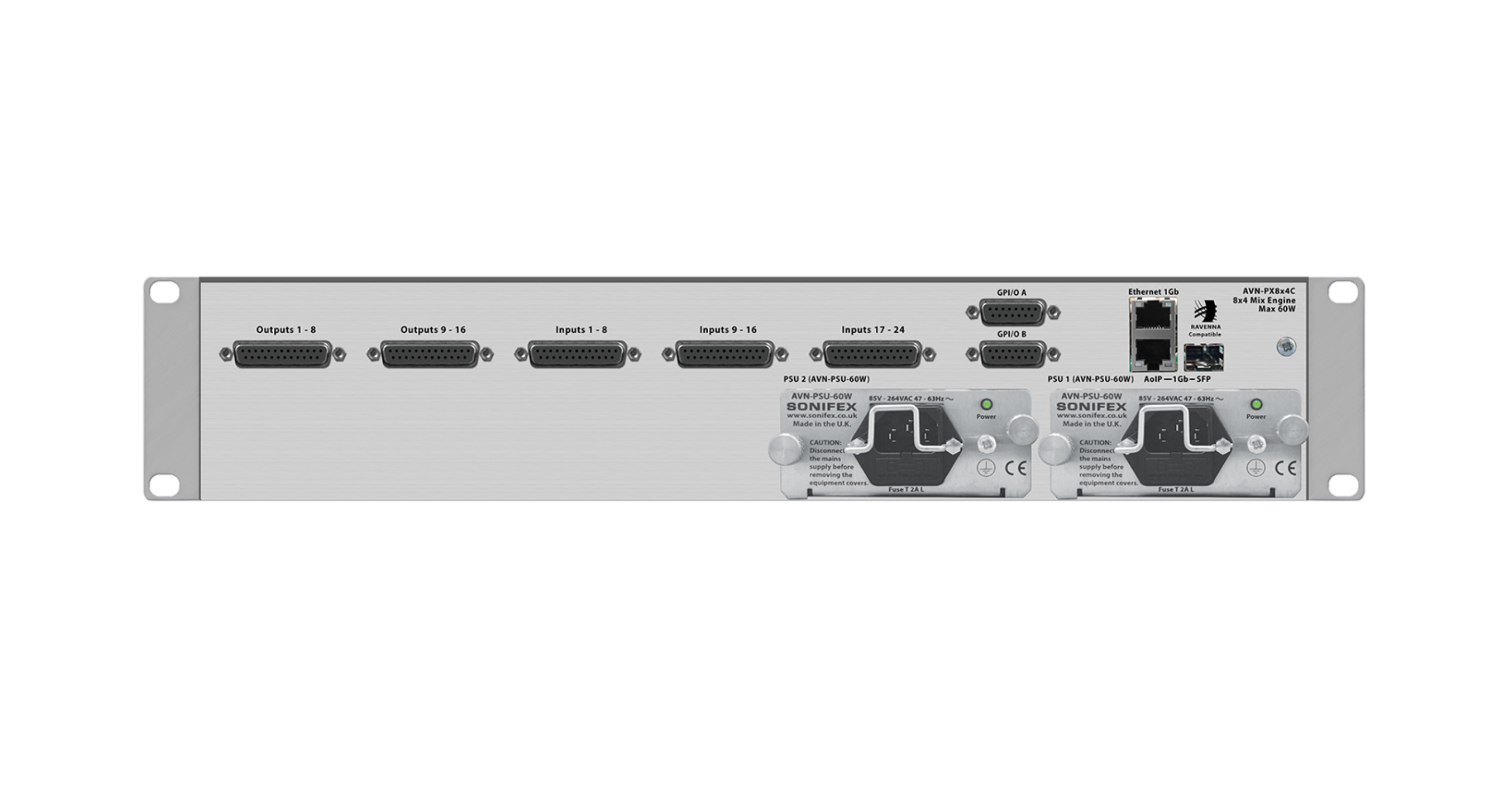

AVN-MPTR – a 1U rack mounted Technicians’ Remote Unit. The AVN-PX8X4C Mix Engine, as well as using AES67 audio streams, accepts 24 analogue mono input channels on 3 x DB25 connectors and output 16 analogue mono channels on 2 x DB25 connectors. Each mixer unit is able to create and control 8 virtual mixers, each capable of mixing any 4 sources (analogue or AoIP) to a single mixed output that is available locally at an output and via an AoIP stream (to the Presenter Unit and other destinations). The analogue audio line-up level will default to +18dBU = 0dBFS. A built-in webserver is used for configuration settings, input/output routing and for defining which Presenter and Technician Remote Units are assigned to the particular Mix Engine and Virtual Mixers. Up to 4 MPPRs can be assigned to each Virtual Mixer on a first-come first-served basis. It’s also possible that both MPTRs could also select the same VM so a maximum of 6 devices can control the mix levels of a VM. The Mix Engine will allow a maximum of 32 audio over IP input streams (each stream can be up to 8 channels). There are 8 virtual mixer outputs available. Each Virtual Mixer has 4 sources and 1 mixed output. There are also 2 more monitor outputs which play out the audio of the VM selection made on each of the 2 connected Technician Remote Units. The Mix Engine has dual universal AC power supplies which are hot-swappable in the event of failure and have a green LED to indicate within spec operation. The front panel has LED indications and GPOs to warn of power supply failure. There are also front panel LEDs for network and sync/clock failure. Category: AES67/Dante AoIP Products.
Product Function: The mix engine houses the hardware where the complex routing, mixing and DSP functions are performed.
Typical Applications: Production galleries, control rooms and studios.

Typical Applications

The AVN-PX8X4C is the heart of the presenter in-ear monitoring system, taking the AES67 streams and mixing them to the presenter and technician remote controllers.

Product Data

Technical Specifications

AVN-PX8x4C Audio Inputs – Gain setting 0dBFS = +18dBu unless otherwise stated
Parameter Line Input
Input Impedance:
>20kΩ balanced
0dBFS line-up:
+15/+18/+20/+22/+24dBu Balanced*
Frequency Response:
20Hz to 20kHz, +0/-0.2dB
THD+N:
<-110dBFS, -30dBFS, 20Hz to 20kHz, All input gain settings, 20kHz BW
Noise:
-110dBFS, 20kHz BW, Rs=200Ω
Crosstalk:
<-100dB
Common Mode Rejection:
>70dB @ 1kHz, All input gain settings
AVN-PX8x4C Audio Outputs – Gain setting 0dBFS = +18dBu unless otherwise stated
Parameter Line Output
Output Impedance:
<50Ω balanced
0dBFS line-up:
+15/+18/+20/+22/+24dBu Balanced*
Frequency Response:
20Hz to 20kHz, +0/-0.5dB
THD+N:
<-110dBFS, -30dBFS, 20Hz to 20kHz, All input gain settings, 20kHz BW
Noise:
-110dBFS, 20kHz BW, Rs=200Ω
*+18dB, +22dB and +24dB are handled in hardware, +15dB and +20dB in DSP
AVN-PX8x4C Power – Dual redundant IEC 85 - 264VAC 47 – 63Hz Max 60W 2Amp Fused type T 2A L
Equipment Type
AVN-PX8X4C
8 x 4 Channel Mix Engine, 24 Inputs, 16 Outputs, AoIP AES67
Physical Specification
Dimensions: (Raw)
48cm (W) x 27cm (D) x 8.8cm (H) (1U)
Dimensions: (Raw)
19" (W) x 10.6"(D) x 3.5" (H) (1U)
Dimensions (Boxed):
59cm (W) x 49cm (D) x 38cm (H)
Dimensions (Boxed):
23" (W) x 19" (D) x 15" (H)
Weight:
Nett: 5.7kg Gross:7.2kg
Weight:
Nett: 12.5lbs Gross:15.8llbs
