AVN-FM-DNT
8 Stereo Station FM Tuner to Dante
The AVN-FM-DNT brings FM radio directly onto a Dante® or AES67 audio-over-IP network, allowing up to 32 individually selectable FM stations to be received, monitored and routed as network audio sources. With dual network and PoE redundancy, remote configuration and RDS/RSSI monitoring, it provides a flexible solution for professional FM monitoring and distribution.
AVN-FM-DNT
8 Stereo Station FM Tuner to Dante
At a Glance
The AVN-FM-DNT provides a simple way to bring FM radio into a Dante® or AES67 audio-over-IP network. Designed for professional broadcast environments and 24/7 operation, it receives FM broadcasts and streams selected stations as low-latency Dante® audio across the AoIP network.
With a single RF input and integrated FM tuner, the AVN-FM-DNT captures 8 stations as standard, with field-upgradable licensing available for up to 32 stations. Each station is presented as a dedicated Dante® audio source, allowing individual stations to be routed to monitoring systems, recorders, consoles, workstations and other networked audio devices without the need for multiple analogue connections.
Flexible FM Reception
The AVN-FM supports stereo or mono operation, with selectable 50 µs or 75 µs de-emphasis to suit different broadcast standards. A low-bandwidth mode is also available for noisier signals, helping maintain intelligible audio where reception conditions are less than ideal.
RF & RDS Monitoring

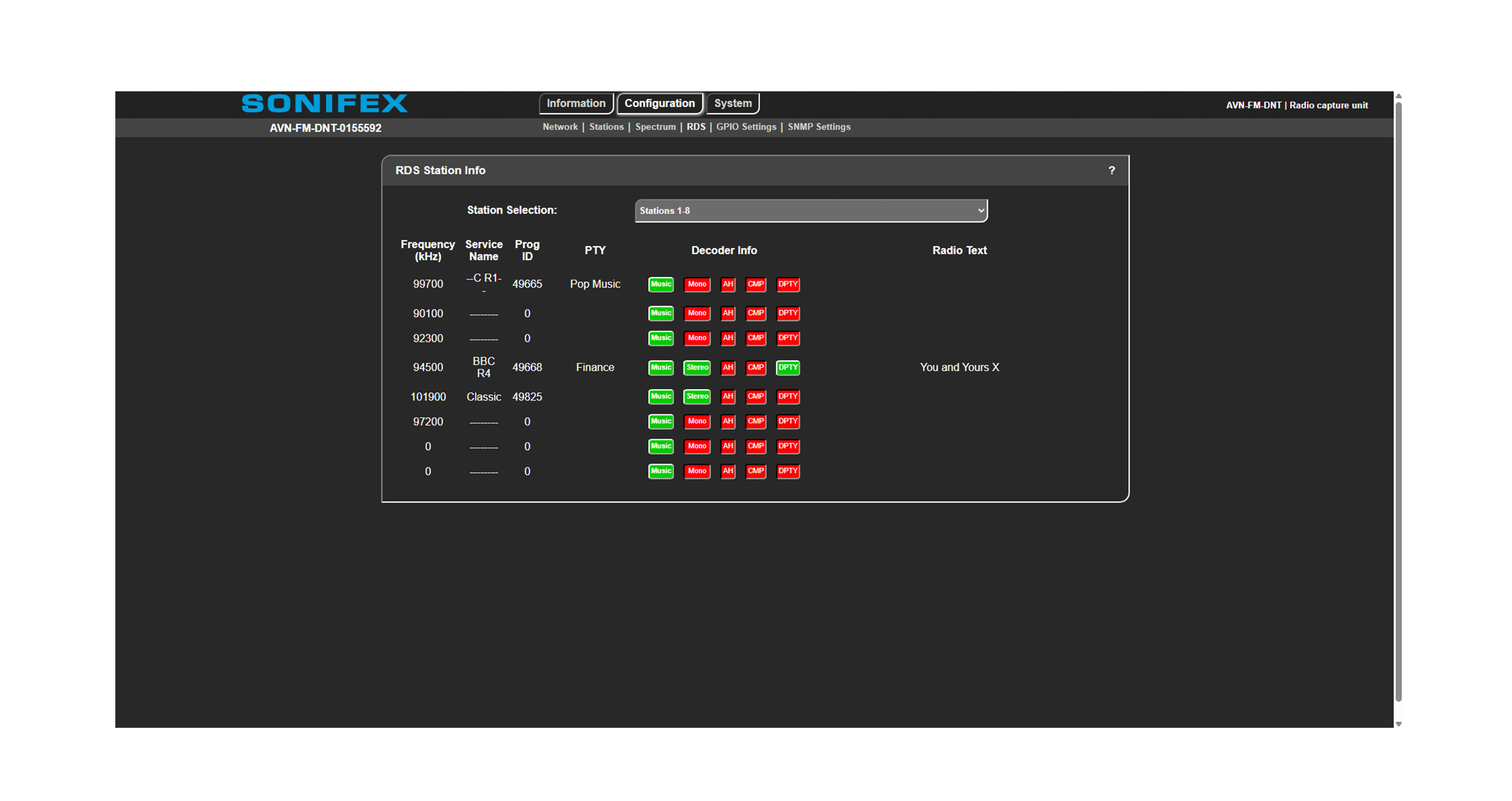

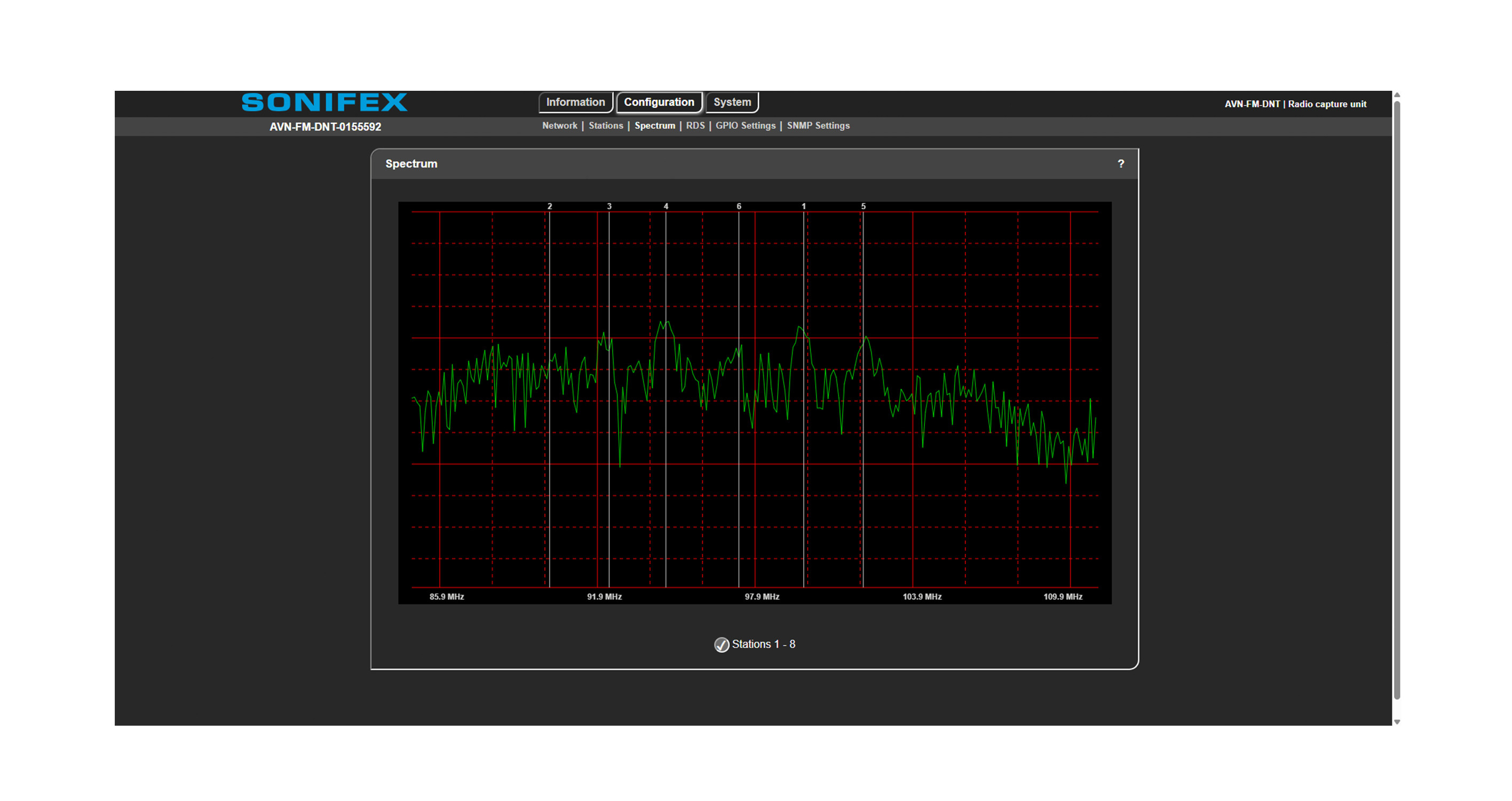

The built-in web interface provides RF signal strength (RSSI) monitoring and RDS decoding, with both RSSI and RDS data also available via Ember+ commands. A real-time RF spectrum display helps with antenna positioning and identifying interference or other signal issues.
Remote Configuration

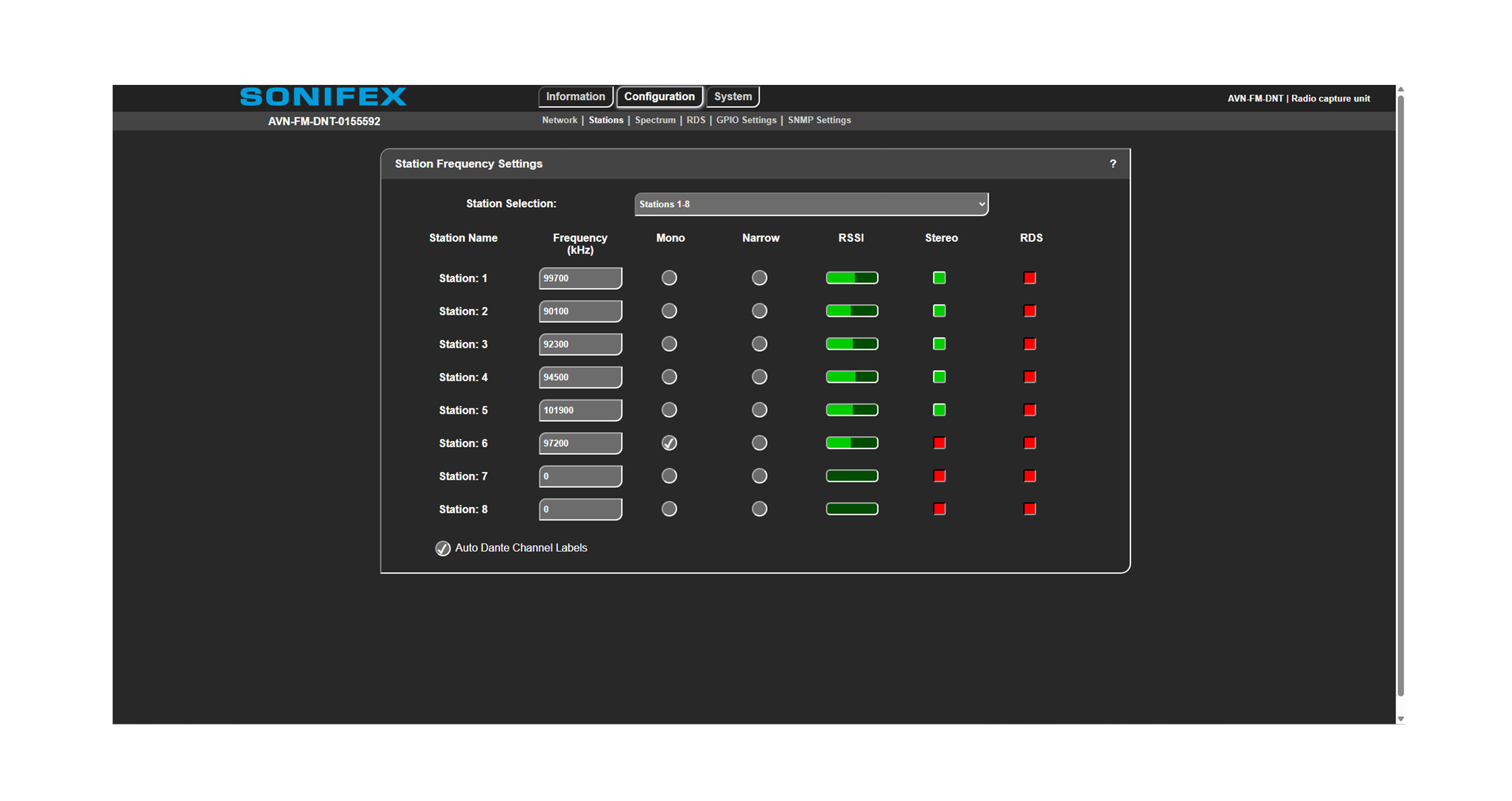

Configuration, routing and remote control are available through the built-in web interface, Dante Controller and Ember+. Station frequencies, operating modes, network settings, licensing and other system configuration can be managed remotely, with firmware updates also supported.
Power & Network Redundancy

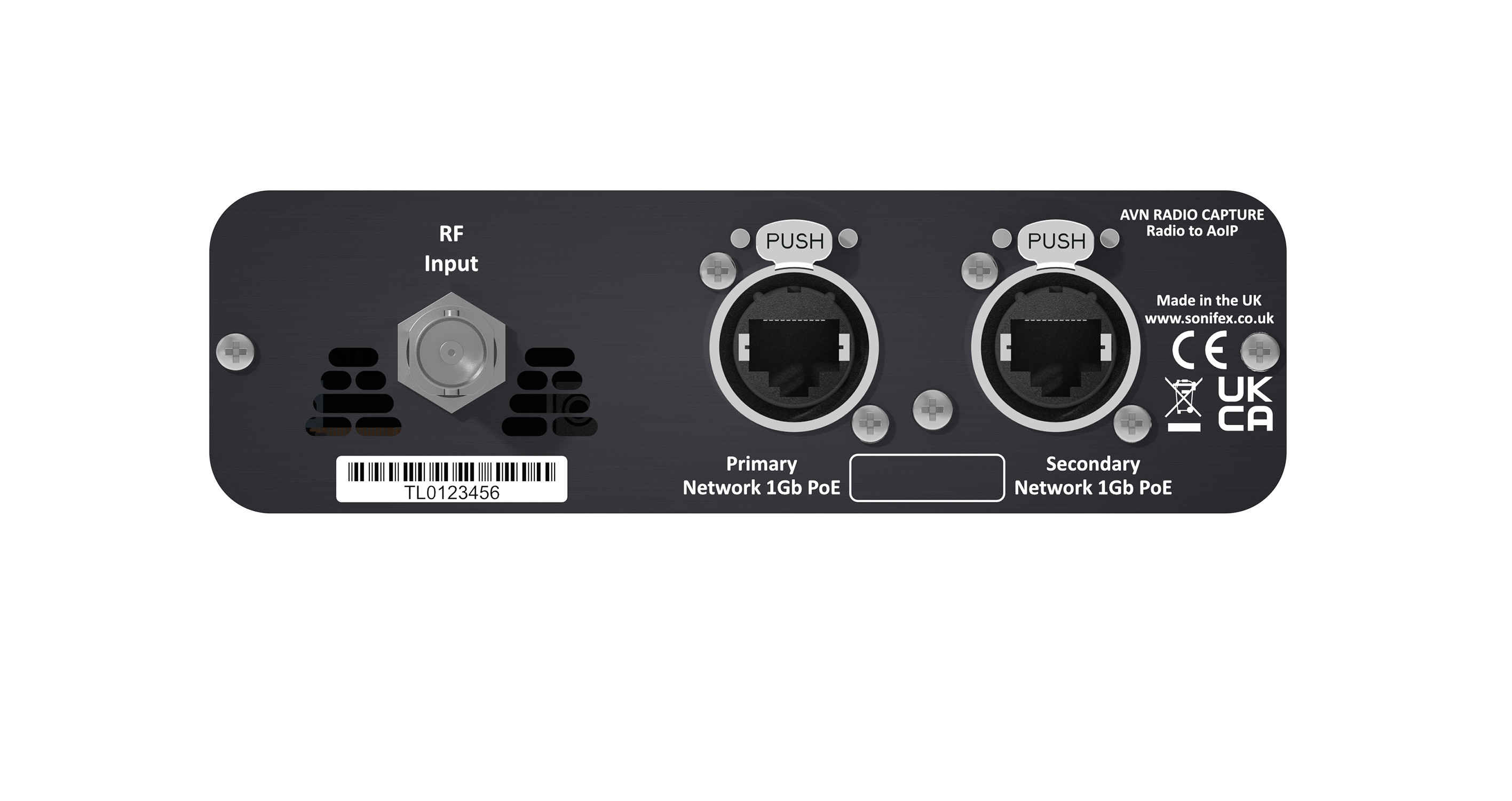

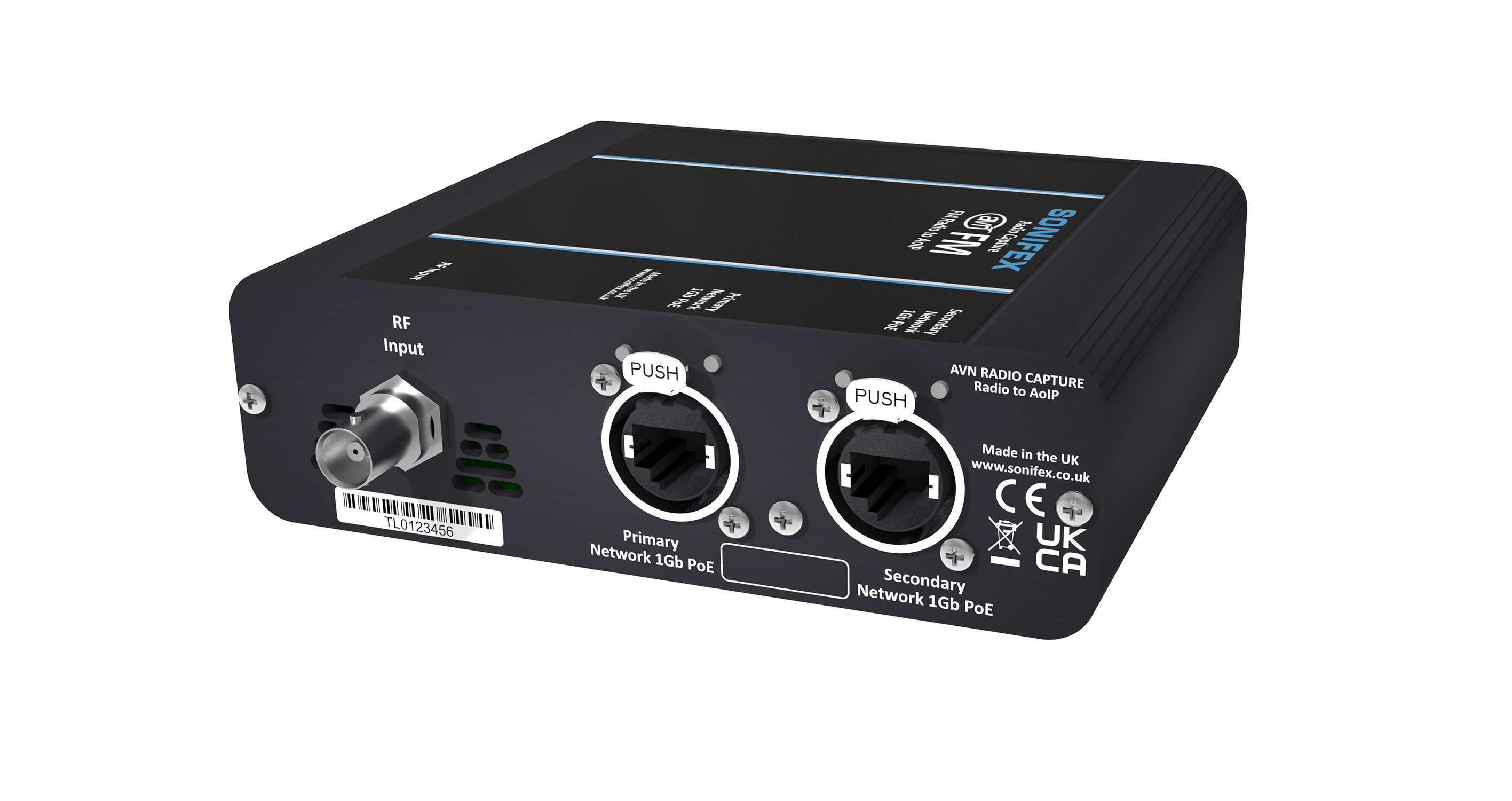

Dual EtherCON network connections provide full data and PoE power redundancy, delivering resilient network connectivity and power for continuous operation. Audio is delivered at a fixed 48 kHz sampling rate.
Product Features
Receive FM radio directly onto a Dante® or AES67 network.
Up to 32 individually selectable FM stations.
Factory-configured for 8 stations, with 16, 24 and 32 station licence options.
Two Dante® channels per station for simple routing.
Single RF input with integrated FM tuner.
Stereo or mono operation.
Selectable 50 µs / 75 µs de-emphasis.
Low-bandwidth mode for noisy signals.
Real-time RF spectrum monitoring.
RSSI monitoring and RDS data via the web interface, with RSSI and RDS data also available via Ember+.
Dual EtherCON connections with network and PoE redundancy.
Remote configuration via web UI, Dante Controller and Ember+.
Remote firmware updates and configuration management.
Fixed 48 kHz audio sampling rate.
Works with Bitfocus Companion.
Works with Sonifex DMC.
